Production Line
The wire mesh fence post making machine produces peach-shaped fence posts with continuous roll forming, tight roller seaming, and high-speed flying saw cutting for efficient mass production.
- Tight and stable seaming
- Clean burr-free cutting
- Continuous non-stop production
We customize the production line configuration for different wire mesh fence post designs, sizes, thickness ranges, punching patterns, and production speed requirements.
Ideal for fence manufacturers, infrastructure contractors, agricultural fencing suppliers, and customers requiring stable high-volume production of peach-shaped wire mesh fence posts.
1. Flow Chart
Decoiler → Guiding → Roll forming machine → Seaming device → Flying saw cut → Out table
| 2. Basic Specifications of This Line | |||
| Speed | 15-20m/min,customizable | Operator Needed | 1-2 persons |
| Machine Frame | Wall panel | Driving System | Chains |
| Dimension | LWH 7*1.8*2m | Weight | 15T |
| Container | 1*40GP+(1*20GP) | Power Supply | Customizable |
| 3. Machine Components | |||
| Decoiler*1 | Roll forming machine*1 | Cutting unit*1 | PLC control cabinet*1 |
| Out table*2 | Tool box*1 | Spare parts | Seaming device*1 |
*For reference only; subject to the actual machines.
Profile Information
Wire mesh fence posts support welded mesh fencing systems. Their peach-shaped design improves strength, appearance, and wind resistance while supporting multiple fence heights and installation requirements.
These profiles usually use 1.0-2.5mm galvanized steel or pre-coated steel coils for corrosion resistance, outdoor durability, structural stability, and long-term fencing performance.
How Does The Roll Forming Machine Work?
Machine Details
Steel Coil Decoiler
Steel coil decoiler is used to unwind metal coils smoothly for feeding into roll forming, cutting, or punching processes.
Manual decoiler is a basic and economical option, while motorized and hydraulic decoilers are also available for higher efficiency and automation:
| Power Type | Manual | Steel Coil Width | Max 1250mm |
| Loading Capacity | 5/7/10 Ton | Expanding Range | 460-50mm |

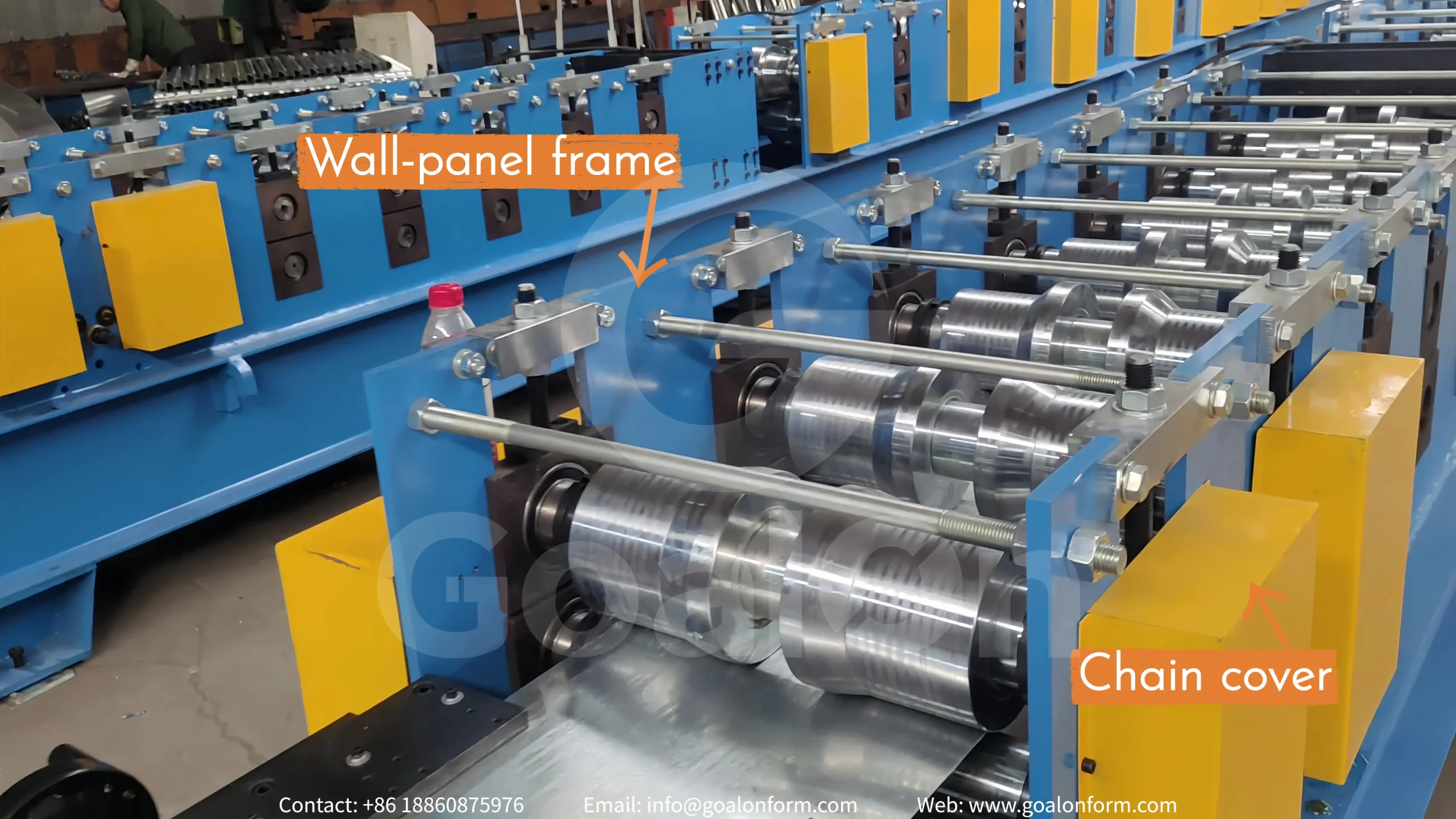

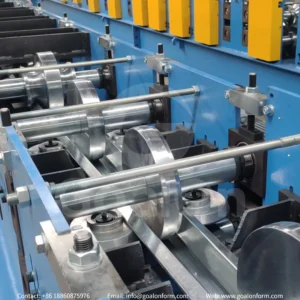

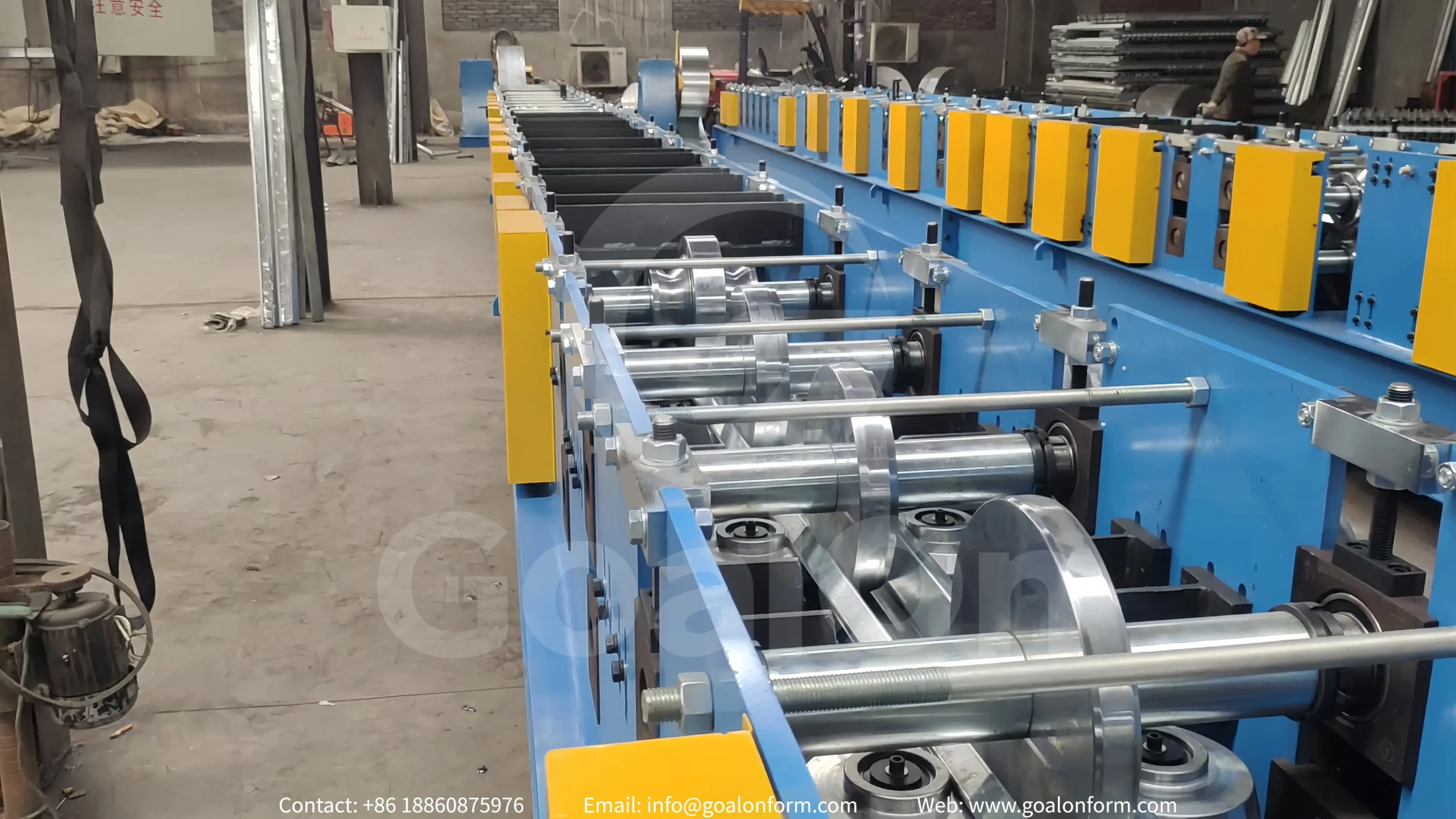

Roll Forming Machine
The wire mesh fence post roll forming machine gradually shapes flat steel coils into peach-shaped fence posts through multiple roller stations. The wall-panel frame structure provides stable forming performance, while chain transmission ensures reliable power delivery for continuous production.
| Speed | 20m/min | Forming Station | 18 Stands |
| Motor Power | 7.5Kw | Shaft Diameter | 76mm, solid |
| Driving System | Chain | Roller Material | Gcr15,HRC58-62° |
| Frame Structure | Wall panel | Shaft Material | 40Cr heat treatment |

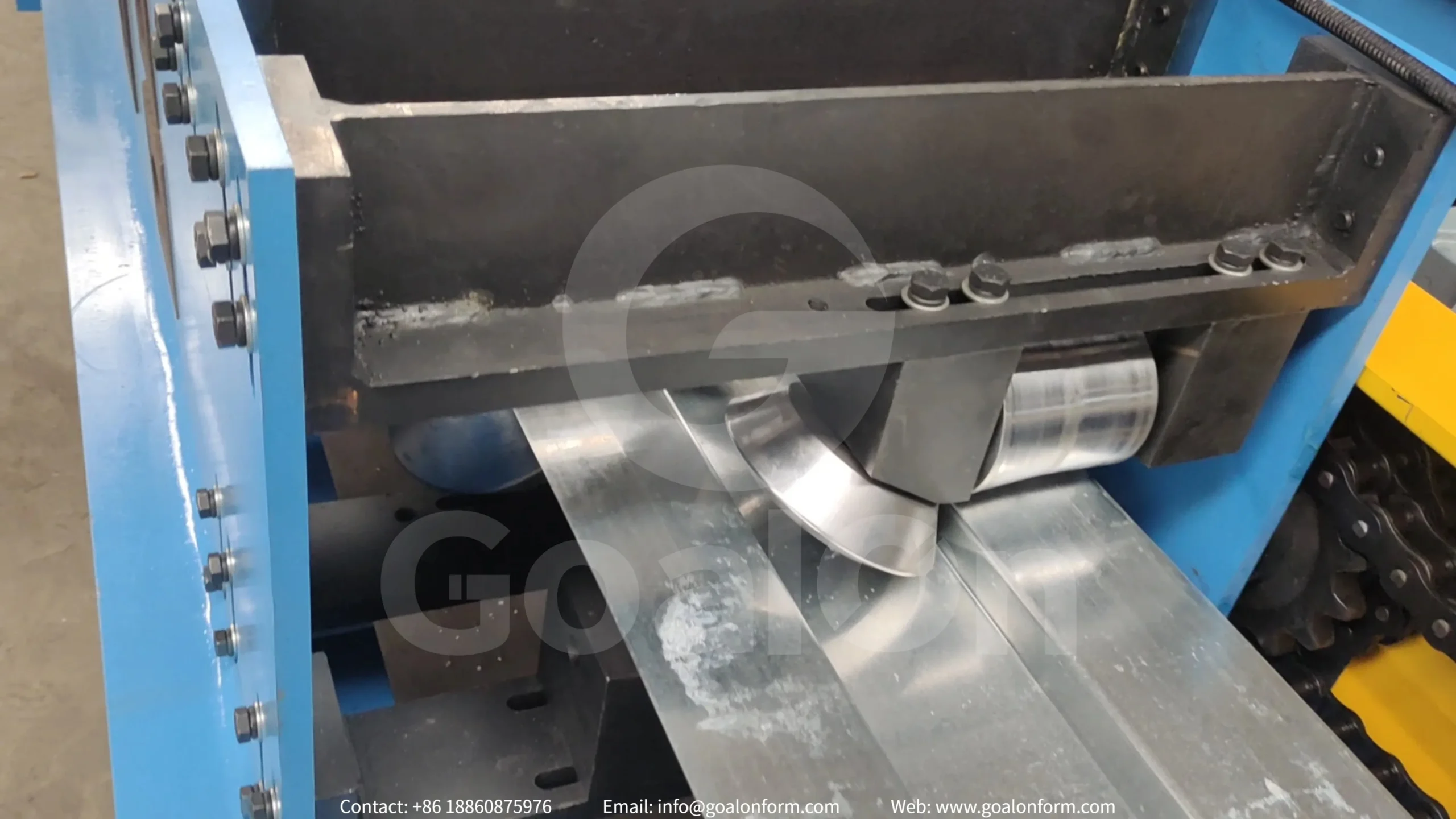

Seaming device
The roller seaming device tightly locks the profile edges through customized seaming rollers.
Its rolling extrusion method allows continuous material movement during seaming, helping maintain stable production speed, smooth profile connection, and consistent structural strength.

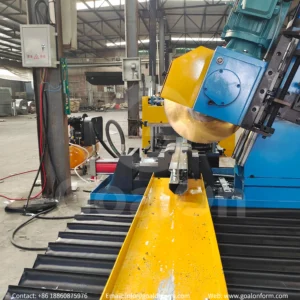

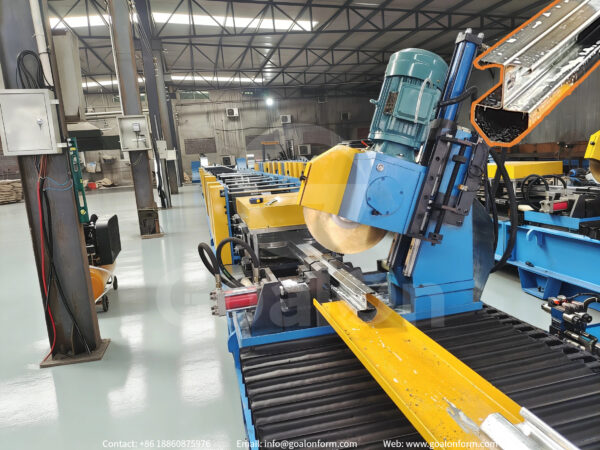

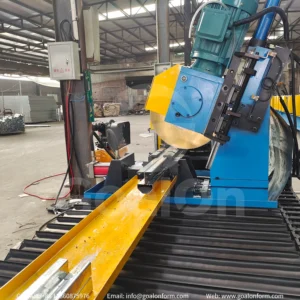

Flying saw cut
The flying saw cutting unit performs continuous non-stop cutting with clean cutting surfaces and minimal material waste. During cutting, the saw unit synchronizes with the roll forming speed, creating relative stability between the cutter and moving profile for accurate length control and smooth production flow.
Safety Designs
Chain covers are installed to protect operators and extend chain service life. Full-machine mesh covers (slidable) provide visibility with safety. Flip-type covers ensure convenient access with enhanced protection.
Safety signs are applied to continuously alert operators.
PLC Control Cabinet & Encoder
In a cold roll forming line, the encoder works with the PLC to provide real-time feedback on material position and speed, ensuring precise feed, synchronized forming, and accurate length control for cutting and punching.
Production speed, product length, and quantity can be set on the control cabinet. The display language can be customized according to customer requirements.
Other Customization Details
The machine comes standard with a blue main color and orange accents. Other colors can be customized free of charge.
The default metal nameplate is Goalon, which can also be customized at no additional cost.
Basic Services
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Free customized manuals, operationvideos, installationvideos, and remote video supportare provided.
The standard configuration operates at 15–20 m/min. Higher-end configurations can reach 30–40 m/min, and even higher speeds can be customized according to specific production requirements.
Lead times range from 30-40 days post-order, varying by customization level and supplier location. We typically require 35 days for standard machines.
Yes. We are a professional manufacturer that produces both standard market profiles and customized profiles. We can also sign an agreement to ensure that your drawing will not be shared with other parties.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
