Production Line
This vehicle guide rail roll forming machine is designed for producing curved automotive guide rail profiles with stable forming accuracy, smooth bending performance, and reliable continuous production for heavy-duty punched steel materials.
We can customize the vehicle guide rail roll forming machine configuration according to different profile drawings, bending radius requirements, material thicknesses, punching layouts, and automotive production standards.
We can customize the vehicle guide rail roll forming machine configuration according to different profile drawings, bending radius requirements, material thicknesses, punching layouts, and automotive production standards.
1. Flow Chart
Decoiler → Guiding → Roll Forming Machine → Elbowing Machine → Out Table
| 2. Basic Specifications of This Line | |||
| Speed | 15-20m/min,customizable | Operator Needed | 1-2 persons |
| Machine Frame | Wall panel | Driving System | Chains |
| Dimension | LWH 7*1.8*2m | Weight | 15T |
| Container | 1*40GP+(1*20GP) | Power Supply | Customizable |
| 3. Machine Components | |||
| Decoiler*1 | Roll forming machine*1 | Cutting unit*1 | PLC control cabinet*1 |
| Out table*2 | Tool box*1 | Spare parts | |
*For reference only; subject to the actual machines.
Profile Information
Vehicle guide rail profiles feature a U-shaped section with curved geometry for guiding, supporting, or sliding applications in automotive structures and assembly systems. They are widely used in commercial vehicles, trailers, and special vehicle body components.
Common materials include galvanized steel, hot rolled steel, and high-strength steel. These curved automotive profiles are usually produced by a roll forming machine combined with an elbowing machine for continuous bending production.
How Does The Roll Forming Machine Work?
Machine Details
Steel Coil Decoiler
Steel coil decoiler is used to unwind metal coils smoothly for feeding into roll forming, cutting, or punching processes.
Manual decoiler is a basic and economical option, while motorized and hydraulic decoilers are also available for higher efficiency and automation:
| Power Type | Manual | Steel Coil Width | Max 1250mm |
| Loading Capacity | 5/7/10 Ton | Expanding Range | 460-50mm |

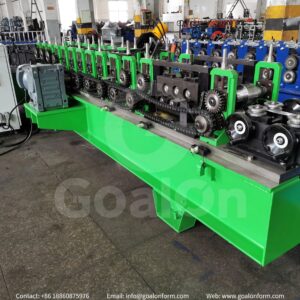

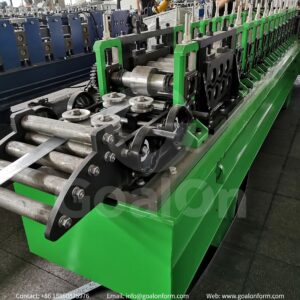

Roll Forming Machine
The roll forming machine adopts a cast-iron stand and chain driving system to ensure strong rigidity and stable transmission during heavy-duty production. Since the material is thick and pre-punched, this configuration helps maintain forming precision, stable hole positioning, and reliable long-term operation.
| Speed | 20m/min | Forming Station | 18 Stands |
| Motor Power | 7.5Kw | Shaft Diameter | 76mm, solid |
| Driving System | Chain | Roller Material | Gcr15,HRC58-62° |
| Frame Structure | Wall panel | Shaft Material | 40Cr heat treatment |

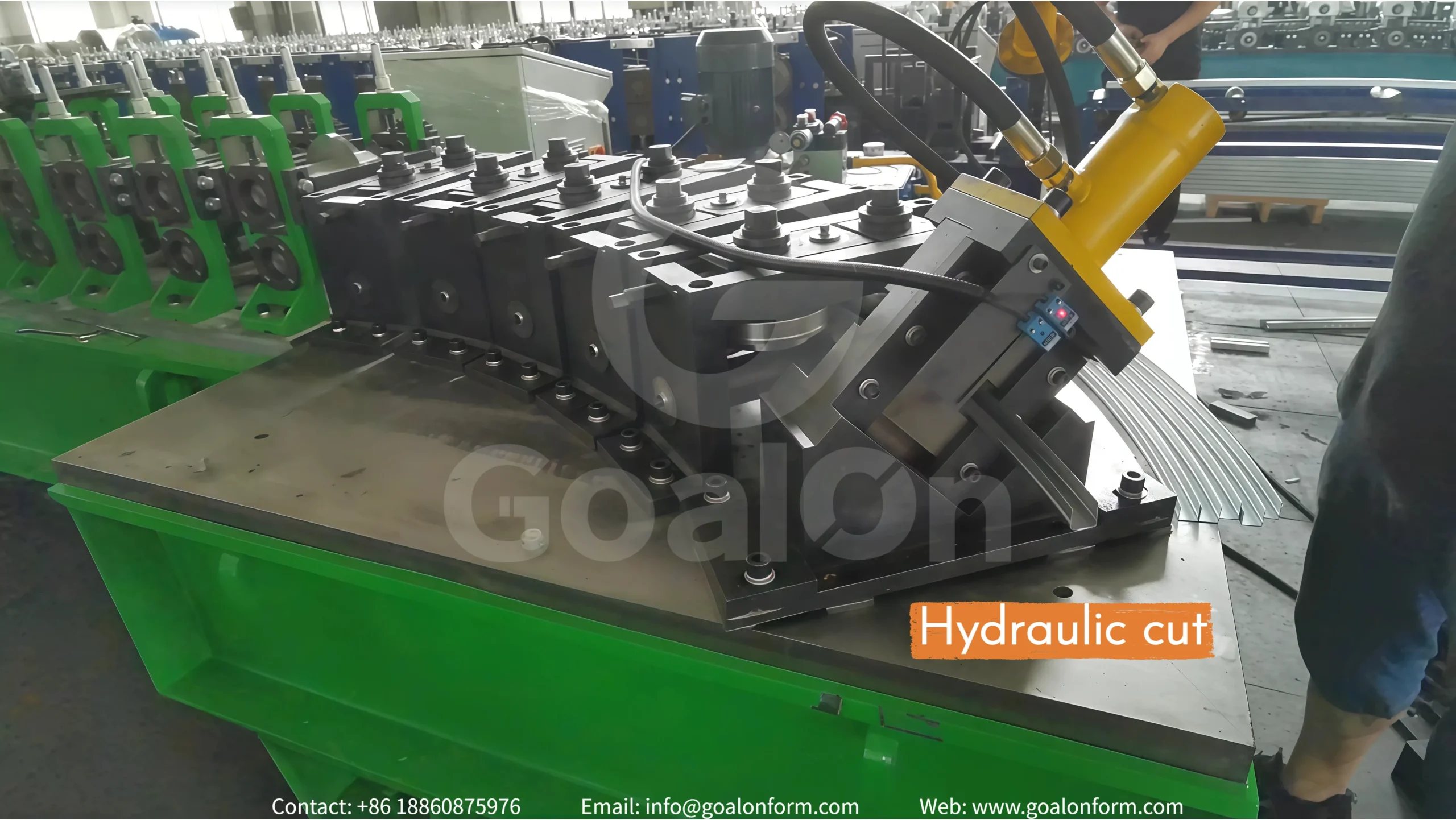

Hydraulic cut unit
The hydraulic cut system provides accurate profile cutting with smooth cutting edges and stable length control. It works synchronously with the roll forming machine to improve production efficiency and reduce profile deformation.

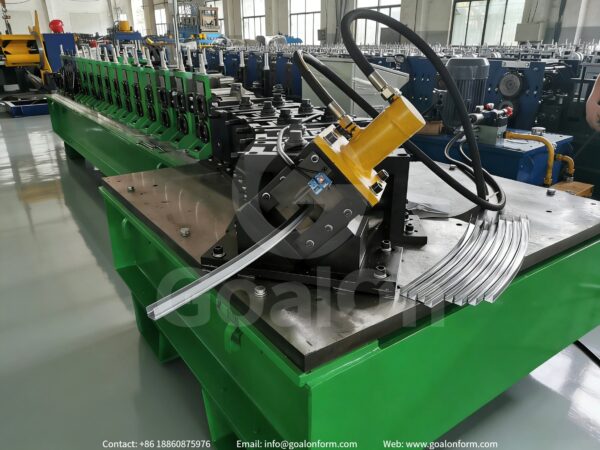

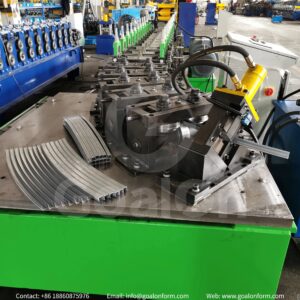

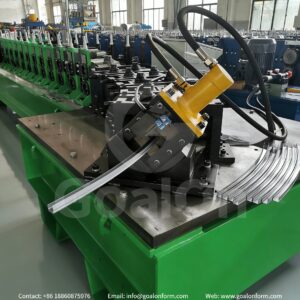

Elbowing Machine
The elbowing machine is used to continuously bend the formed guide rail into the required curved shape. The controlled bending process helps the profile match vehicle installation structures and improves assembly compatibility.
PLC Control Cabinet & Encoder
In a cold roll forming line, the encoder works with the PLC to provide real-time feedback on material position and speed, ensuring precise feed, synchronized forming, and accurate length control for cutting and punching.
Production speed, product length, and quantity can be set on the control cabinet. The display language can be customized according to customer requirements.
Customizable Roll Forming Solutions
Our Laser Weld Container Panel Roll Forming Machine offers comprehensive customization options to meet diverse roofing requirements for residential buildings, villas, commercial properties, and other construction projects.
From adjustable profile dimensions to integrated perforation and embossing units, we tailor every component for high-speed continuous production.
| Material | Thickness | Production speed | Automation level |
| Perforation | Embossing | Cutting | Machine color |
| One machine for multiple profile sizes | …… | ||
Comprehensive Services & Support
Safety Designs
Optional safety covers are available to protect operators from moving components while improving workplace safety and compliance.
Warranty
2-year warranty with lifetime technical support and after-sales service.
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Besides paid on-site installation and training services, we provide installation and operation manuals, along with operation videos before shipment for guidance.
Roll Forming Machines Delivered Worldwide
From our factory to customers across the globe.
Our roll forming machines have been successfully delivered to customers across multiple countries and industries, including construction, storage systems, solar mounting, and steel fabrication.
Each project reflects our engineering expertise, manufacturing capability, and commitment to providing reliable metal forming solutions for long-term customer success.
Frequently Asked Question
The standard configuration operates at 15–20 m/min. Higher-end configurations can reach 30 m/min, and even higher speeds can be customized according to specific production requirements.
Lead times range from 30-40 days post-order, varying by customization level and supplier location. We typically require 35 days for standard machines.
Yes. The production line includes an elbowing machine specifically designed for continuous curved forming to match vehicle installation and assembly requirements.
Yes. We are a professional manufacturer that produces both standard market profiles and customized profiles. We can also sign an agreement to ensure that your drawing will not be shared with other parties.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
