Production Line

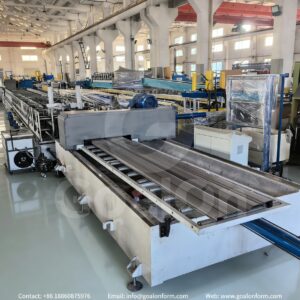

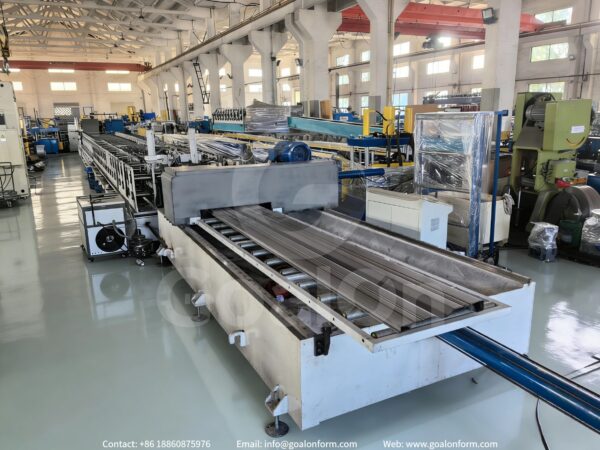

This container panel roll forming machine produces high-strength container panels with continuous forming, integrated laser welding, and flying saw cutting for efficient industrial manufacturing.
- Clean welded joints
- Heavy-duty frame structure
- Quick profile changeover
We can customize the container panel roll forming machine according to different panel profiles, material thicknesses, welding requirements, and production capacity demands.
Ideal for container manufacturers, modular building producers, truck body factories, and customers requiring automated high-volume container panel roll forming production.
1. Flow Chart
Decoiler → Leveling machine → Roll forming machine → Laser welding → Flying saw cut
| 2. Basic Specifications of This Line | |||
| Speed | 15-20m/min,customizable | Operator Needed | 1-2 persons |
| Machine Frame | Wall panel | Driving System | Chains |
| Dimension | LWH 7*1.8*2m | Weight | 15T |
| Container | 1*40GP+(1*20GP) | Power Supply | Customizable |
| 3. Machine Components | |||
| Decoiler*1 | Roll forming machine*1 | Cutting unit*1 | PLC control cabinet*1 |
| Out table*2 | Tool box*1 | Spare parts | |
*For reference only; subject to the actual machines.
Profile Information
Truck body panel profiles are widely used for manufacturing cargo truck bodies, trailers, and transport containers. These steel profiles provide high structural strength, impact resistance, and stable panel connection. Different profile designs can improve loading capacity, reduce body weight, and enhance overall durability for long-term transportation use.
How Does The Roll Forming Machine Work?
Machine Details
Decoiler And Leveling Machine
The decoiler feeds steel coils smoothly into the container panel roll forming machine, while the leveling machine removes coil stress and improves flatness for stable, accurate forming performance.
| Power Type | Manual | Steel Coil Width | Max 1250mm |
| Loading Capacity | 5/7/10 Ton | Expanding Range | 460-50mm |

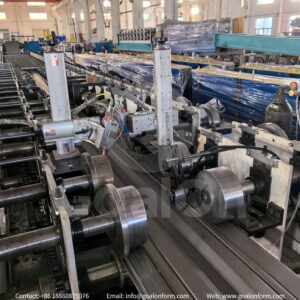

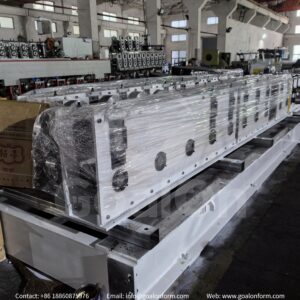

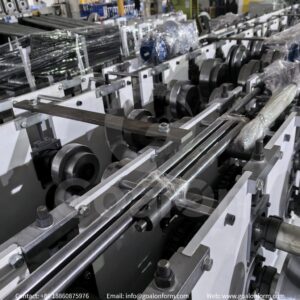

Roll Forming Machine
This container panel roll forming machine adopts a double-wall panel frame and chain transmission structure for stable continuous forming. It features an innovative crane-assisted quick-change design for different container panel profiles. An integrated laser welding system efficiently completes panel welding during the roll forming process, improving productivity and weld consistency.
| Speed | 20m/min | Forming Station | 18 Stands |
| Motor Power | 7.5Kw | Shaft Diameter | 76mm, solid |
| Driving System | Chain | Roller Material | Gcr15,HRC58-62° |
| Frame Structure | Wall panel | Shaft Material | 40Cr heat treatment |
High speed saw cut
The flying saw cut system performs continuous cutting without stopping the roll forming machine. The cutting unit synchronizes with profile speed, ensuring clean cutting surfaces, precise lengths, and zero unnecessary material waste.
Safety Designs
Chain covers are installed to protect operators and extend chain service life. Full-machine mesh covers (slidable) provide visibility with safety. Flip-type covers ensure convenient access with enhanced protection.
Safety signs are applied to continuously alert operators.
PLC Control Cabinet & Encoder
In a cold roll forming line, the encoder works with the PLC to provide real-time feedback on material position and speed, ensuring precise feed, synchronized forming, and accurate length control for cutting and punching.
Production speed, product length, and quantity can be set on the control cabinet. The display language can be customized according to customer requirements.
Other Customization Details
The machine comes standard with a blue main color and orange accents. Other colors can be customized free of charge.
The default metal nameplate is Goalon, which can also be customized at no additional cost.
Basic Services
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Free customized manuals, operationvideos, installationvideos, and remote video supportare provided.
The standard configuration operates at 15–20 m/min. Higher-end configurations can reach 30–40 m/min, and even higher speeds can be customized according to specific production requirements.
Lead times range from 30-40 days post-order, varying by customization level and supplier location. We typically require 35 days for standard machines.
Yes. We are a professional manufacturer that produces both standard market profiles and customized profiles. We can also sign an agreement to ensure that your drawing will not be shared with other parties.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
Yes. The roll forming machine supports quick profile changeover through crane-assisted cassette replacement for different container panel designs.
