Production Line
This fence post roll forming line produces strong, dimensionally consistent steel fence posts with efficient continuous forming, suitable for agricultural, security, and perimeter fencing applications.
- Clean arc-end cutting
- Cost-effective investment
- Easy maintenance structure
We can customize the production line for different fence post profiles, hole patterns, dimensions, material thicknesses, cutting shapes, and production speed requirements.
Recommended for fence manufacturers, agricultural fencing suppliers, infrastructure contractors, and customers requiring stable production of multi-size steel fence posts with economical investment.

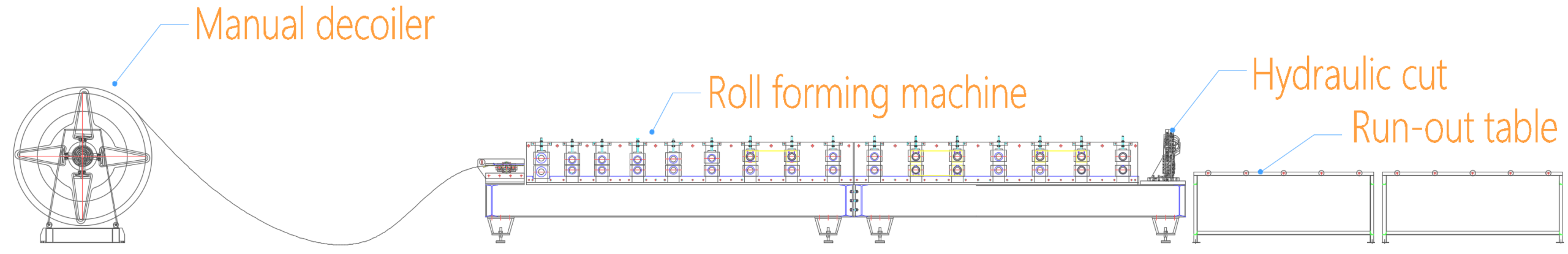

1. Flow Chart
Decoiler → Guiding → Roll forming machine → Hydraulic cut → Out table
| 2. Basic Specifications of This Line | |||
| Speed | 15-20m/min,customizable | Operator Needed | 1-2 persons |
| Machine Frame | Wall panel | Driving System | Chains |
| Dimension | LWH 7*1.8*2m | Weight | 15T |
| Container | 1*40GP+(1*20GP) | Power Supply | Customizable |
| 3. Machine Components | |||
| Decoiler*1 | Roll forming machine*1 | Cutting unit*1 | PLC control cabinet*1 |
| Out table*2 | Tool box*1 | Spare parts | |
*For reference only; subject to the actual machines.

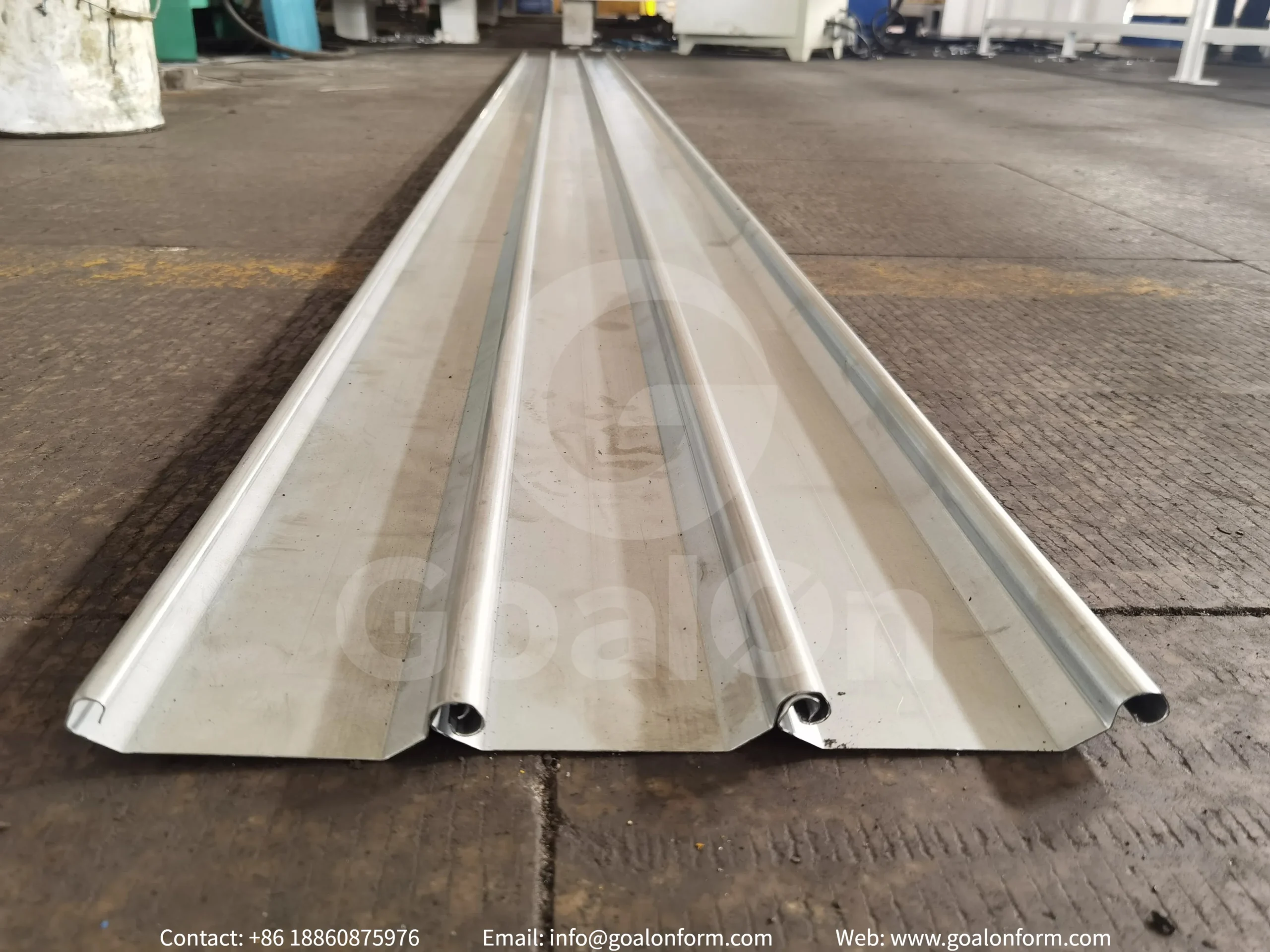

Profile Information
This fence post roll forming line produces strong, dimensionally consistent steel fence posts with efficient continuous forming, suitable for agricultural, security, and perimeter fencing applications.
- Clean arc-end cutting
- Cost-effective investment
- Easy maintenance structure
We can customize the production line for different fence post profiles, hole patterns, dimensions, material thicknesses, cutting shapes, and production speed requirements.
How Does The Roll Forming Machine Work?
Machine Details

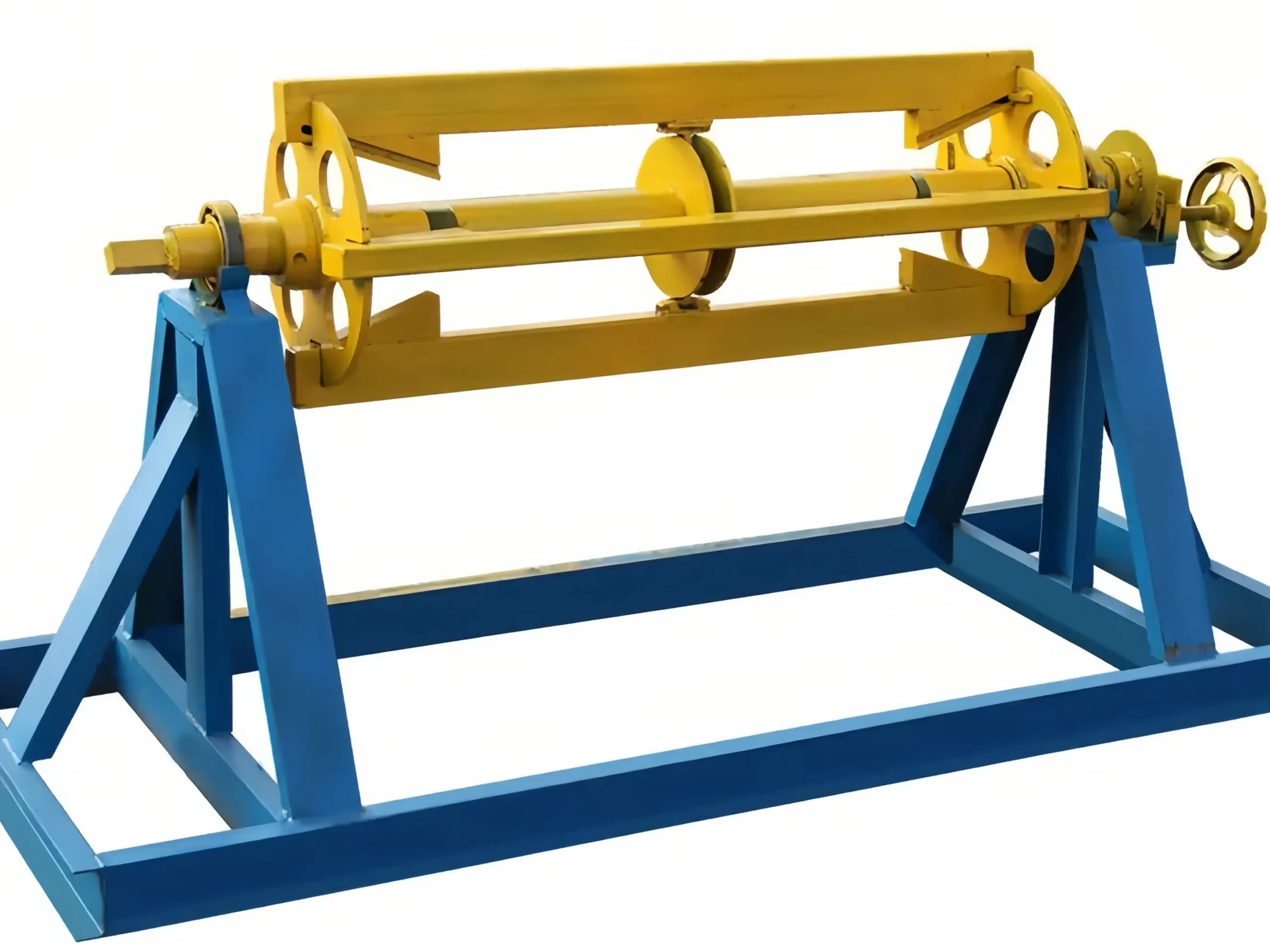

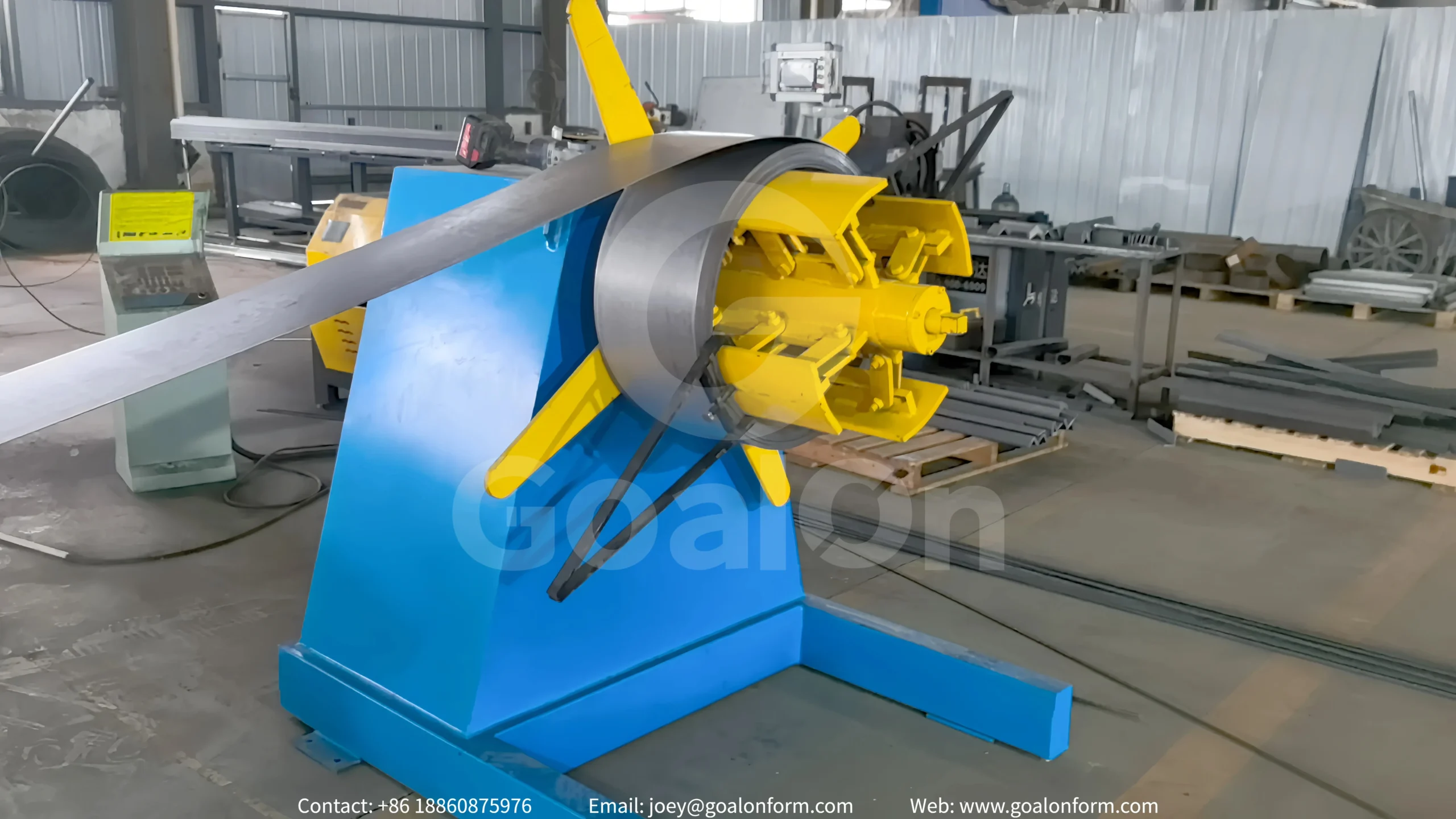

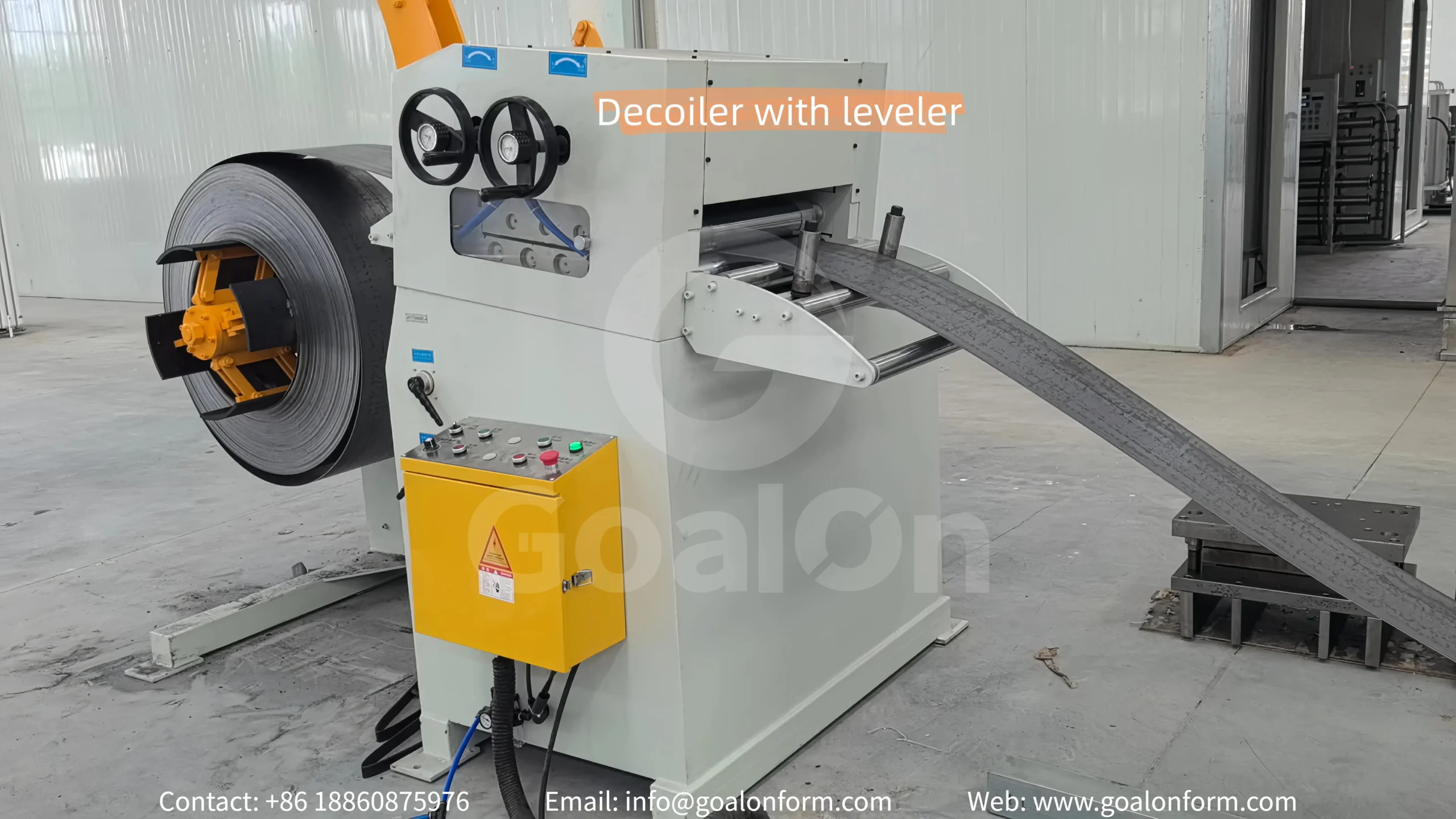

Steel Coil Decoiler
Steel coil decoiler is used to unwind metal coils smoothly for feeding into roll forming, cutting, or punching processes.
Manual decoiler is a basic and economical option, while motorized and hydraulic decoilers are also available for higher efficiency and automation:
| Power Type | Manual | Steel Coil Width | Max 1250mm |
| Loading Capacity | 5/7/10 Ton | Expanding Range | 460-50mm |
Roll Forming Machine
The roll forming machine gradually shapes steel coils into fence posts through multiple forming stations. The wall-panel frame structure combined with chain transmission provides stable forming performance, easy maintenance, and cost-effective operation.
We also support customized solutions for multi-size production, punching systems, and special profile requirements based on customer applications.
| Speed | 20m/min | Forming Station | 18 Stands |
| Motor Power | 7.5Kw | Shaft Diameter | 76mm, solid |
| Driving System | Chain | Roller Material | Gcr15,HRC58-62° |
| Frame Structure | Wall panel | Shaft Material | 40Cr heat treatment |

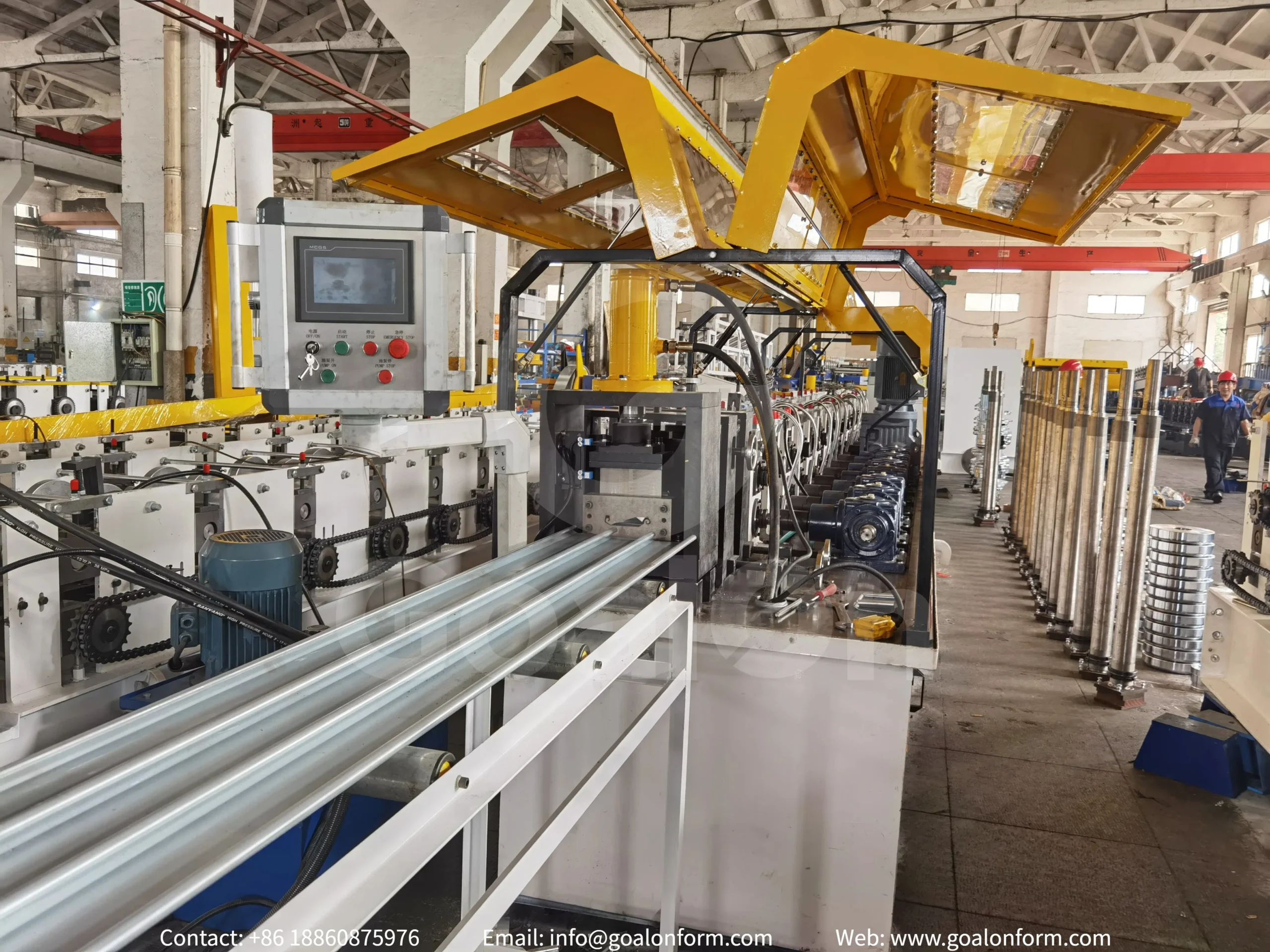

Hydraulic cut
This line adopts a stop-to-cut hydraulic cutting system. During cutting, the roll forming machine temporarily stops to prevent profile movement and improve cutting accuracy. The universal cutting design allows different fence post sizes to share one cutting mold, reducing tooling cost and adjustment time. The hydraulic cutter can also create customized arc-end cutting shapes. For customers requiring higher production speed, customized non-stop cutting solutions are available.

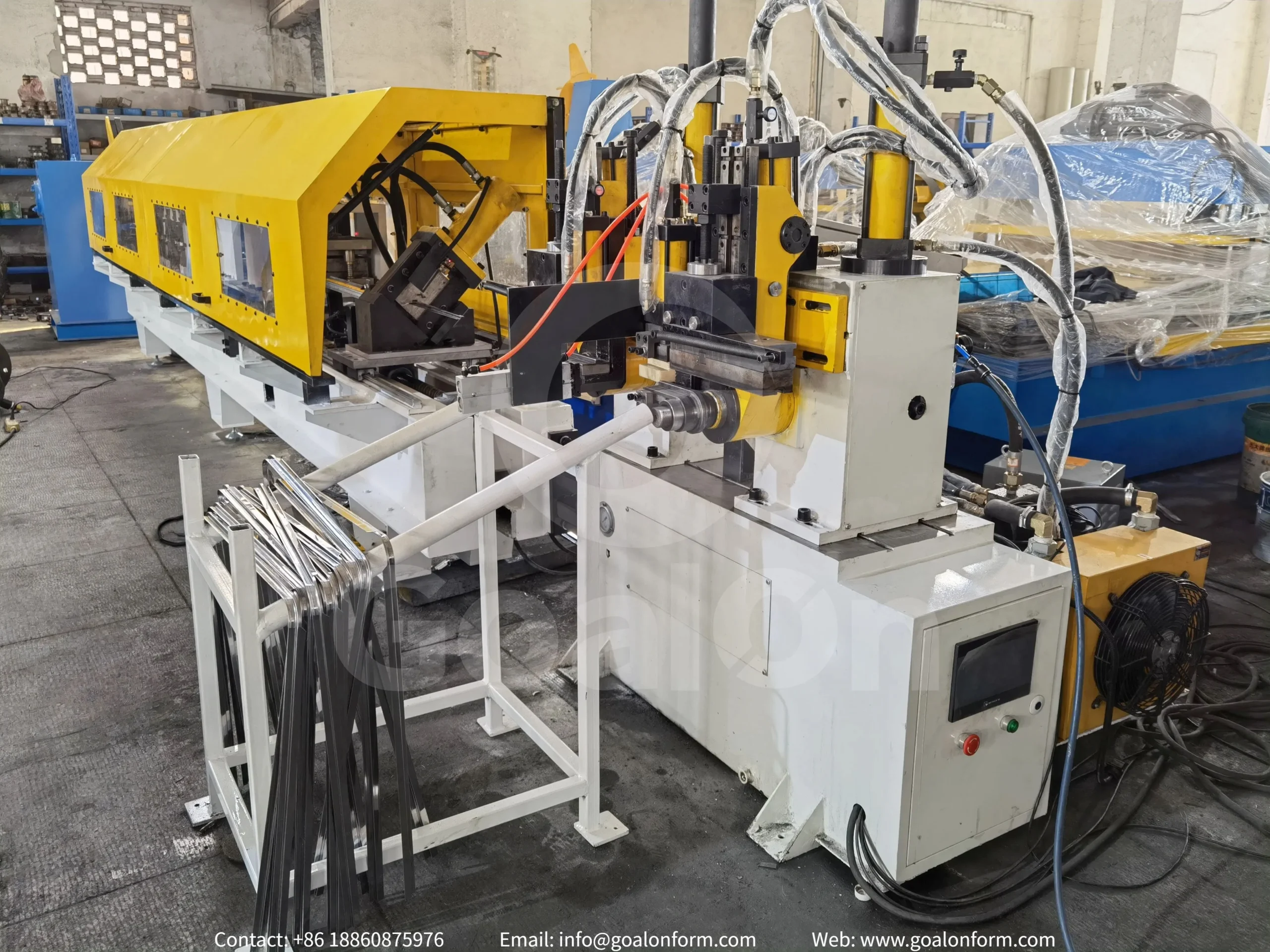

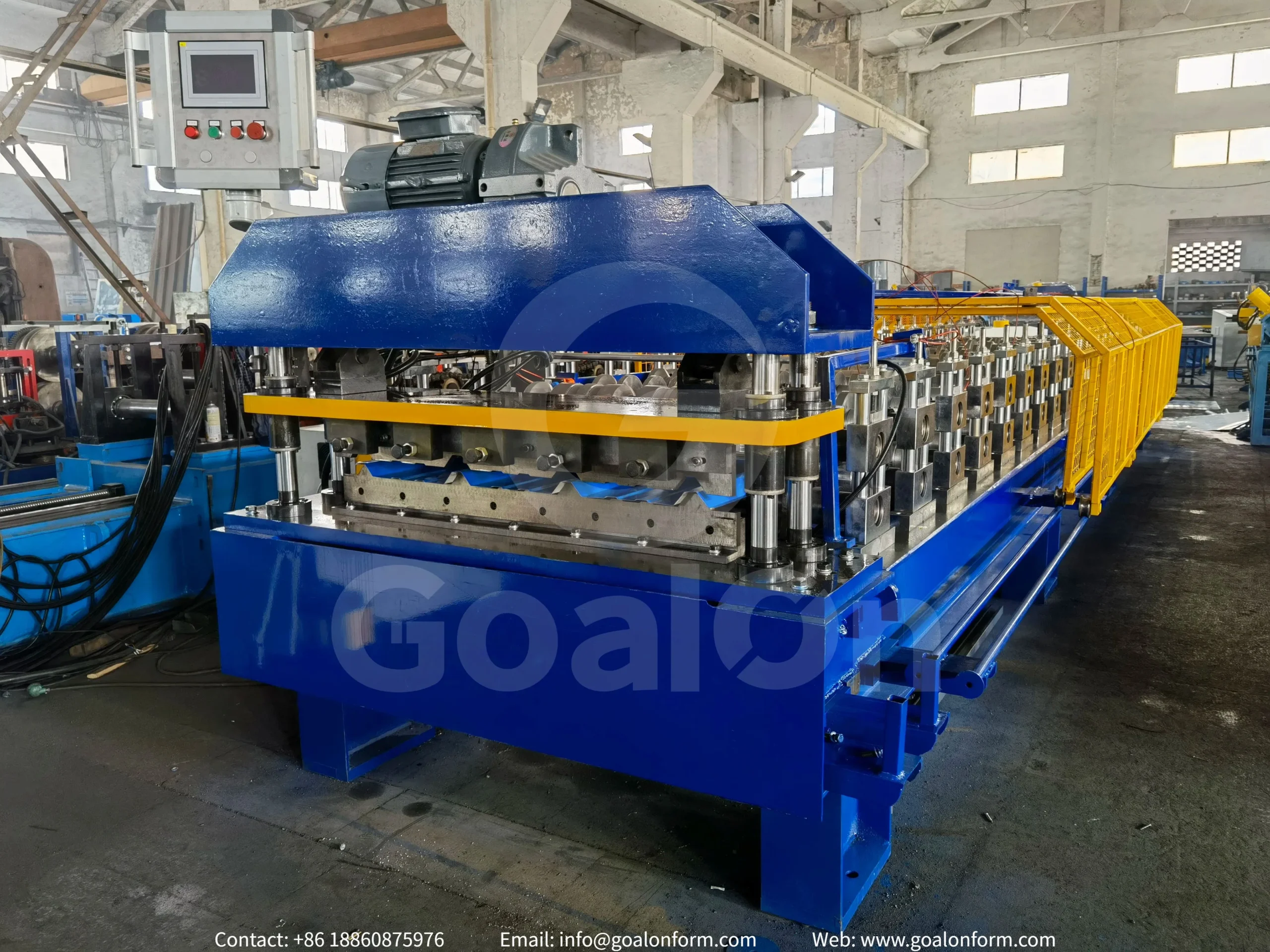

Safety Designs

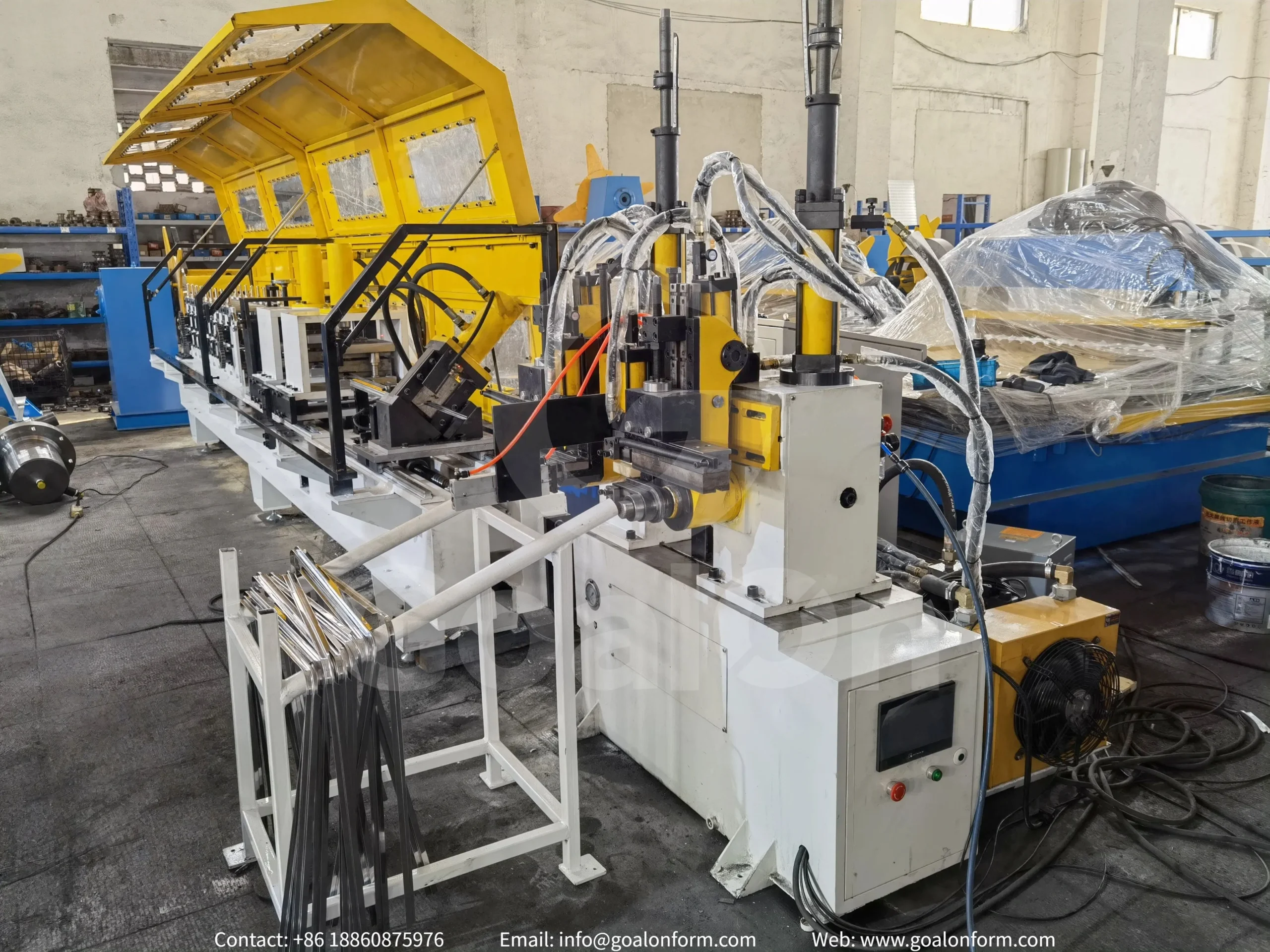

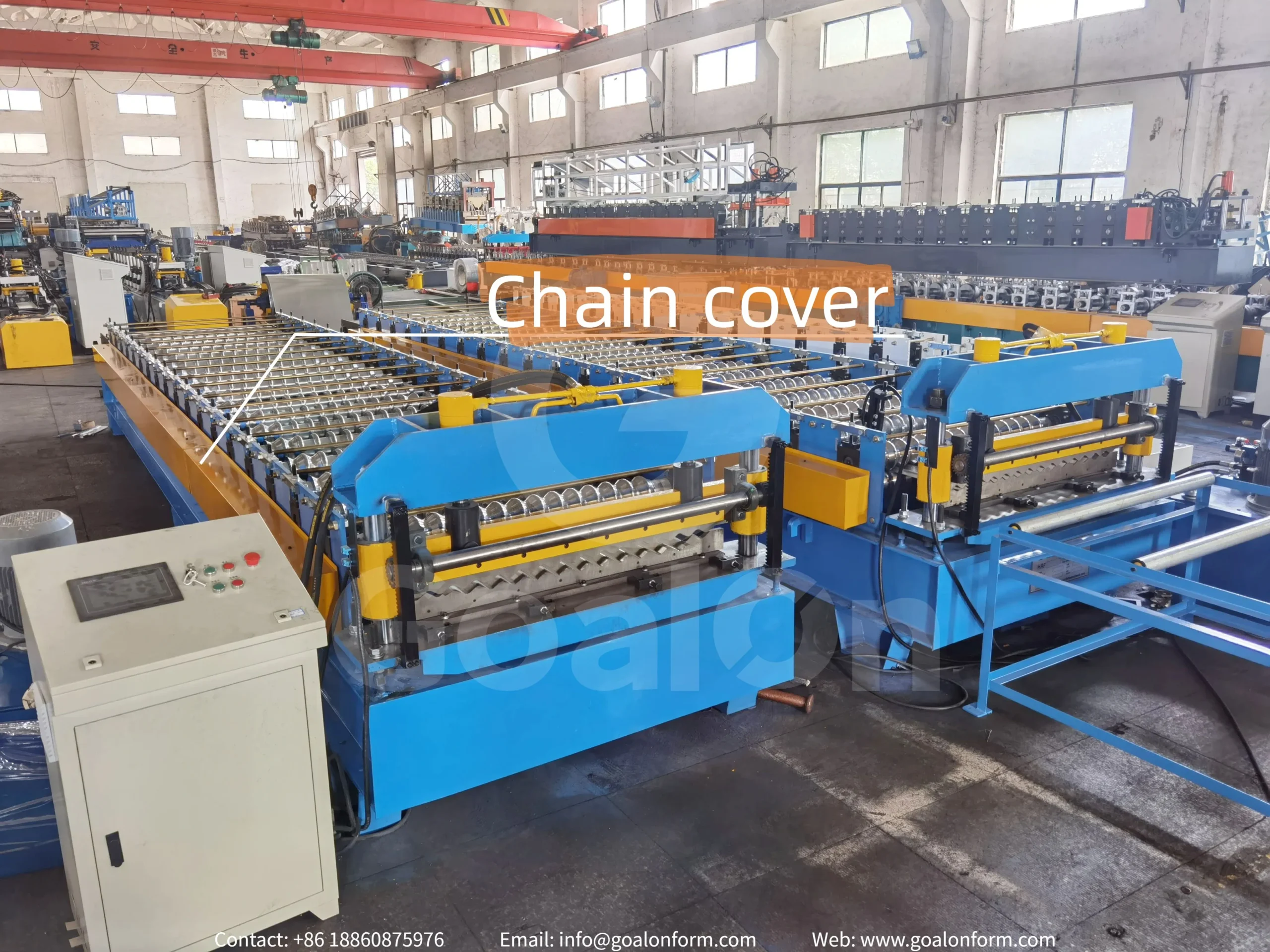

Chain covers are installed to protect operators and extend chain service life. Full-machine mesh covers (slidable) provide visibility with safety. Flip-type covers ensure convenient access with enhanced protection.
Safety signs are applied to continuously alert operators.
PLC Control Cabinet & Encoder
In a cold roll forming line, the encoder works with the PLC to provide real-time feedback on material position and speed, ensuring precise feed, synchronized forming, and accurate length control for cutting and punching.
Production speed, product length, and quantity can be set on the control cabinet. The display language can be customized according to customer requirements.
Other Customization Details
The machine comes standard with a blue main color and orange accents. Other colors can be customized free of charge.
The default metal nameplate is Goalon, which can also be customized at no additional cost.
Basic Services
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Free customized manuals, operationvideos, installationvideos, and remote video supportare provided.
The standard configuration operates at 15–20 m/min. Higher-end configurations can reach 30–40 m/min, and even higher speeds can be customized according to specific production requirements.
Lead times range from 30-40 days post-order, varying by customization level and supplier location. We typically require 35 days for standard machines.
Yes. We are a professional manufacturer that produces both standard market profiles and customized profiles. We can also sign an agreement to ensure that your drawing will not be shared with other parties.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
