Profile Information
Heavy-duty rack uprights are used for warehouse storage rack systems, featuring multi-hole vertical profiles with high load-bearing capacity, widely used in North America, Europe, and Southeast Asia.
Heavy-duty rack uprights commonly use 1.5-2.5mm galvanized steel or cold-rolled steel, providing excellent structural strength, punching performance, and long-term durability for industrial storage applications.
Typical Applications
| Heavy-duty pallet racking systems | Automated storage and retrieval systems (as/rs) |
| Distribution centers and logistics hubs | High-density storage systems |
Profile Specification
| Profile | Heavy-duty rack upright | ||
| Common Material | Galvanized steel/hot-rolled steel | ||
| Yield Strength | 235–550 MPa (customizable) | ||
| Thickness | 1.5-2.5mm | ||
| Profile Features | Various Hole Shapes And Slot Patterns | ||
| Tall, Narrow Profile With Multiple Bends | |||
| Regularly Spaced Slots For Adjustable Beam Connections | |||
Production Line

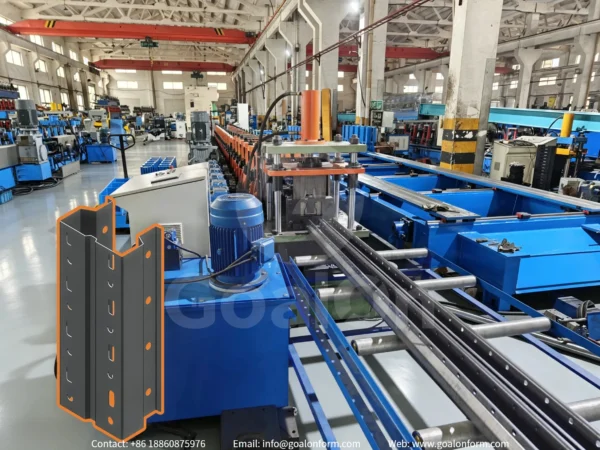

Heavy-duty rack upright roll forming line for high-strength warehouse storage systems, featuring automatic punching, precision forming, and stable production of thick-gauge steel uprights.
- Automatic size adjustment
- Heavy-duty cast-iron structure
Flow Chart

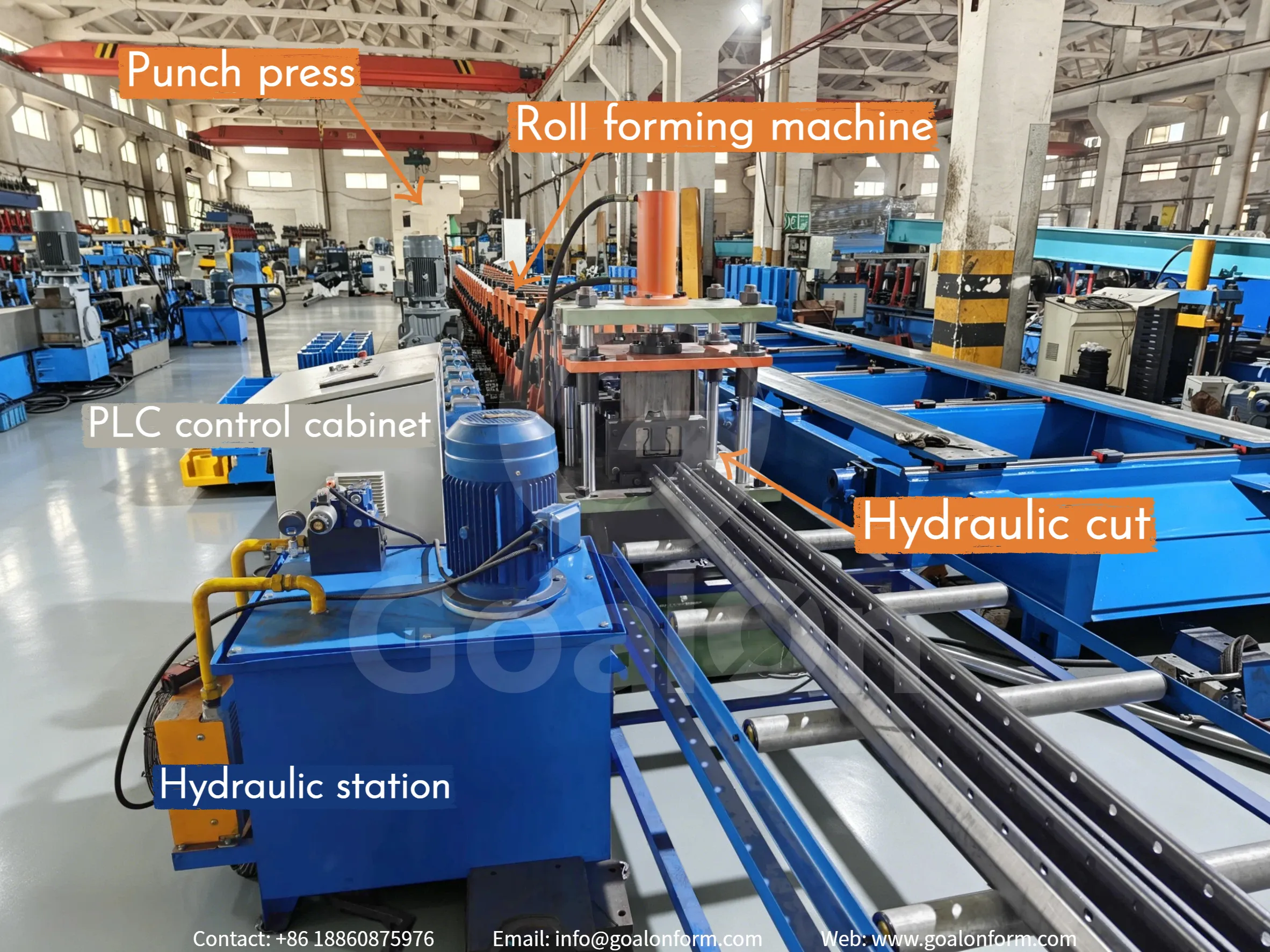

Hydraulic Decoiler And Leveling Machine → Servo Feeder → Punch Press → Roll Forming Machine → Hydraulic Cutting Unit → Output Table
Factory Live Test Video 🎯
Prior to shipment, every Goalon roll forming machine undergoes strict trial testing. Below is the live footage of our heavy-duty box beam production line under continuous operational testing.
Why Choose This Roll Forming Production Line
✅ Automatic Width Adjustment
One-Click Auto Sizing. Servo-controlled adjustment enables size changes within 10 minutes, ideal for multi-size production.
✅ Continuous Flying Laser Welding
High-Precision Continuous Laser Welding. Synchronized with forming speed, producing smooth, strong weld seams without grinding.
✅ Servo Flying Saw Cutting
Non-Stop Synchronized Cutting. Clean, burr-free cutting with ±1 mm length accuracy and higher productivity.
Machine Details 🎯
Function Of Machines
Hydraulic Decoiler And Leveling Machine
The hydraulic decoiler and leveling integrated machine saves factory space while improving feeding stability between decoiling and leveling processes. It efficiently releases steel coils and removes material stress before punching and forming. Compared with separated machines, the integrated structure offers easier installation and lower investment cost. Hydraulic expansion, coil pressing arm, and higher-capacity configurations are also available.
♦ Servo feeder+Punch press
The servo feeder accurately delivers steel strip length to ensure precise punching positions for rack upright hole patterns. The punch press performs continuous slotting and hole punching for beam connection and assembly requirements. High punching precision directly affects rack installation quality and interchangeability. Hydraulic punching or independent punching stations are also available for customized production demands.
♦ Roll Forming Machine

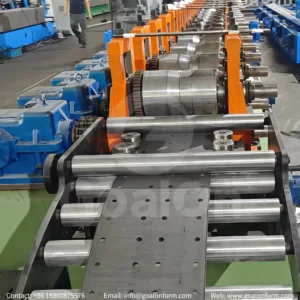

The roll forming machine adopts heavy-duty cast-iron frame construction with gearbox transmission for stable operation when processing thick steel materials. Automatic size adjustment allows flexible production of different upright specifications while maintaining forming accuracy, profile straightness, and long-term machine durability.
Hydraulic cut

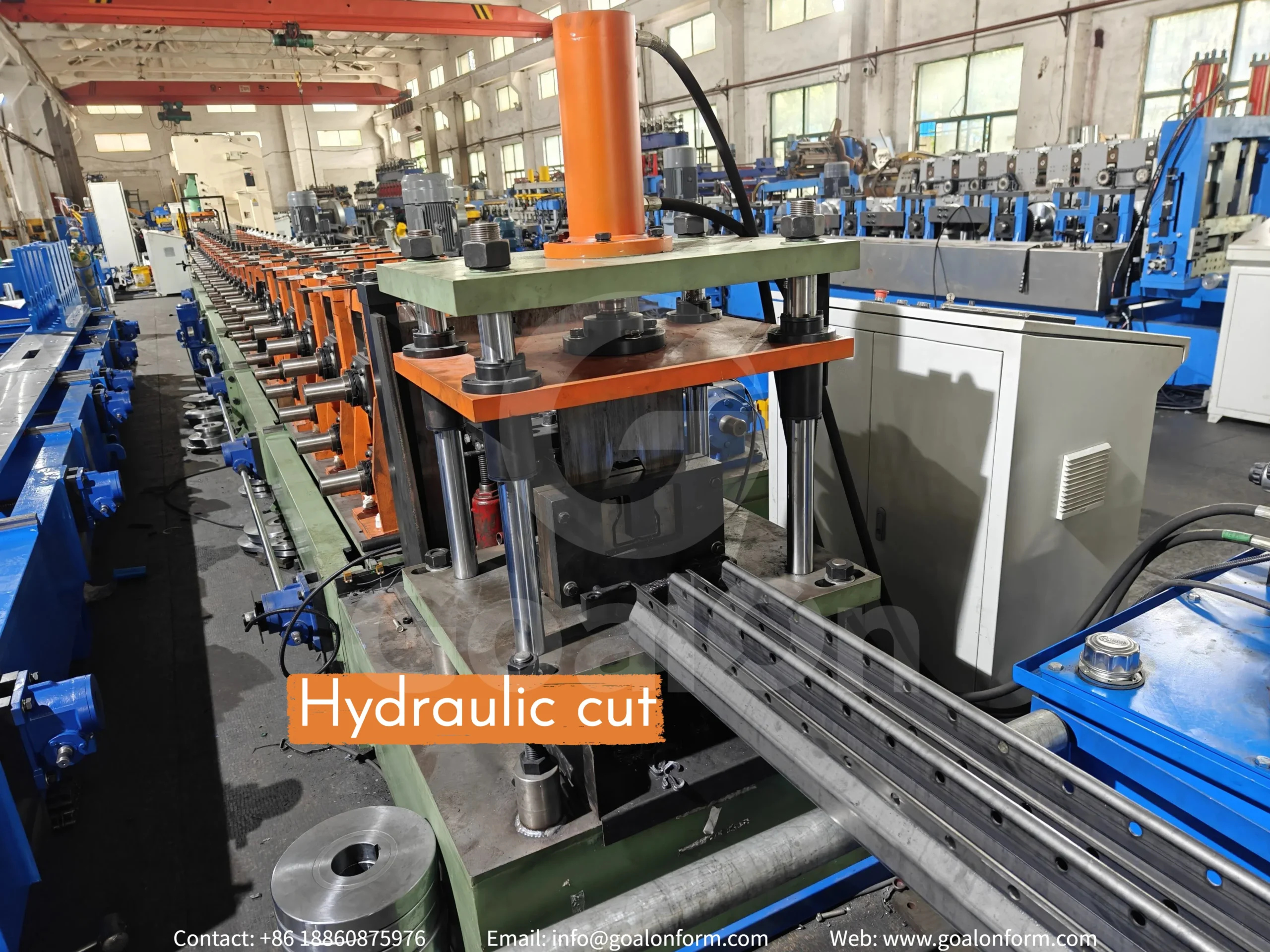

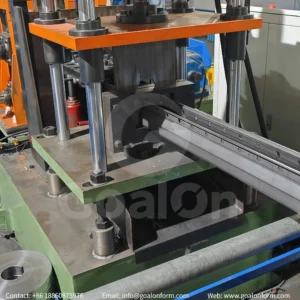

This line adopts a stop-to-cut hydraulic cutting system. During cutting, the roll forming machine temporarily stops to prevent profile movement and improve cutting accuracy. The universal cutting design allows different fence post sizes to share one cutting mold, reducing tooling cost and adjustment time. The hydraulic cutter can also create customized arc-end cutting shapes. For customers requiring higher production speed, customized non-stop cutting solutions are available.
Machine Photos
Specifications Of This Roll Forming Production Line
| Component | Specification | Details |
| Decoiler | Type | Hydraulic |
| Capacity | 5T | |
| Leveler | Type | 3 upper+4 lower shaft rollers |
| Roll forming machine | Size changeover | Automatic |
| Power | 7.5Kw | |
| Structure | Cast-iron stand | |
| Driving system | Chain | |
| Machine base | 350x6mm H steel | |
| Station number | 18 main stands | |
| Forming speed | 15-20m/min | |
| Roller material | GCr15 steel rollers with CNC machining, heat treatment, precision finishing, polishing, and chrome plating, achieving HRC 58–60 hardness. | |
| Shaft material | 45# steel shafts with CNC machining, quenching and tempering, precision finishing, polishing, and chrome plating | |
| Welder | Type | Laser |
| Operation Mode | Forming machine keeps running when welding | |
| Cutting | Type | Saw |
| Operation Mode | Forming machine keeps running when cutting | |
| PLC control cabinet | PLC | SIEMENS |
| HMI touch screen | MCGS/SIEMENS/Schneider | |
| Encoder | OMRON | |
| Production line | Total power | 11-18kw |
| Speed | 15-18m/min | |
| Dimension | LWH 10×1.4×1.6m | |
| Weight | 6-10T |
This production line features a heavy-duty 350x6mm H-steel base structure and GCr15 CNC-machined rollers (HRC 58–60), ensuring maximum structural stability and zero precision loss over millions of cycles. With integrated Siemens PLC and Omron encoders, operators achieve real-time speed monitoring and sub-millimeter length cutting control.
Customizable Rack Upright Roll Forming Solutions

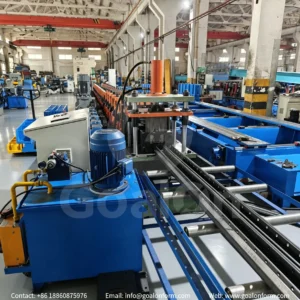

Our Multi-Size Perforation Rack Upright Roll Forming Machine offers comprehensive customization options to meet diverse storage racking requirements.
From adjustable profile dimensions to integrated perforation and embossing units, we tailor every component for high-speed continuous production.
| Material | Thickness | Production speed | Automation level |
| Perforation | Embossing | Cutting | Machine color |
| One machine for multiple profile sizes | …… | ||
Comprehensive Services & Support
Safety Designs
Optional safety covers are available to protect operators from moving components while improving workplace safety and compliance.
Warranty
2-year warranty with lifetime technical support and after-sales service.
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Besides paid on-site installation and training services, we provide installation and operation manuals, along with operation videos before shipment for guidance.
Roll Forming Machines Delivered Worldwide
From our factory to customers across the globe.
Our roll forming machines have been successfully delivered to customers across multiple countries and industries, including construction, storage systems, solar mounting, and steel fabrication.
Each project reflects our engineering expertise, manufacturing capability, and commitment to providing reliable metal forming solutions for long-term customer success.
Frequently Asked Question
Yes. The roll forming machine supports automatic adjustment for different upright widths and profile specifications with fast size change capability.
Lead times range from 30-40 days post-order, varying by customization level and supplier location. We typically require 35 days for standard machines.
Yes. We are a professional manufacturer that produces both standard market profiles and customized profiles. We can also sign an agreement to ensure that your drawing will not be shared with other parties.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
