Production Line

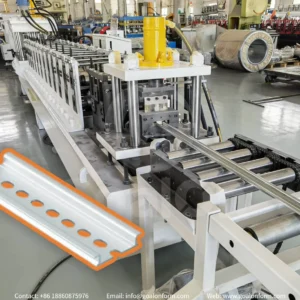

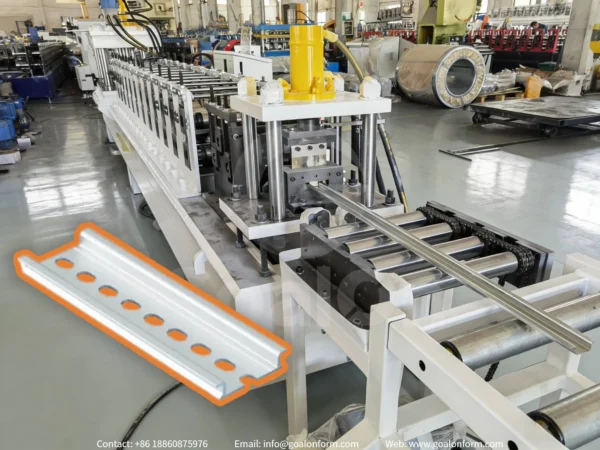

This DIN rail roll forming machine produces high-precision electrical mounting rails with stable punching accuracy, continuous forming performance, and efficient automatic stacking for industrial mass production.

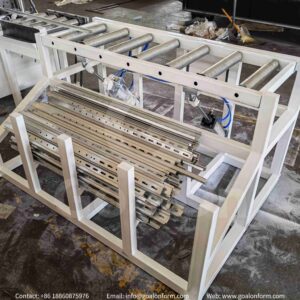

- Automatic Product Stacking
- Stable Punching Accuracy
We can customize the DIN rail roll forming machine configuration according to different DIN rail profiles, hole patterns, material thicknesses, production speeds, and automation requirements.
This roll forming machine is ideal for electrical component manufacturers, switch cabinet factories, and industrial mounting system suppliers requiring continuous DIN rail production with punching and automatic stacking.
1. Flow Chart

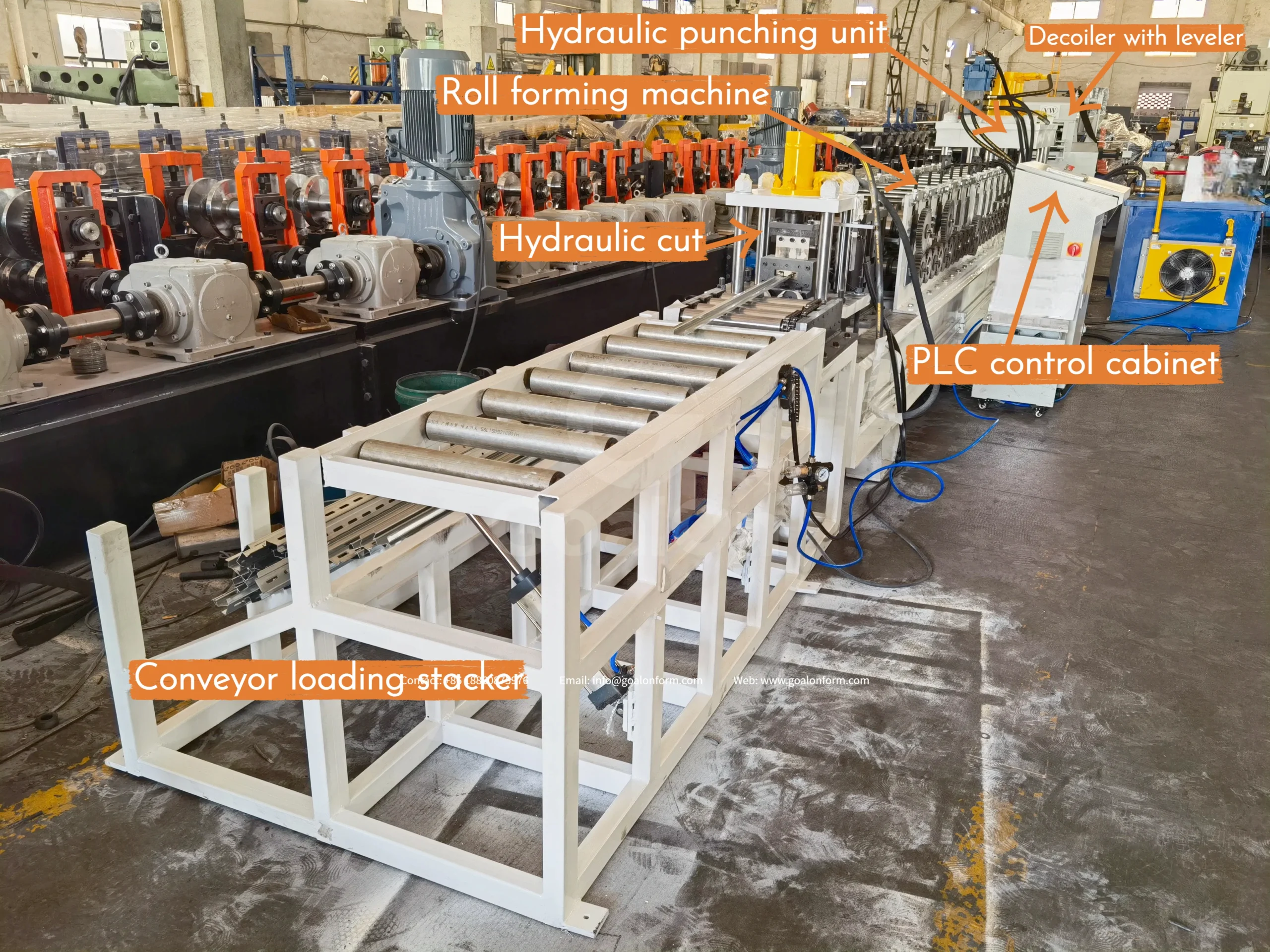

Combined decoiler and leveling machine → Guiding → Hydraulic punching machine → Roll forming machine → Hydraulic cut-off → Auto stacker
| 2. Basic Specifications of This Line | |||
| Speed | 15-20m/min,customizable | Operator Needed | 1-2 persons |
| Machine Frame | Wall panel | Driving System | Chains |
| Dimension | LWH 7*1.8*2m | Weight | 15T |
| Container | 1*40GP+(1*20GP) | Power Supply | Customizable |
| 3. Machine Components | |||
| Decoiler*1 | Roll forming machine*1 | Cutting unit*1 | PLC control cabinet*1 |
| Out table*2 | Tool box*1 | Spare parts | |
*For reference only; subject to the actual machines.
Profile Information
DIN rail is widely used for mounting circuit breakers, terminal blocks, relays, and industrial electrical components inside control cabinets and distribution boxes.
Common profiles include top hat, G-type, and C-type rails, mainly produced from galvanized steel or stainless steel by a DIN rail roll forming machine with punching and continuous forming technology.
How Does The Roll Forming Machine Work?
Machine Details
Combined Decoiler And Leveling Machine
The combined decoiler and leveling machine saves factory space while ensuring smooth material feeding into the roll forming machine. Compared with separate machines, it offers easier installation and lower investment for DIN rail production.
Hydraulic Punching Machine
The hydraulic punching machine performs hole punching and slot forming before profile shaping. Integrated with the roll forming machine line, it ensures accurate positioning and supports customized punching dies for different DIN rail standards.
Roll Forming Machine

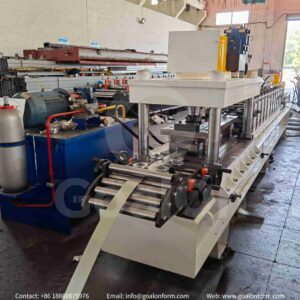

The wall-panel-frame roll forming machine with chain transmission provides stable forming pressure and reliable long-term operation. Multiple roller stations gradually shape the steel strip into precise DIN rail profiles with consistent dimensions and smooth edges.
PLC Control Cabinet & Encoder
In a cold roll forming line, the encoder works with the PLC to provide real-time feedback on material position and speed, ensuring precise feed, synchronized forming, and accurate length control for cutting and punching.
Production speed, product length, and quantity can be set on the control cabinet. The display language can be customized according to customer requirements.
Customizable Roll Forming Solutions
Our Cabinet DIN Rail Roll Forming Machine offers comprehensive customization options to meet diverse electrical cabinet frame production requirements.
From adjustable profile dimensions to integrated perforation and embossing units, we tailor every component for high-speed continuous production.
| Material | Thickness | Production speed | Automation level |
| Perforation | Embossing | Cutting | Machine color |
| One machine for multiple profile sizes | …… | ||
Comprehensive Services & Support
Safety Designs
Optional safety covers are available to protect operators from moving components while improving workplace safety and compliance.
Warranty
2-year warranty with lifetime technical support and after-sales service.
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Besides paid on-site installation and training services, we provide installation and operation manuals, along with operation videos before shipment for guidance.
Roll Forming Machines Delivered Worldwide
From our factory to customers across the globe.
Our roll forming machines have been successfully delivered to customers across multiple countries and industries, including construction, storage systems, solar mounting, and steel fabrication.
Each project reflects our engineering expertise, manufacturing capability, and commitment to providing reliable metal forming solutions for long-term customer success.
Frequently Asked Question
The standard configuration operates at 15–20 m/min. Higher-end configurations can reach 30–40 m/min, and even higher speeds can be customized according to specific production requirements.
Lead times range from 30-40 days post-order, varying by customization level and supplier location. We typically require 35 days for standard machines.
Yes. The punching molds can be customized according to different DIN rail standards, slot shapes, hole distances, and customer technical drawings.
Yes. We are a professional manufacturer that produces both standard market profiles and customized profiles. We can also sign an agreement to ensure that your drawing will not be shared with other parties.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
