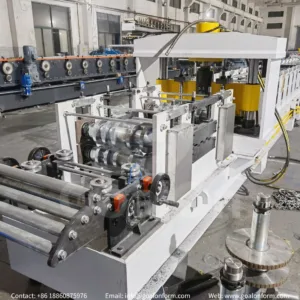

This Z purlin roll forming machine is designed for efficient production of punched steel Z purlins with stable forming accuracy, reliable punching performance, and economical operation for structural steel fabrication and building construction applications.
We can customize different Z purlin roll forming machine configurations according to profile drawings, punching layouts, material thickness, production speed, and local power requirements.
Recommended for steel structure manufacturers, purlin suppliers, and construction material factories requiring punched Z purlins with stable production quality and economical operating costs.
1. Flow Chart
Decoiler → Leveler → Hydraulic pre cut → Roll forming machine → Hydraulic cut → out table
| 2. Basic Specifications of This Line | |||
| Speed | 15-20m/min,customizable | Operator Needed | 1-2 persons |
| Machine Frame | Wall panel | Driving System | Chains |
| Dimension | LWH 7*1.8*2m | Weight | 15T |
| Container | 1*40GP+(1*20GP) | Power Supply | Customizable |
| 3. Machine Components | |||
| Decoiler*1 | Roll forming machine*1 | Cutting unit*1 | PLC control cabinet*1 |
| Out table*2 | Tool box*1 | Spare parts | |
*For reference only; subject to the actual machines.
Profile Information
Z purlins are widely used as structural support members in steel buildings, warehouses, workshops, and roofing systems. Their offset flange design provides improved overlapping connection strength and efficient load distribution.
These profiles are commonly produced from galvanized steel or black steel coils by a Z purlin roll forming machine. Popular markets include Southeast Asia, the Middle East, Africa, South America, and Europe.
How Does The Roll Forming Machine Work?
Machine Details
Hydraulic Decoiler And Leveling Machine
The decoiler supports smooth coil feeding, while the leveler removes coil stress and improves sheet flatness through multiple rollers, helping the Z purlin roll forming machine achieve stable forming accuracy.
| Power Type | Manual | Steel Coil Width | Max 1250mm |
| Loading Capacity | 5/7/10 Ton | Expanding Range | 460-50mm |
Hydraulic Pre-Cut
The hydraulic pre cutting unit cuts the leveled steel strip before it enters the roll forming machine. This design reduces tooling costs, simplifies machine structure, and provides reliable length control. It is an economical solution for customers producing standard Z purlin profiles with consistent dimensions and stable production requirements.
Roll Forming Machine
The roll forming machine gradually shapes steel strips into Z purlins through multiple forming stations. The wall-panel structure combined with a chain driving system provides stable transmission, reliable operation, and cost-effective production for medium-thickness steel materials.
| Speed | 20m/min | Forming Station | 18 Stands |
| Motor Power | 7.5Kw | Shaft Diameter | 76mm, solid |
| Driving System | Chain | Roller Material | Gcr15,HRC58-62° |
| Frame Structure | Wall panel | Shaft Material | 40Cr heat treatment |
Hydraulic cut
This Z purlin roll forming machine uses a hydraulic stop-to-cut system after forming. During cutting, the roll forming section temporarily stops to prevent profile movement and maintain cutting accuracy. For customers requiring higher production speed, we also provide customized flying cutting solutions.
PLC Control Cabinet & Encoder
In a cold roll forming line, the encoder works with the PLC to provide real-time feedback on material position and speed, ensuring precise feed, synchronized forming, and accurate length control for cutting and punching.
Production speed, product length, and quantity can be set on the control cabinet. The display language can be customized according to customer requirements.
Customizable Steel Purlin Roll Forming Solutions
Our Customized Z Purlin Roll Forming Machine offers comprehensive customization options to meet diverse storage racking requirements.
From adjustable profile dimensions to integrated perforation and embossing units, we tailor every component for high-speed continuous production.
| Material | Thickness | Production speed | Automation level |
| Perforation | Embossing | Cutting | Machine color |
| One machine for multiple profile sizes | …… | ||
Comprehensive Services & Support
Safety Designs
Optional safety covers are available to protect operators from moving components while improving workplace safety and compliance.
Warranty
2-year warranty with lifetime technical support and after-sales service.
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Besides paid on-site installation and training services, we provide installation and operation manuals, along with operation videos before shipment for guidance.
Roll Forming Machines Delivered Worldwide
From our factory to customers across the globe.
Our roll forming machines have been successfully delivered to customers across multiple countries and industries, including construction, storage systems, solar mounting, and steel fabrication.
Each project reflects our engineering expertise, manufacturing capability, and commitment to providing reliable metal forming solutions for long-term customer success.
Frequently Asked Question
Yes. The roll forming machine supports automatic adjustment for different upright widths and profile specifications with fast size change capability.
Lead times range from 30-40 days post-order, varying by customization level and supplier location. We typically require 35 days for standard machines.
Yes. Different Z purlin sizes can be produced through customized roller design or optional automatic size adjustment solutions.
Yes. We are a professional manufacturer that produces both standard market profiles and customized profiles. We can also sign an agreement to ensure that your drawing will not be shared with other parties.
Yes. Punching hole size, spacing, quantity, and layout can be customized according to customer drawings and project requirements.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
