Production Line

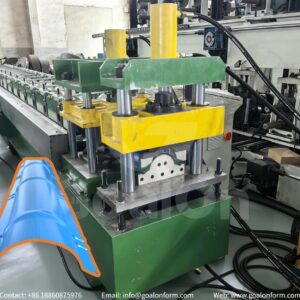

Compact roll forming line producing half round ridge caps with folded edges, ensuring safe handling, stable forming accuracy, and efficient small-batch or continuous roofing accessory production.
We customize forming stations, roller profiles, cutting methods, and decoiler capacity based on different ridge cap shapes, widths, edge designs, and regional roofing standards.
- Smooth edge safety design
- Stable half-round forming
- Compact line layout
- Easy operation control
- Low maintenance demand
- Cost-efficient solution
Ideal for roofing accessory manufacturers, contractors, and distributors producing half round ridge caps for residential or light commercial roofing projects with moderate output requirements.
1. Flow Chart

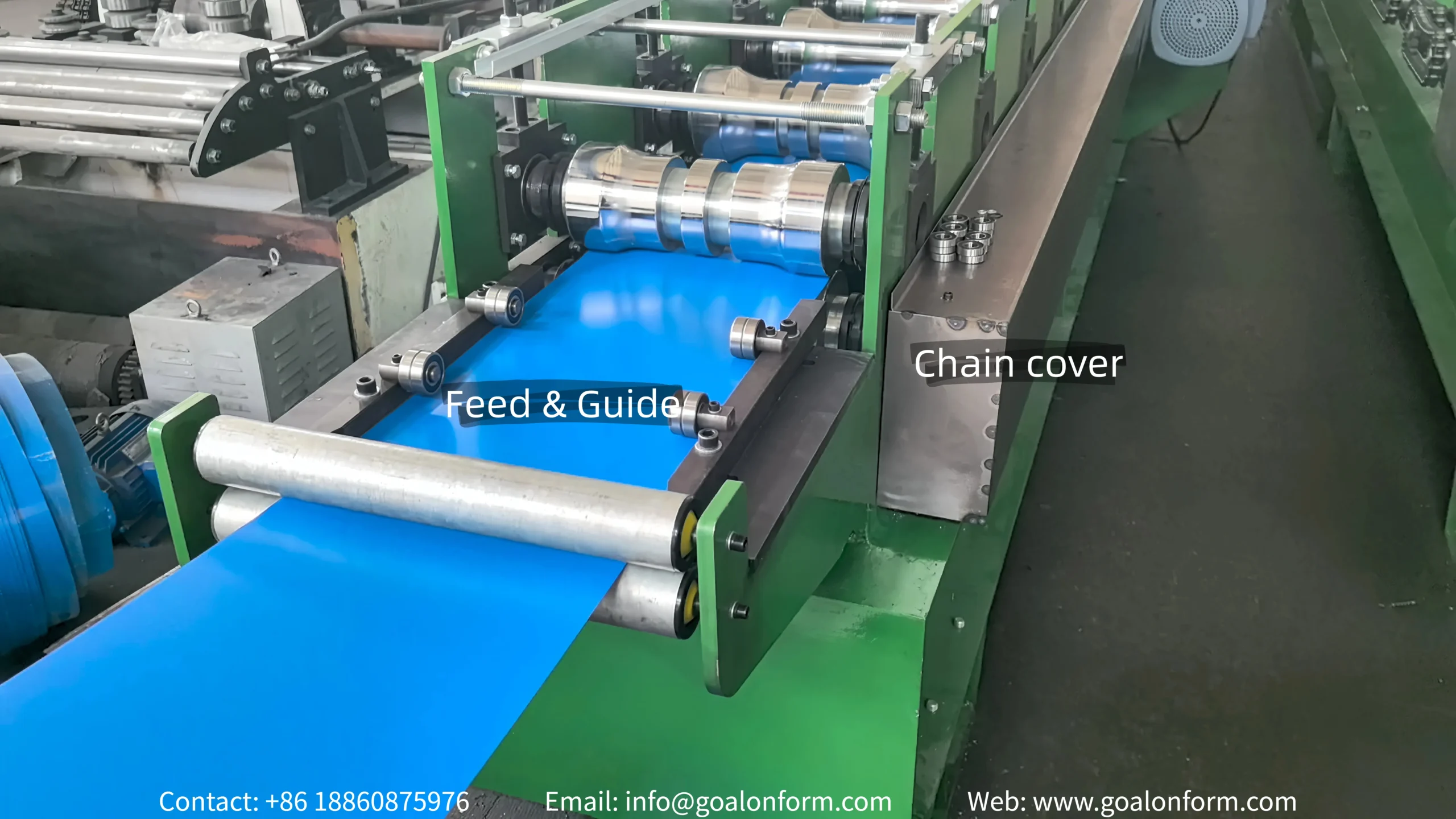

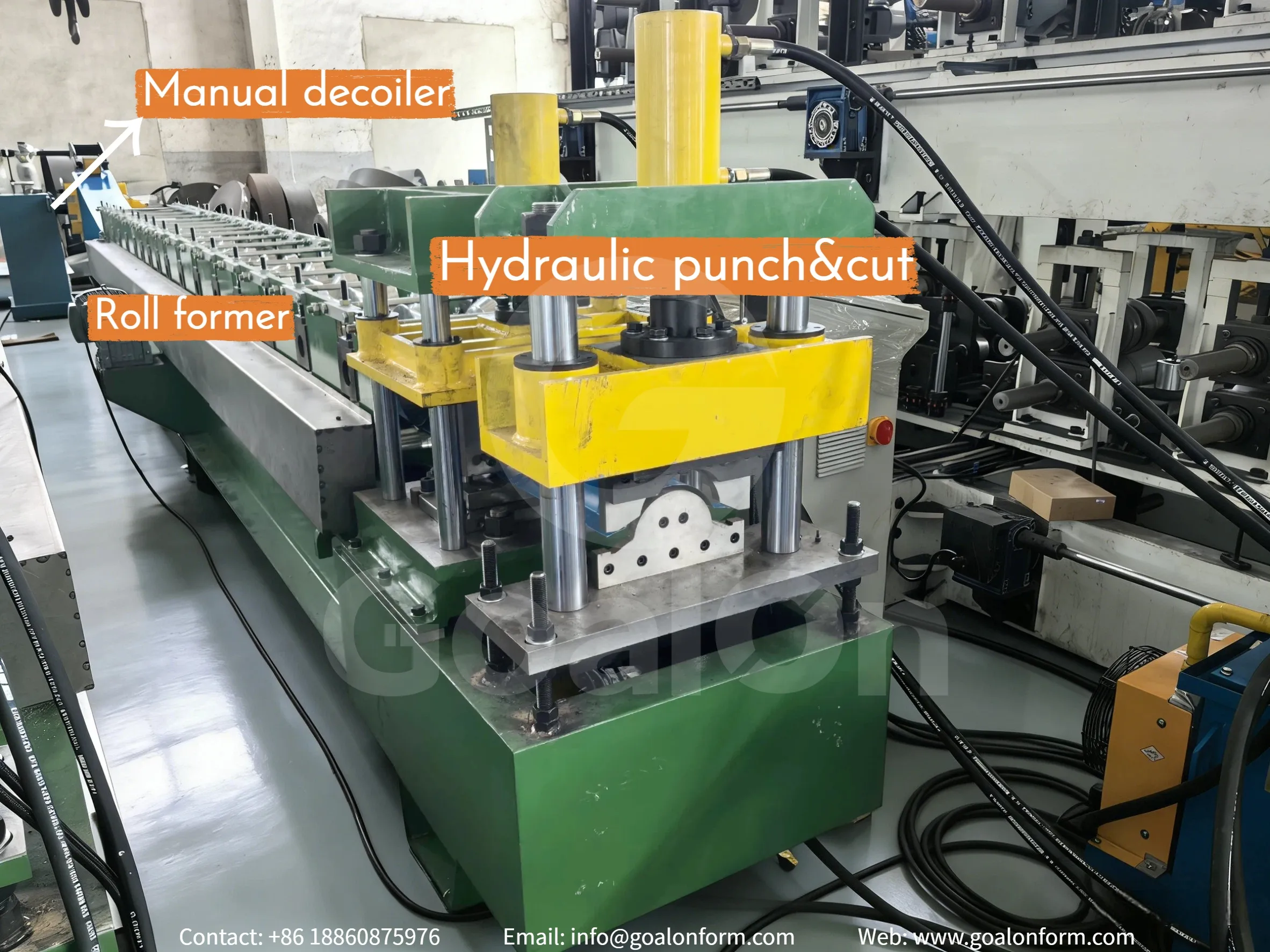

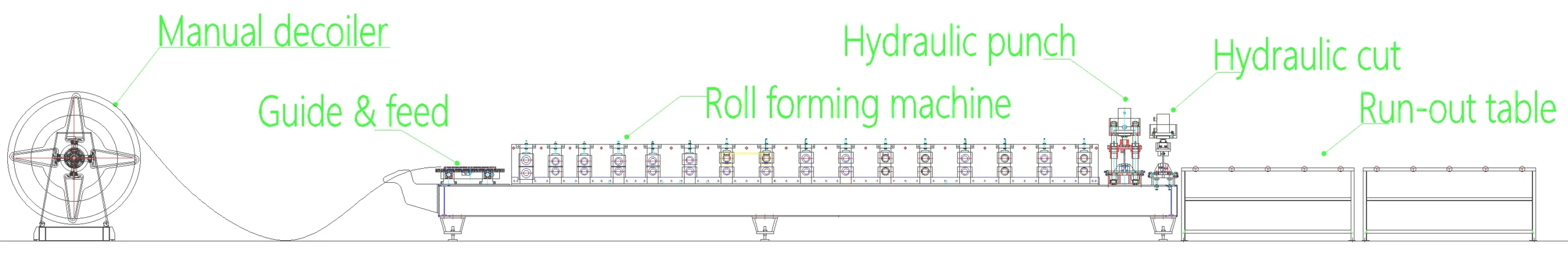

Decoiler → Guiding → Roll forming machine → Hydraulic punch → Hydraulic cut → Out table
| 2. Basic Specifications of This Line | |||
| Speed | 15-20m/min,customizable | Operator Needed | 1-2 persons |
| Machine Frame | Wall panel | Driving System | Chains |
| Dimension | LWH 7*1.8*2m | Weight | 15T |
| Container | 1*40GP+(1*20GP) | Power Supply | Customizable |
| 3. Machine Components | |||
| Decoiler*1 | Roll forming machine*1 | Cutting unit*1 | PLC control cabinet*1 |
| Out table*2 | Tool box*1 | Spare parts | Punching unit*1 |
*For reference only; subject to the actual machines.
Profile Information
Half round ridge caps cover roof ridges, featuring smooth curved profiles; compatible with IBR trapezoidal panels and corrugated wave panels, widely used in Africa, South America, and Southeast Asia.
This ridge cap features folded edges to reduce sharpness, protect workers, and minimize the risk of corrosion at exposed metal edges.
How Does The Roll Forming Machine Work?
Machine Details
Steel Coil Decoiler
Steel coil decoiler is used to unwind metal coils smoothly for feeding into roll forming, cutting, or punching processes.
Manual decoiler is a basic and economical option, while motorized and hydraulic decoilers are also available for higher efficiency and automation:
| Power Type | Manual | Steel Coil Width | Max 1250mm |
| Loading Capacity | 5/7/10 Ton | Expanding Range | 460-50mm |
Roll Forming Machine

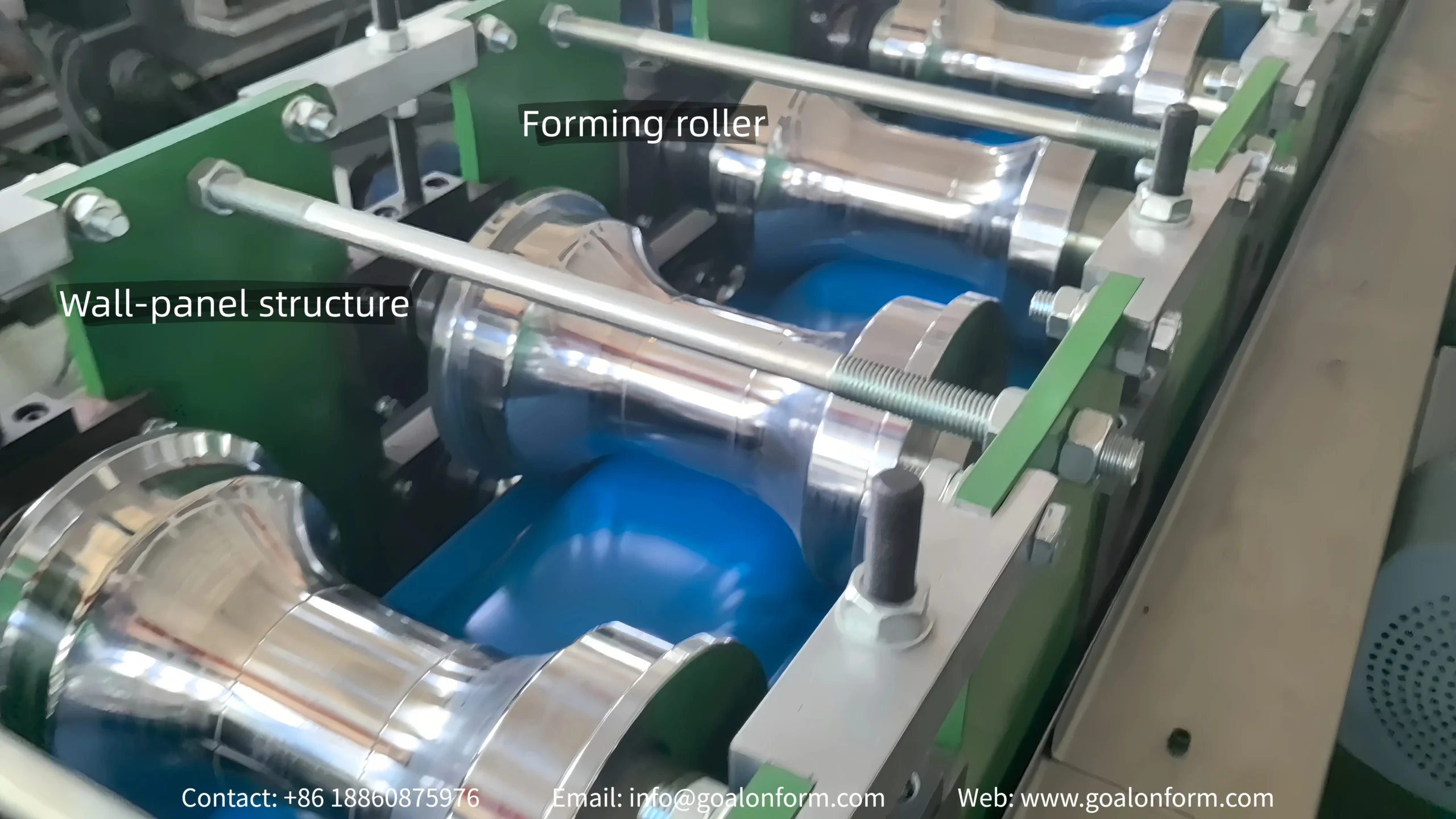

The roll forming machine gradually shapes flat coils into precise half round ridge caps through multiple forming stations. Wall panel frame ensures rigidity, while chain driving provides stable torque transmission. Optional upgrades include gearbox drive or servo adjustment for higher precision and speed.
| Speed | 20m/min | Forming Station | 18 Stands |
| Motor Power | 7.5Kw | Shaft Diameter | 76mm, solid |
| Driving System | Chain | Roller Material | Gcr15,HRC58-62° |
| Frame Structure | Wall panel | Shaft Material | 40Cr heat treatment |
Punching & Cutting Device

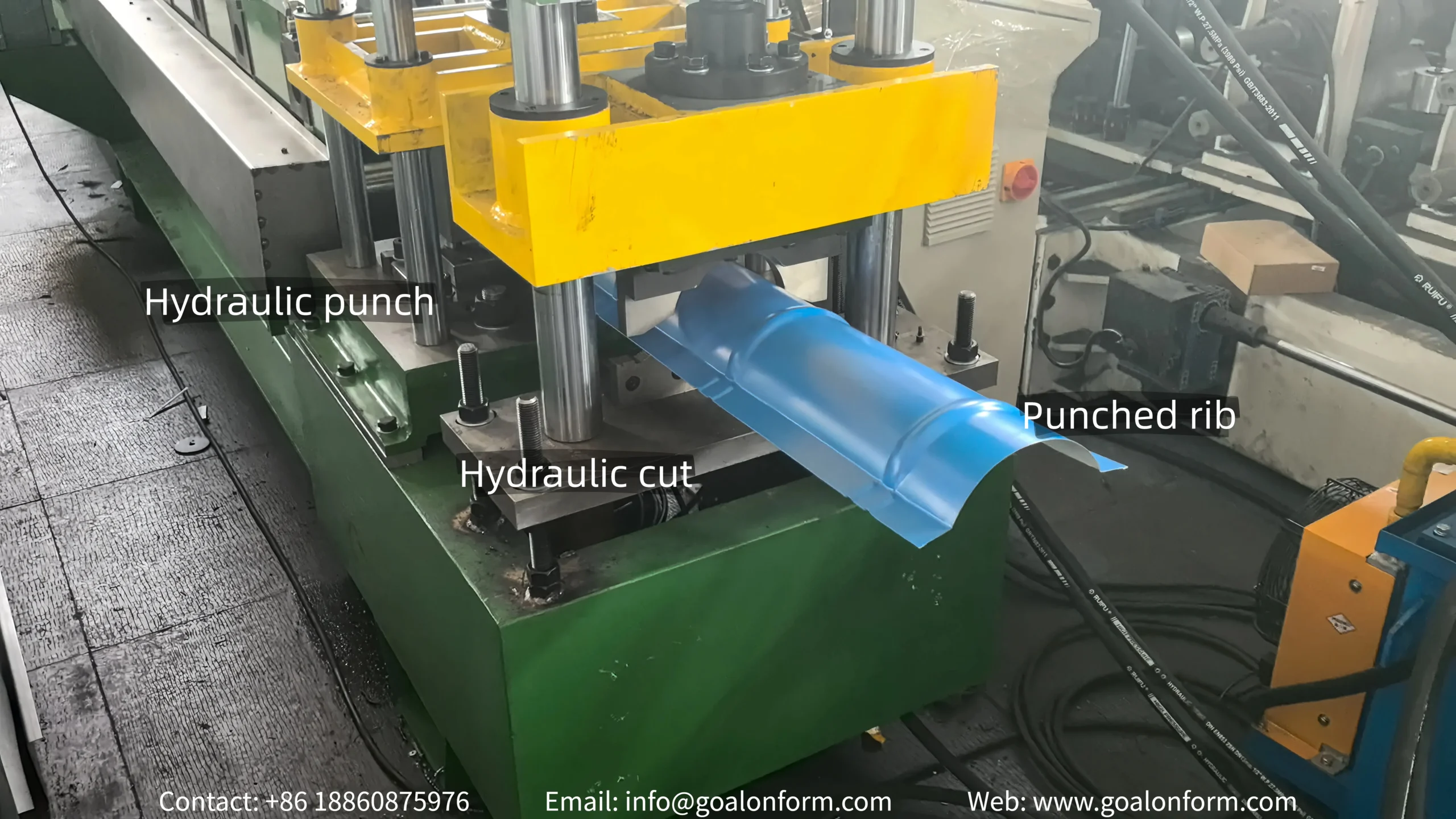

After roll forming, a hydraulic punch forms strengthening ribs on the ridge cap, followed by hydraulic cutting for accurate length control.
The line uses a stop-to-punch and stop-to-cut system, where the machine pauses during punching and cutting to ensure precision and prevent material movement.
This configuration fully meets the standard production requirements of ridge caps, with a normal speed of 15–18 m/min. High-speed customized solutions are also available for larger production demands.
| Power Type | Hydraulic cut | When Cutting | Forming stops |
| Blade Material | Cr12MoV | Length Tolerance | ≤±1mm |
PLC Control Cabinet & Encoder
In a cold roll forming line, the encoder works with the PLC to provide real-time feedback on material position and speed, ensuring precise feed, synchronized forming, and accurate length control for cutting and punching.
Production speed, product length, and quantity can be set on the control cabinet. The display language can be customized according to customer requirements.
Customizable Roof Panel Roll Forming Solutions
Our Half Round Ribed Ridge Cap Roll Forming Machine offers comprehensive customization options to meet diverse roofing requirements for residential buildings, villas, commercial properties, and other construction projects.
From adjustable profile dimensions to integrated perforation and embossing units, we tailor every component for high-speed continuous production.
| Material | Thickness | Production speed | Automation level |
| Perforation | Embossing | Cutting | Machine color |
| One machine for multiple profile sizes | …… | ||
Comprehensive Services & Support
Safety Designs
Optional safety covers are available to protect operators from moving components while improving workplace safety and compliance.
Warranty
2-year warranty with lifetime technical support and after-sales service.
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Besides paid on-site installation and training services, we provide installation and operation manuals, along with operation videos before shipment for guidance.
Roll Forming Machines Delivered Worldwide
From our factory to customers across the globe.
Our roll forming machines have been successfully delivered to customers across multiple countries and industries, including construction, storage systems, solar mounting, and steel fabrication.
Each project reflects our engineering expertise, manufacturing capability, and commitment to providing reliable metal forming solutions for long-term customer success.
Frequently Asked Question
The standard configuration operates at 15–20 m/min. Higher-end configurations can reach 30–40 m/min, and even higher speeds can be customized according to specific production requirements.
Lead times range from 30-40 days post-order, varying by customization level and supplier location. We typically require 35 days for standard machines.
Yes. After communicating with you about your requirements, we can first provide a quotation and a similar solution based on a profile that is close to your needs for your reference. Once the exact drawing becomes available, we can update the quotation and configuration accordingly at any time.
Yes. We are a professional manufacturer that produces both standard market profiles and customized profiles. We can also sign an agreement to ensure that your drawing will not be shared with other parties.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
It depends on customer requirements. Edge folding improves safety by eliminating sharp edges and enhances installation quality, especially for manual handling and roofing applications.
