IBR roof panel roll forming line, designed for producing essential roofing sheets widely used in residential and industrial building construction.
Reliable operation
Easy maintenance
Consistent panel quality
Cost-effective investment for long-term roofing sheet production
Customized solutions available for various IBR panel profiles, covering different widths, rib heights, and market standards.
Ideal for roofing sheet manufacturers, construction material suppliers, and trading companies seeking stable, scalable production capacity.
1. Flow Chart

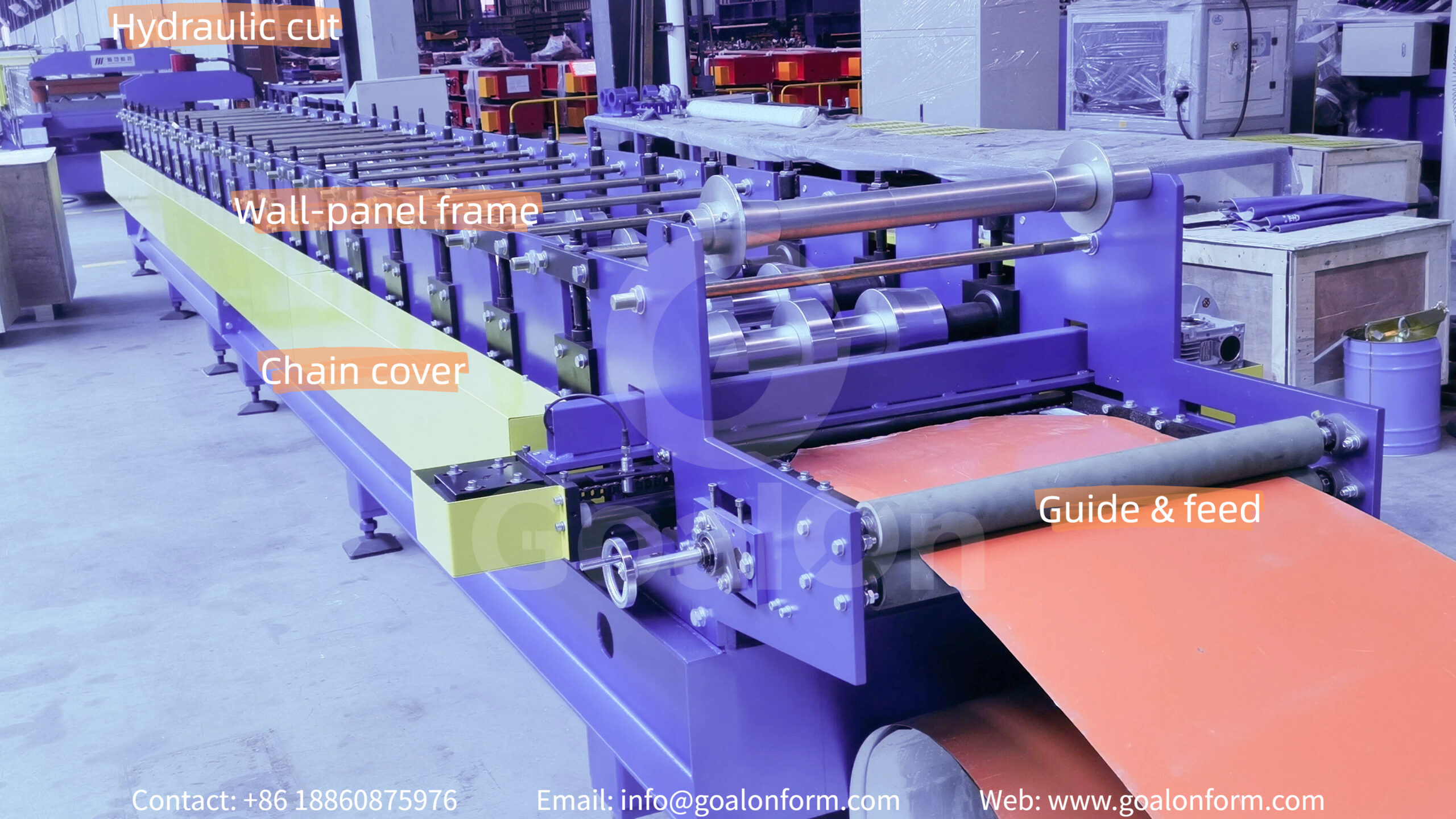

Decoiler → Guiding → Roll forming machine → Hydraulic cut → Out table
| 2. Basic Specifications of This Line | |||
| Speed | 15-20m/min,customizable | Operator Needed | 1-2 persons |
| Machine Frame | Wall panel | Driving System | Chains |
| Dimension | LWH 7*1.8*2m | Weight | 15T |
| Container | 1*40GP+(1*20GP) | Power Supply | Customizable |
| 3. Machine Components | |||
| Decoiler*1 | Roll forming machine*1 | Cutting unit*1 | PLC control cabinet*1 |
| Out table*2 | Tool box*1 | Spare parts | |
*For reference only; subject to the actual machines.
Profile Information

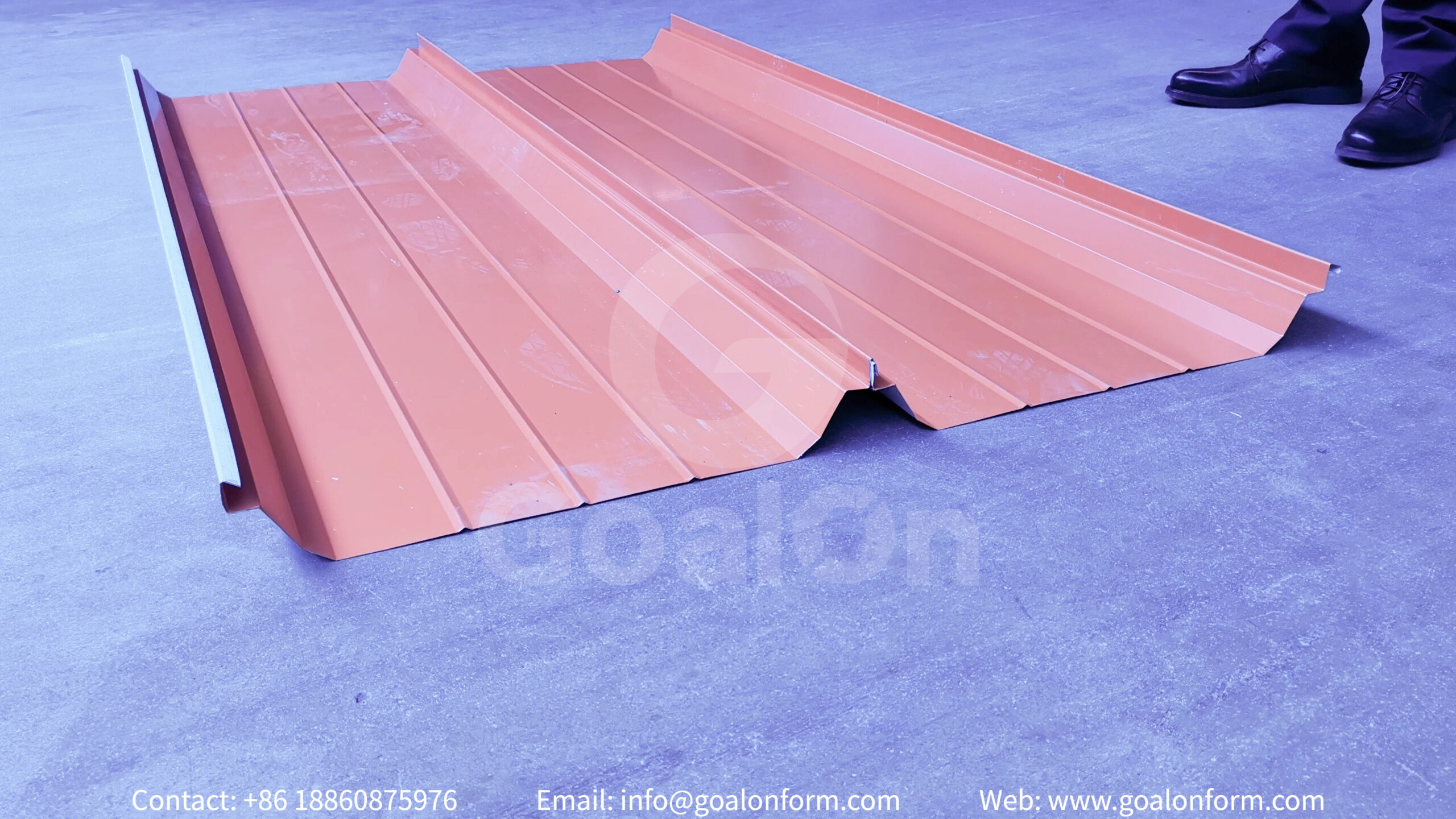

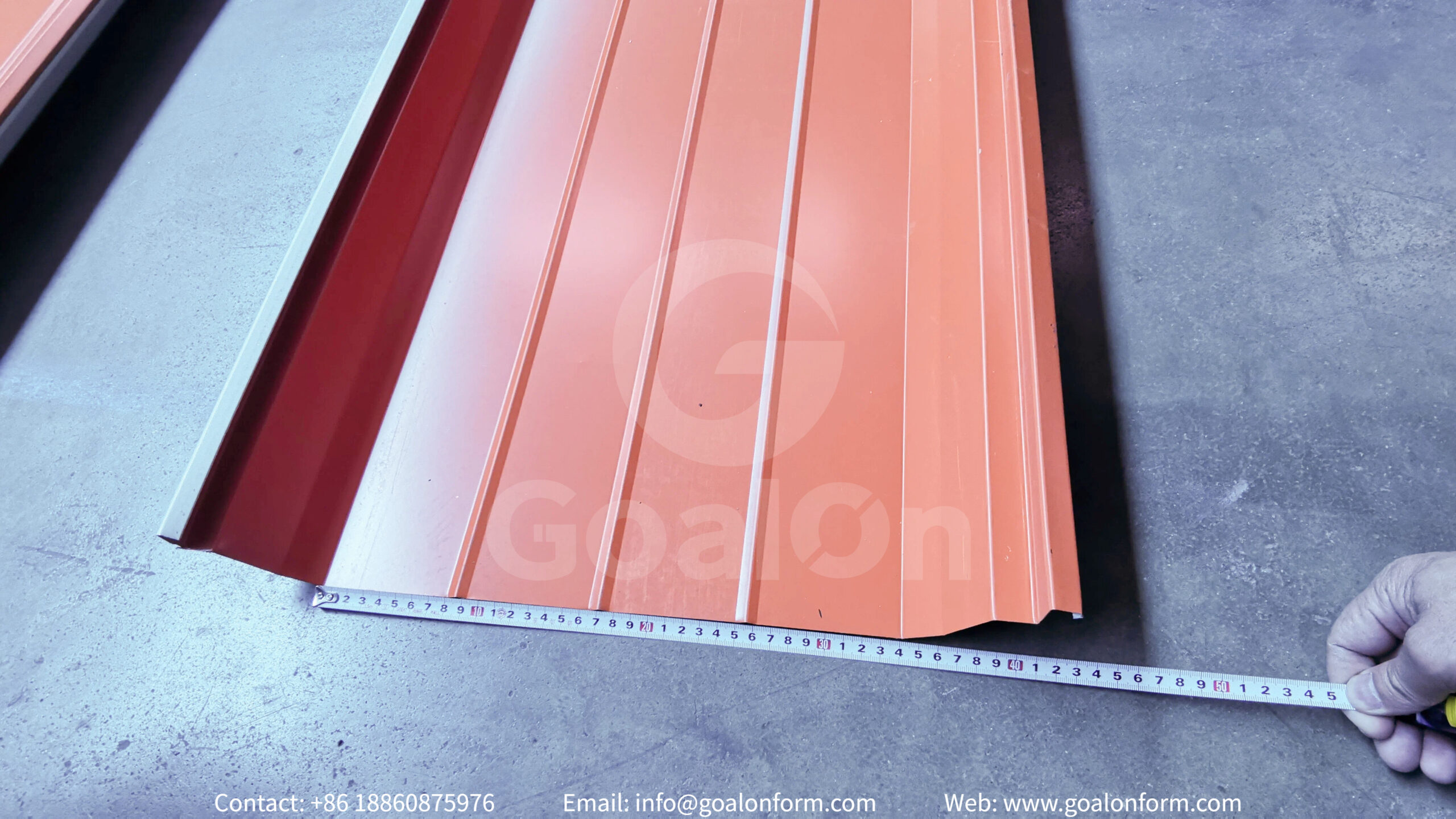

IBR roof panel is widely used for roofing and wall cladding in residential, commercial, and industrial buildings. It features a trapezoidal rib profile with high ribs and flat sections, which improves strength, enhances water drainage, and ensures good load-bearing performance.
This design makes it popular in regions such as Africa, Southeast Asia, and South America.
How Does The Roll Forming Machine Work?
Machine Details
Steel Coil Decoiler

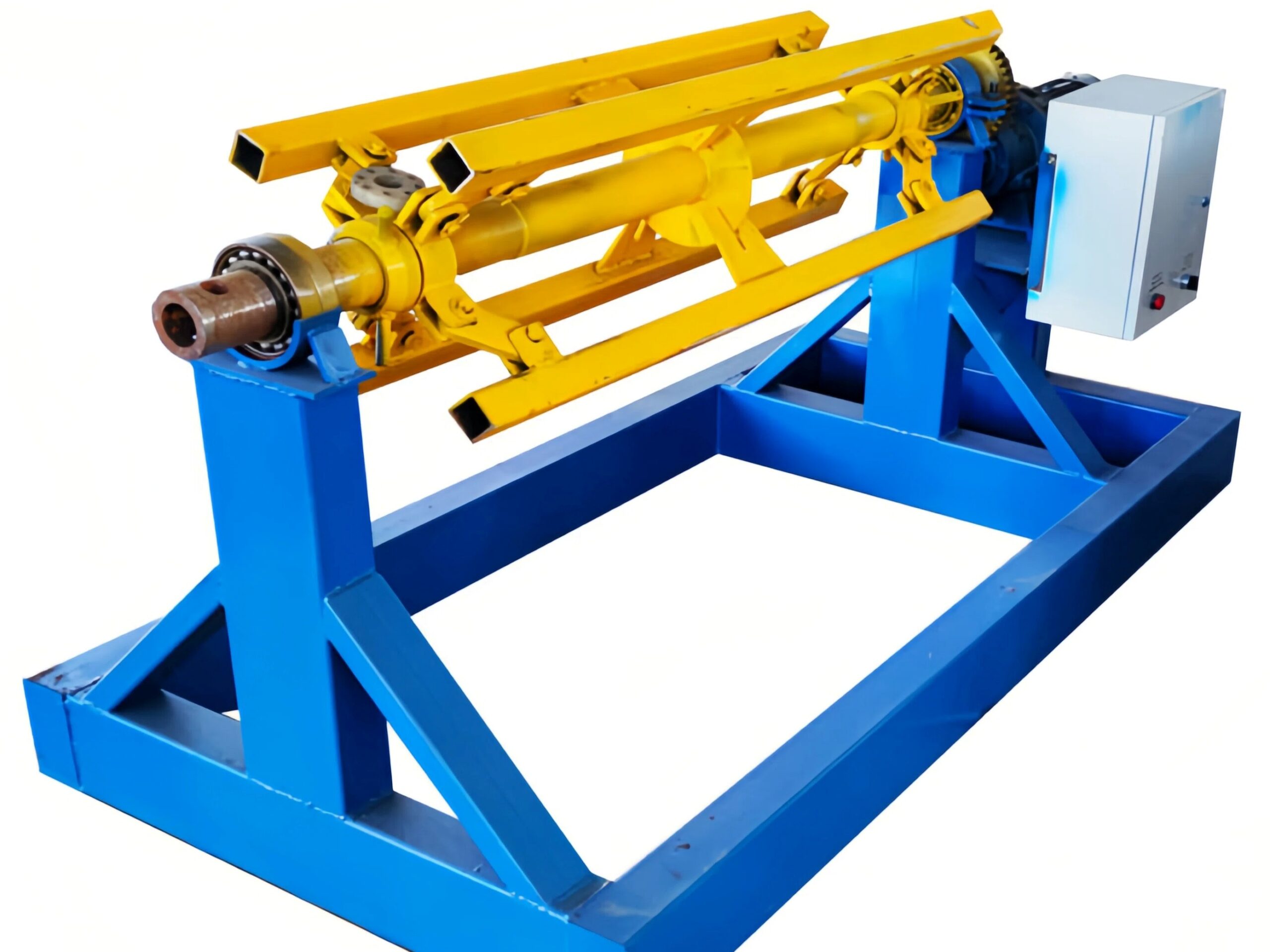

Steel coil decoiler is used to unwind metal coils smoothly for feeding into roll forming, cutting, or punching processes.
Manual decoiler is a basic and economical option, while motorized and hydraulic decoilers are also available for higher efficiency and automation:
| Power Type | Manual | Steel Coil Width | Max 1250mm |
| Loading Capacity | 5/7/10 Ton | Expanding Range | 460-50mm |
Roll Forming Machine

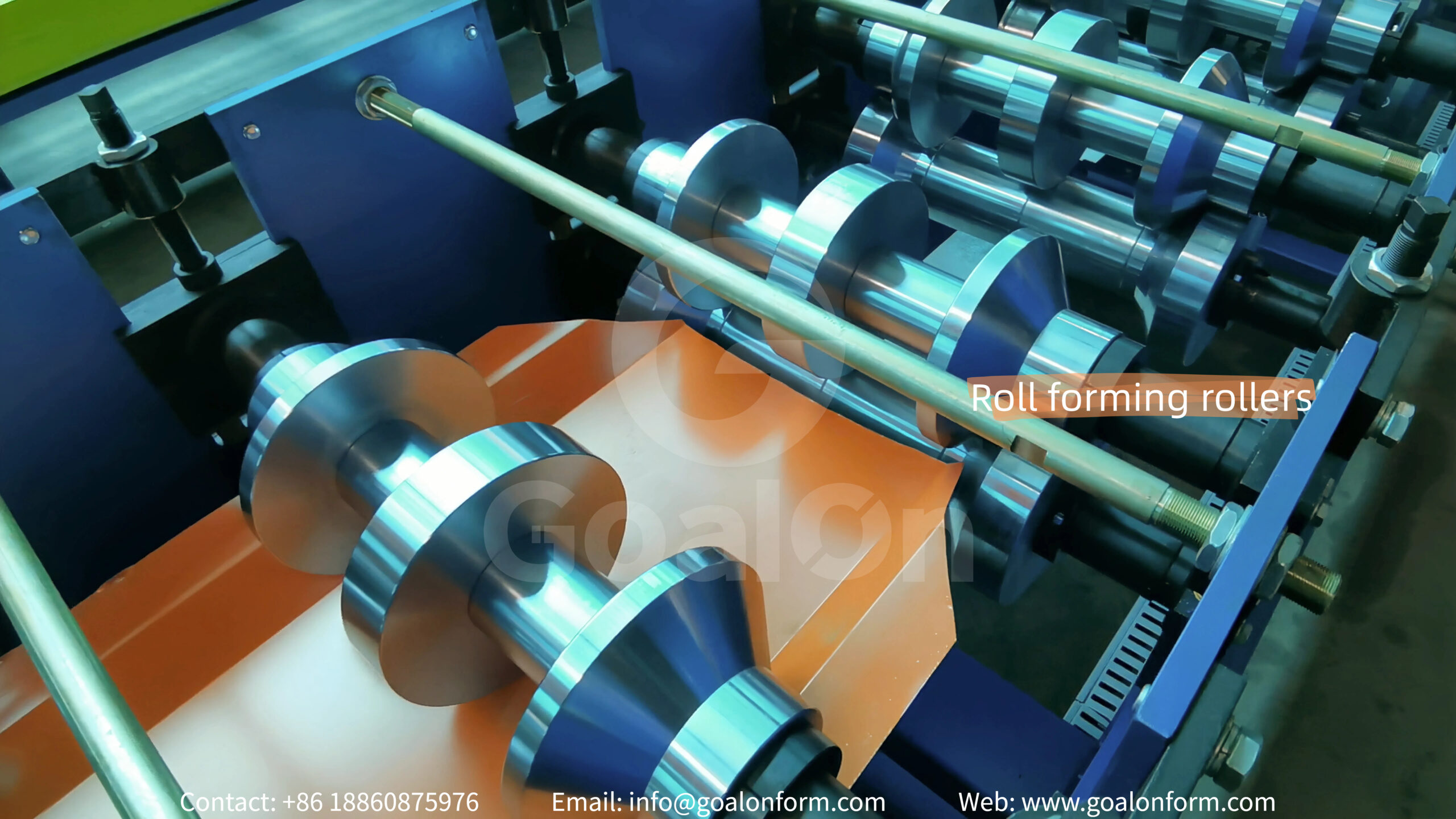

The roll forming machine is the core unit for shaping IBR roof panels, using multiple forming stations to gradually form the trapezoidal profile.
It ensures precise dimensions, smooth surface finish, stable operation, and consistent panel quality, making it suitable for continuous, high-efficiency production.
| Speed | 20m/min | Forming Station | 18 Stands |
| Motor Power | 7.5Kw | Shaft Diameter | 76mm, solid |
| Driving System | Chain | Roller Material | Gcr15,HRC58-62° |
| Frame Structure | Wall panel | Shaft Material | 40Cr heat treatment |
Cutting Device
After cutting, IBR roof panels can be collected by an out table or an auto stacker, depending on production requirements.
Convyor
After cutting, IBR roof panels can be collected by an out table or an auto stacker, depending on production requirements.
Safety Designs

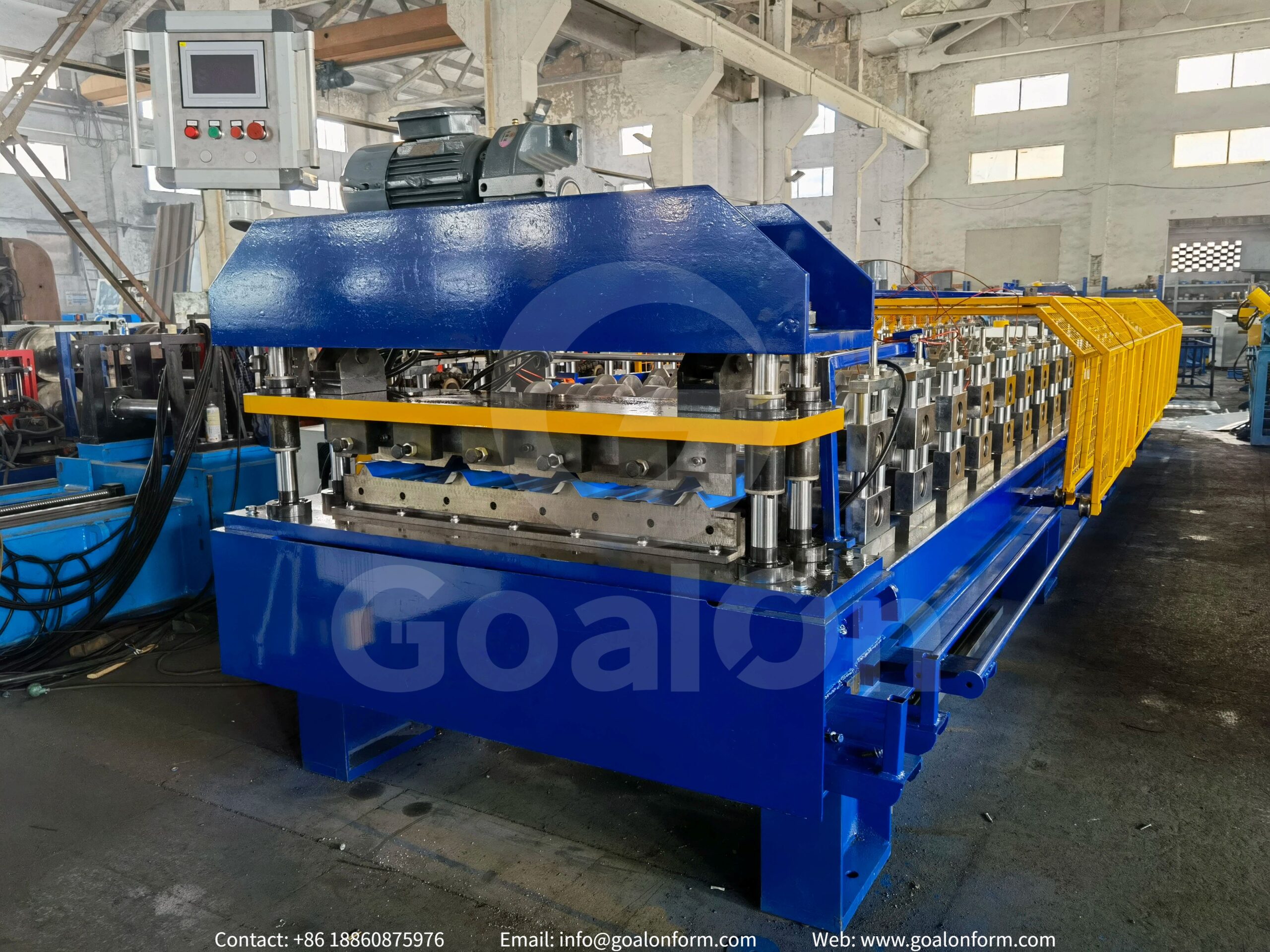

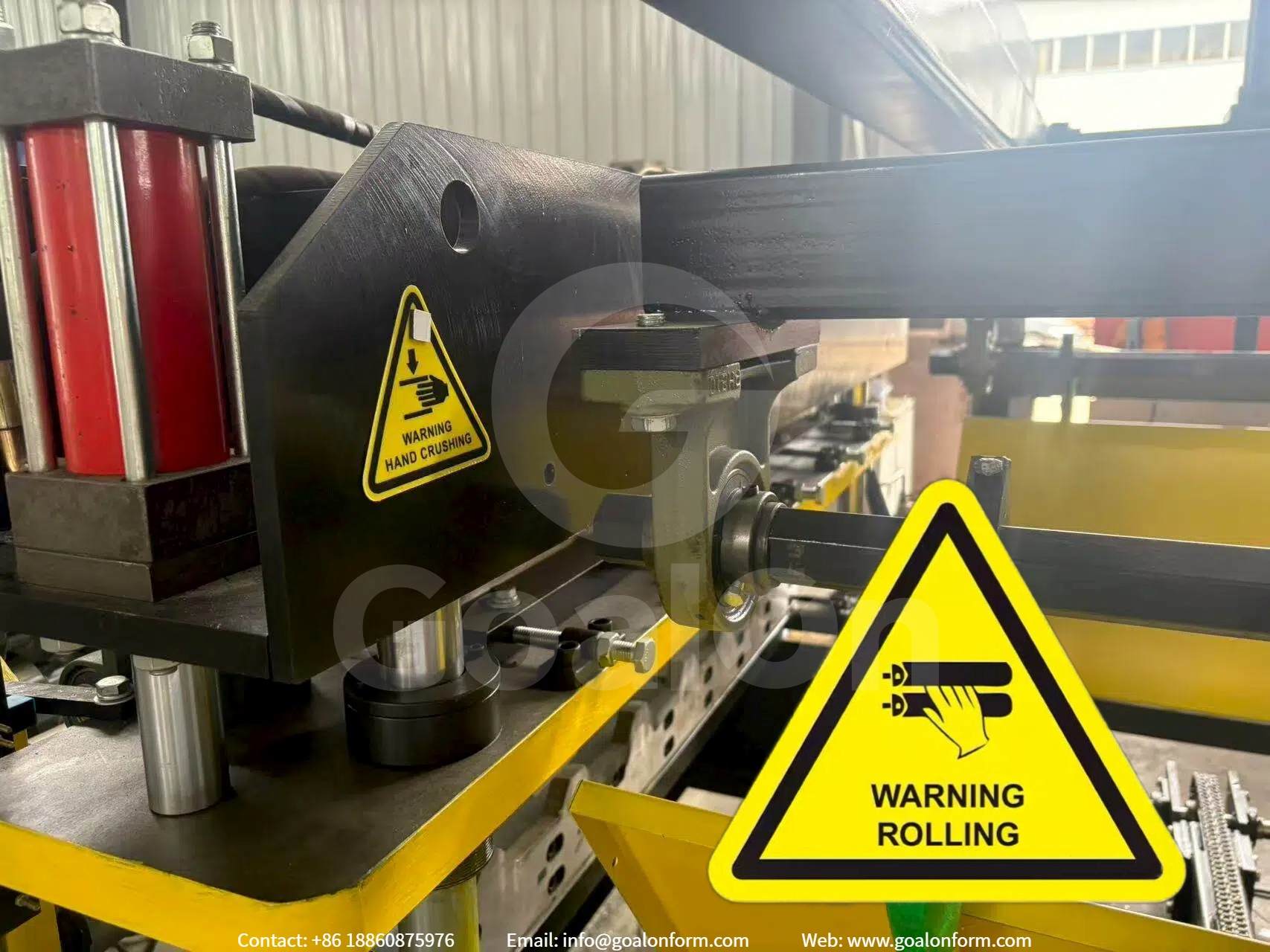

Chain covers are installed to protect operators and extend chain service life. Full-machine mesh covers (slidable) provide visibility with safety. Flip-type covers ensure convenient access with enhanced protection.
Safety signs are applied to continuously alert operators.
PLC Control Cabinet & Encoder

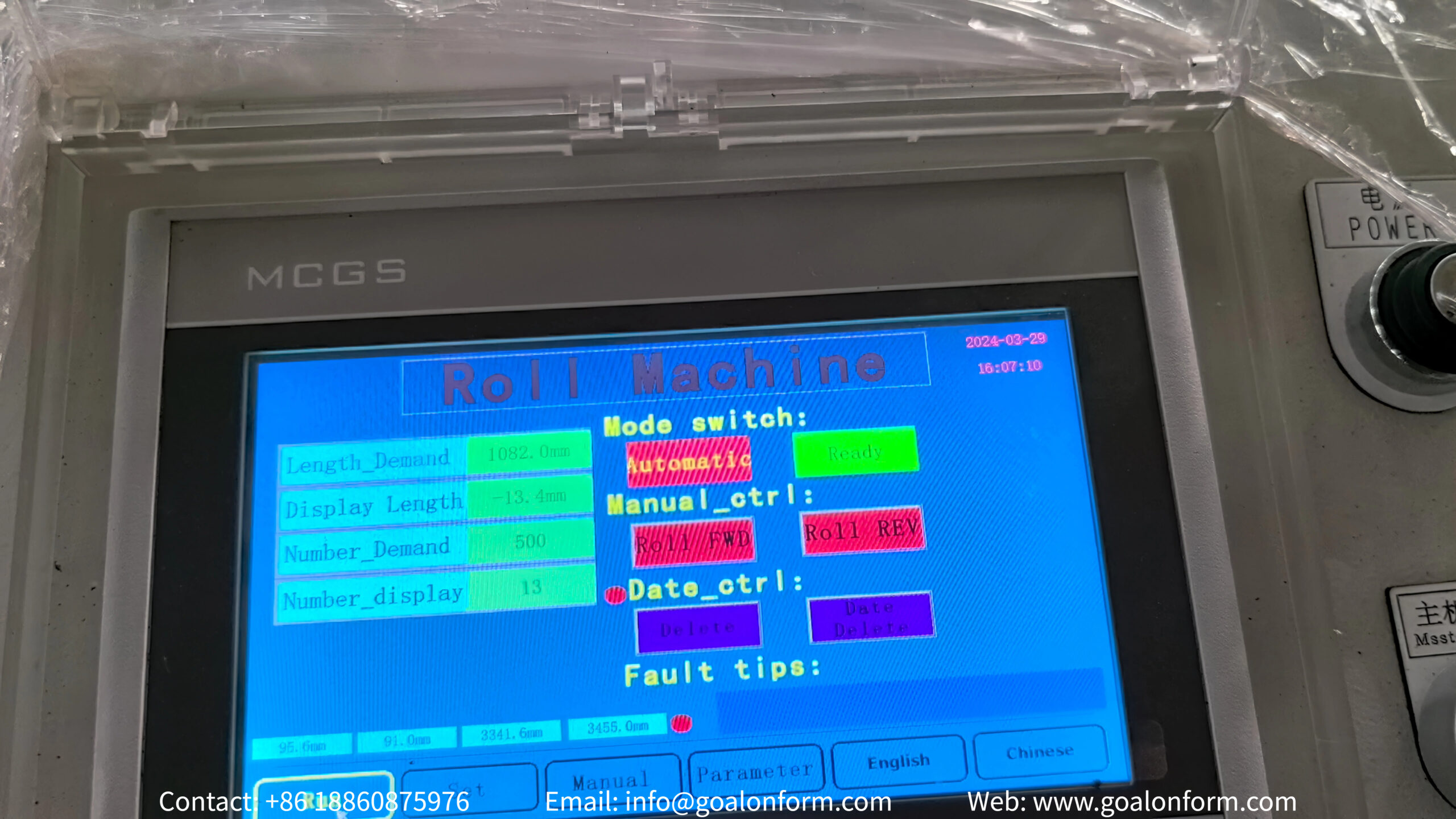

In a cold roll forming line, the encoder works with the PLC to provide real-time feedback on material position and speed, ensuring precise feed, synchronized forming, and accurate length control for cutting and punching.
Production speed, product length, and quantity can be set on the control cabinet. The display language can be customized according to customer requirements.
Other Customization Details
The machine comes standard with a blue main color and orange accents. Other colors can be customized free of charge.
The default metal nameplate is Goalon, which can also be customized at no additional cost.

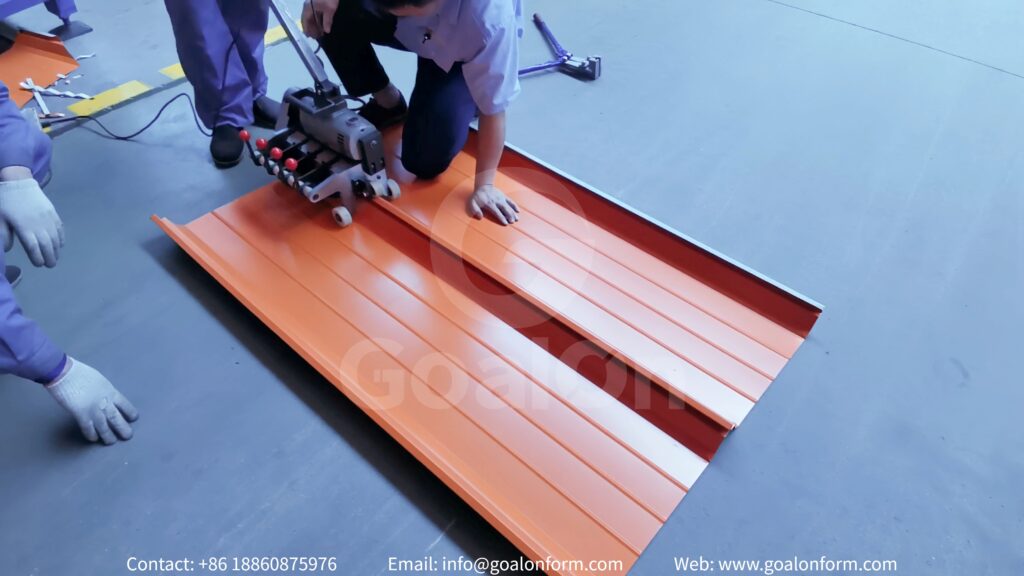

Optional: Electric Seaming Machine
After cutting, IBR roof panels can be collected by an out table or an auto stacker, depending on production requirements.
Basic Services
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
To help customers save both time and financial costs on machine installation and training, especially on on-site engineer service fees.
Based on the actual configuration of each machine, we customize the installation manual and operating manual. During the testing phase and before shipment, we record installation and operation videos for guidance.
The standard configuration operates at 15–20 m/min. Higher-end configurations can reach 30–40 m/min, and even higher speeds can be customized according to specific production requirements.
Lead times range from 30-50 days post-order, varying by customization level and supplier location. We typically require 45 days for standard machines.
Yes. After communicating with you about your requirements, we can first provide a quotation and a similar solution based on a profile that is close to your needs for your reference. Once the exact drawing becomes available, we can update the quotation and configuration accordingly at any time.
Yes. We are a professional manufacturer that produces both standard market profiles and customized profiles. We can also sign an agreement to ensure that your drawing will not be shared with other parties.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
30% deposit is paid before production, the balance paid after inspection confrmation, before shipment.
