Production Line

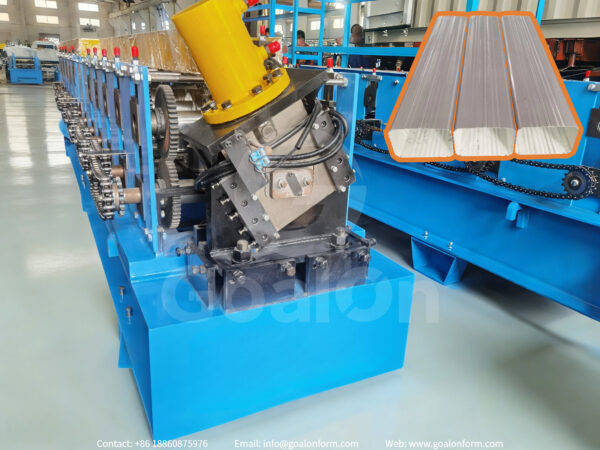

This square downspout pipe roll forming line produces closed rainwater drainage profiles with stable seaming performance, smooth profile shaping, and efficient continuous production for building drainage systems.
- Stable seam locking
- Efficient continuous production
- Low maintenance transmission

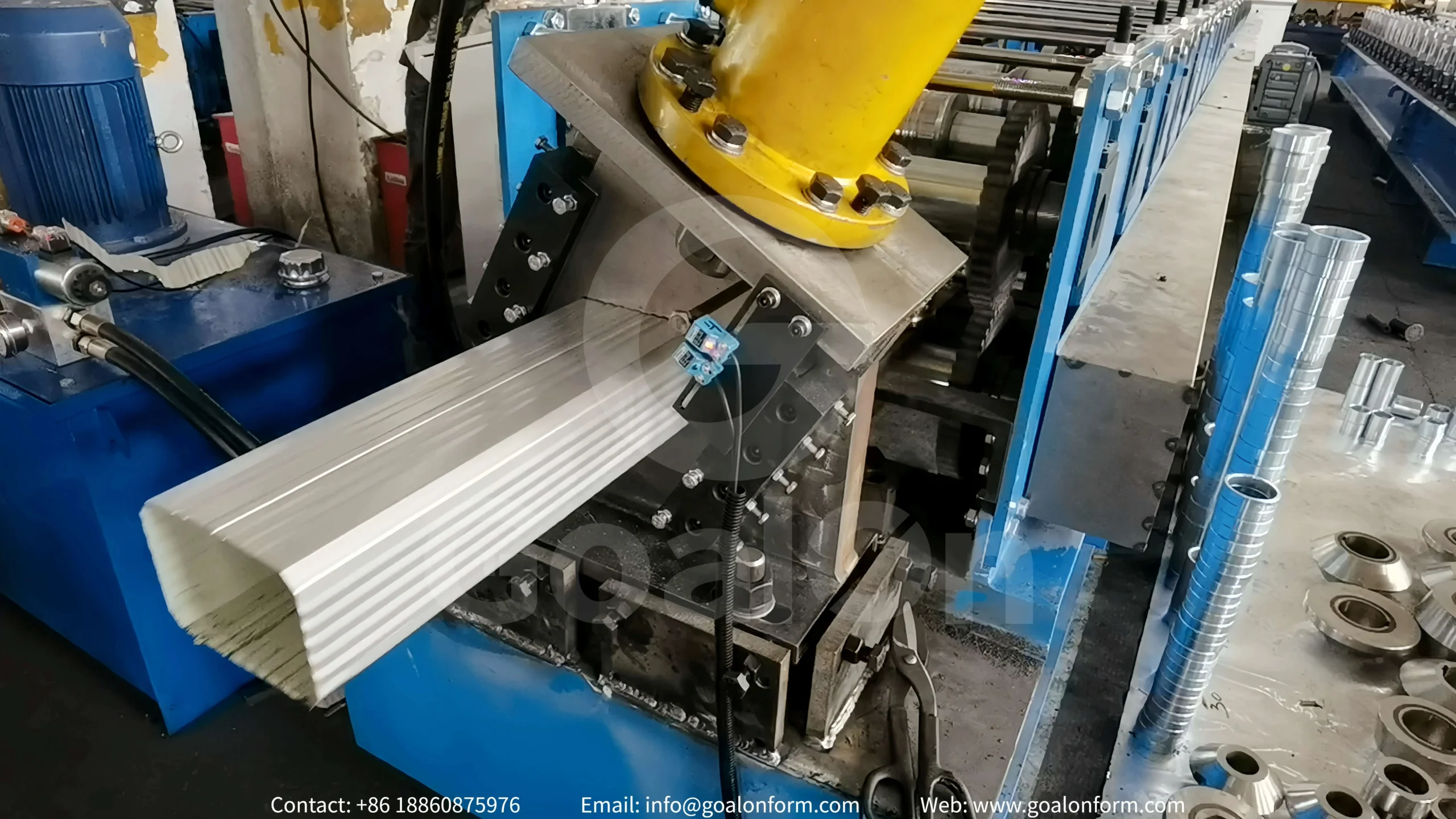

- Reliable hydraulic cutting
We can customize the production line for different square downspout pipe dimensions, seam structures, material thicknesses, embossing designs, and production speed requirements.
Recommended for gutter and rainwater system manufacturers, roofing accessory suppliers, and building material factories requiring stable production of square drainage pipes in multiple sizes.

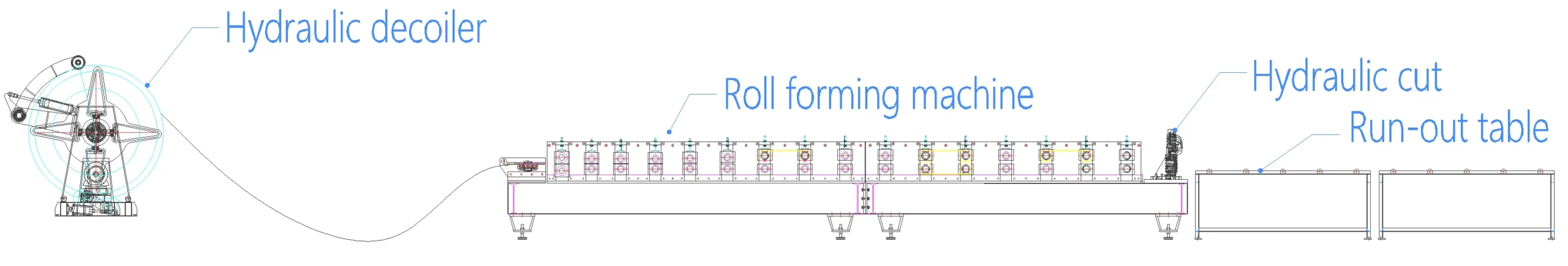

1. Flow Chart

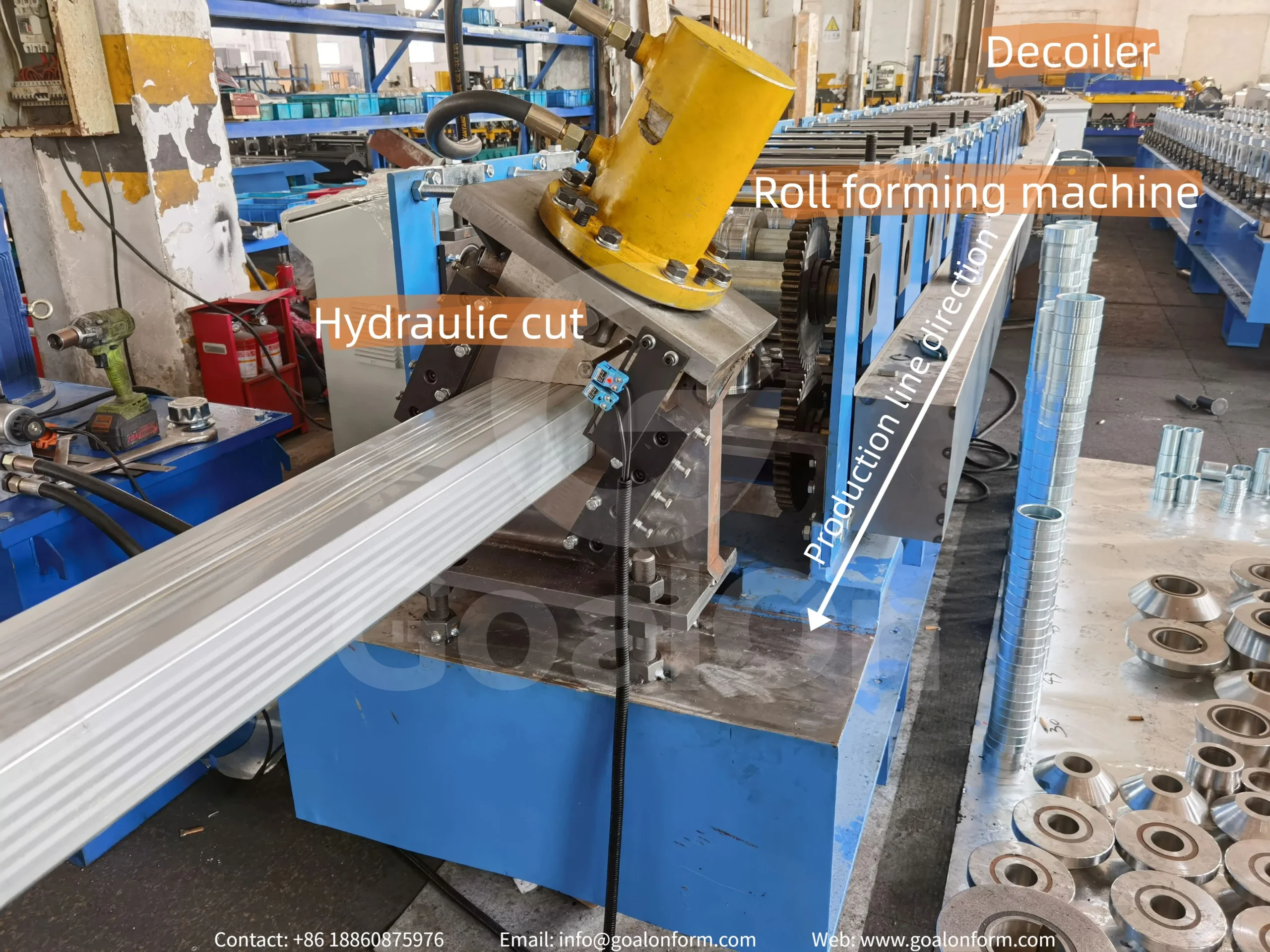

Decoiler → Roll forming machine → Hydraulic cut → Out table
| 2. Basic Specifications of This Line | |||
| Speed | 15-20m/min,customizable | Operator Needed | 1-2 persons |
| Machine Frame | Wall panel | Driving System | Chains |
| Dimension | LWH 7*1.8*2m | Weight | 15T |
| Container | 1*40GP+(1*20GP) | Power Supply | Customizable |
| 3. Machine Components | |||
| Decoiler*1 | Roll forming machine*1 | Cutting unit*1 | PLC control cabinet*1 |
| Out table*2 | Tool box*1 | Spare parts | |
*For reference only; subject to the actual machines.
Profile Information
Square downspout pipes are used for roof rainwater drainage. Their closed square shape provides clean appearance, efficient water flow, and compatibility with various building designs and sizes.
Square downspout pipes commonly use 0.4-0.8mm galvanized steel, color-coated steel, or aluminum coils because these materials provide corrosion resistance, outdoor durability, and stable forming performance.
How Does The Roll Forming Machine Work?
Machine Details
Steel Coil Decoiler
Steel coil decoiler is used to unwind metal coils smoothly for feeding into roll forming, cutting, or punching processes.
Manual decoiler is a basic and economical option, while motorized and hydraulic decoilers are also available for higher efficiency and automation:
| Power Type | Manual | Steel Coil Width | Max 1250mm |
| Loading Capacity | 3/5/7/10 Ton | Expanding Range | 460-50mm |
Roll Forming Machine

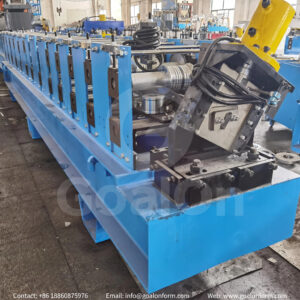

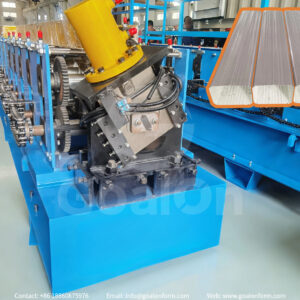

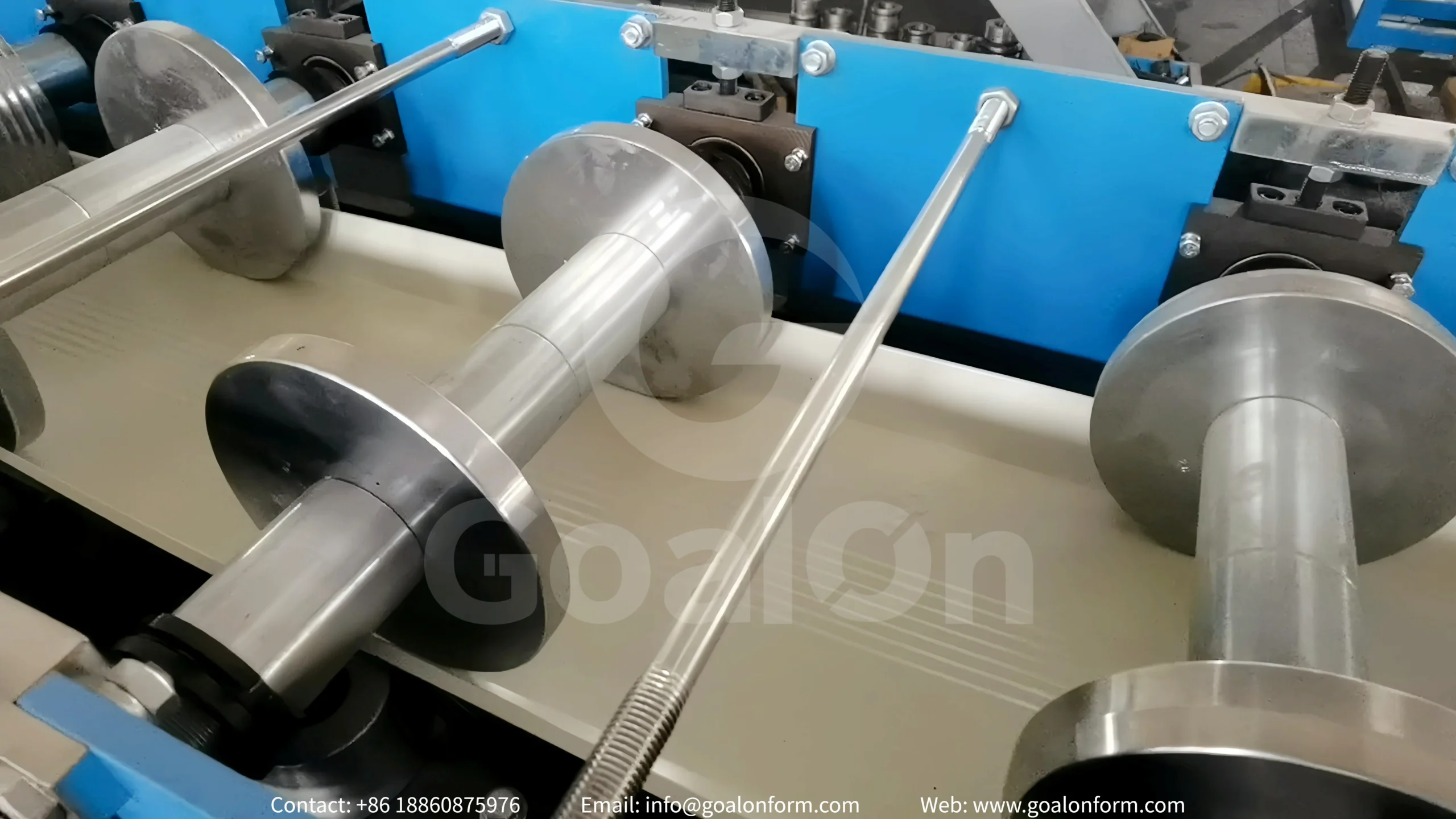

The wall panel chain-drive roll forming machine gradually shapes flat steel coils into closed square downspout pipes through multiple forming stations.

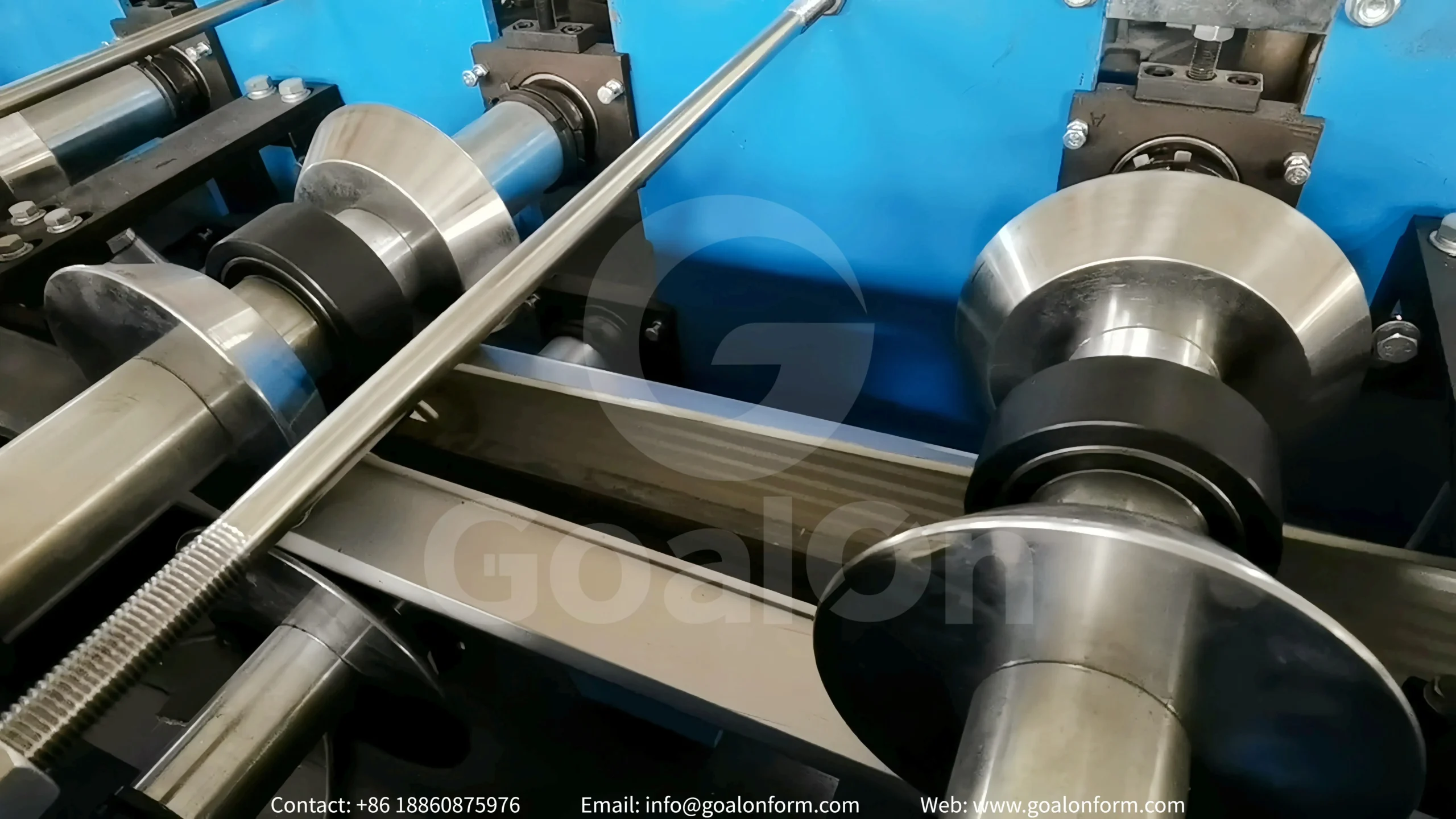

Specialized seaming rollers lock and press the joint tightly for stable pipe structure and clean appearance.
Compared with gearbox-driven configurations, chain transmission offers lower investment cost and easier maintenance for standard production requirements.
| Speed | 20m/min | Forming Station | 18 Stands |
| Motor Power | 7.5Kw | Shaft Diameter | 76mm, solid |
| Driving System | Chain | Roller Material | Gcr15,HRC58-62° |
| Frame Structure | Wall panel | Shaft Material | 40Cr heat treatment |
Safety Designs

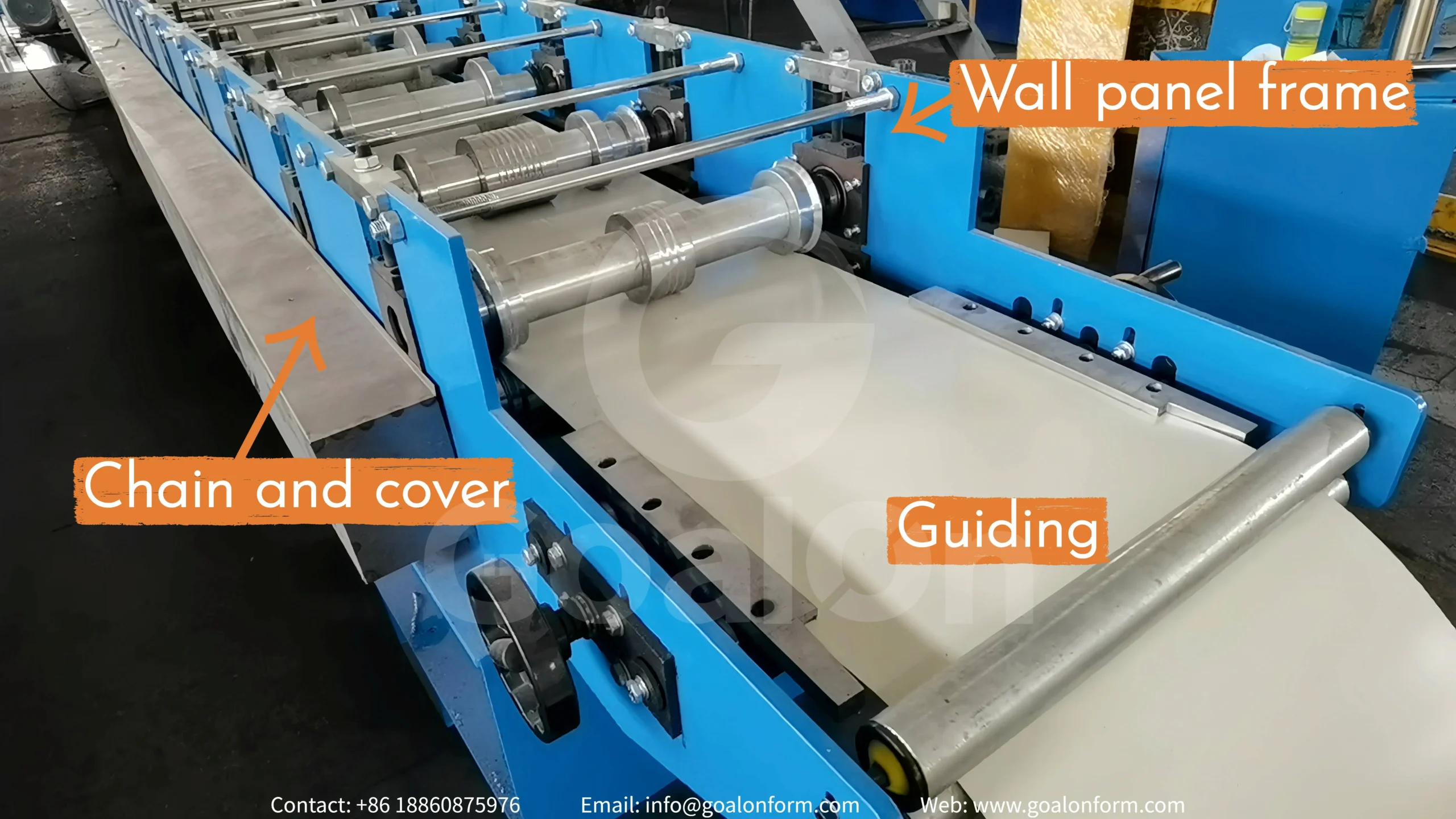

Chain covers are installed to protect operators and extend chain service life. Full-machine mesh covers (slidable) provide visibility with safety. Flip-type covers ensure convenient access with enhanced protection.
Safety signs are applied to continuously alert operators.
PLC Control Cabinet & Encoder
In a cold roll forming line, the encoder works with the PLC to provide real-time feedback on material position and speed, ensuring precise feed, synchronized forming, and accurate length control for cutting and punching.
Production speed, product length, and quantity can be set on the control cabinet. The display language can be customized according to customer requirements.
Other Customization Details
The machine comes standard with a blue main color and orange accents. Other colors can be customized free of charge.
The default metal nameplate is Goalon, which can also be customized at no additional cost.
Basic Services
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Free customized manuals, operationvideos, installationvideos, and remote video supportare provided.
The standard configuration operates at 15–20 m/min. Higher-end configurations can reach 30–40 m/min, and even higher speeds can be customized according to specific production requirements.
Lead times range from 30-50 days post-order, varying by customization level and supplier location. We typically require 45 days for standard machines.
Specialized seaming rollers gradually press and lock the profile edges together during roll forming, creating a stable closed square downspout pipe structure.
Yes. Optional embossing or pattern rolling solutions can be integrated according to customer market preferences and architectural appearance requirements.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
30% deposit is paid before production, the balance paid after inspection confrmation, before shipment.
