Production Line
A double layer IBR roof panel roll forming machine delivering efficient, flexible production of two profiles on one line, reducing space, cost, and changeover time.
- Dual profiles in one machine
- Quick layer switching
- Reduced equipment cost
- Space-saving design
- Lower labor demand
- Flexible for mixed orders
- Simplified maintenance
We customize the machine for various IBR roof panel profiles, adapting forming stations, roller design, and cutting systems to match specific drawings and market standards.
Recommended Customer Groups (15–30 words)
Ideal for roofing sheet manufacturers, building material suppliers, and contractors seeking flexible production, limited workshop space, and the ability to handle multiple panel specifications efficiently.
1. Flow Chart

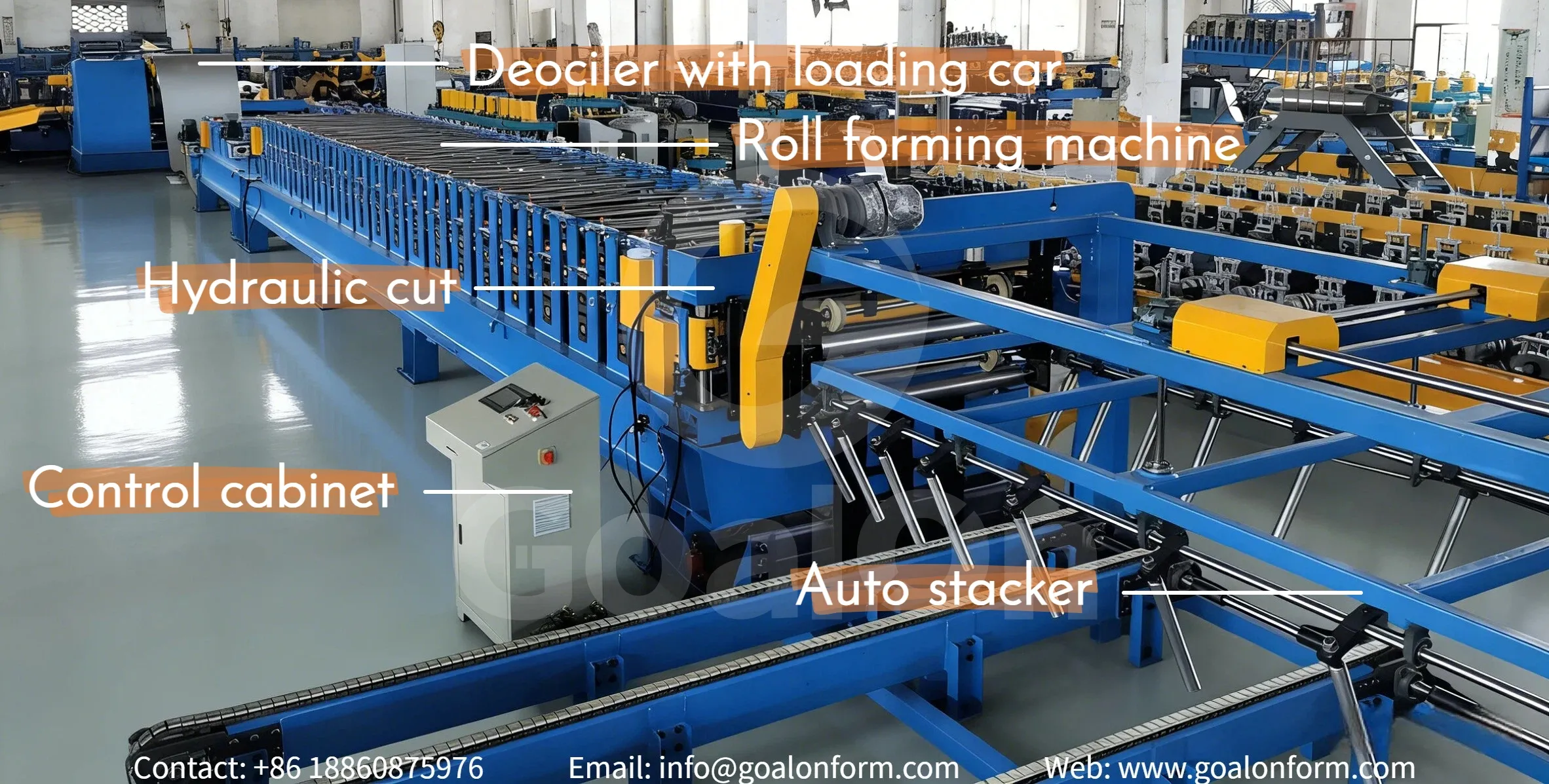

Decoiler → Guiding → Roll forming machine → Hydraulic cut → Auto Stacker
| 2. Basic Specifications of This Line | |||
| Speed | 15-20m/min,customizable | Operator Needed | 1-2 persons |
| Machine Frame | Wall panel | Driving System | Chains |
| Dimension | LWH 7*1.8*2m | Weight | 15T |
| Container | 1*40GP+(1*20GP) | Power Supply | Customizable |
| 3. Machine Components | |||
| Decoiler*1 | Roll forming machine*1 | Cutting unit*2 | PLC control cabinet*1 |
| Auto stacker*1 | Tool box*1 | Spare parts | |
*For reference only; subject to the actual machines.
Profile Information

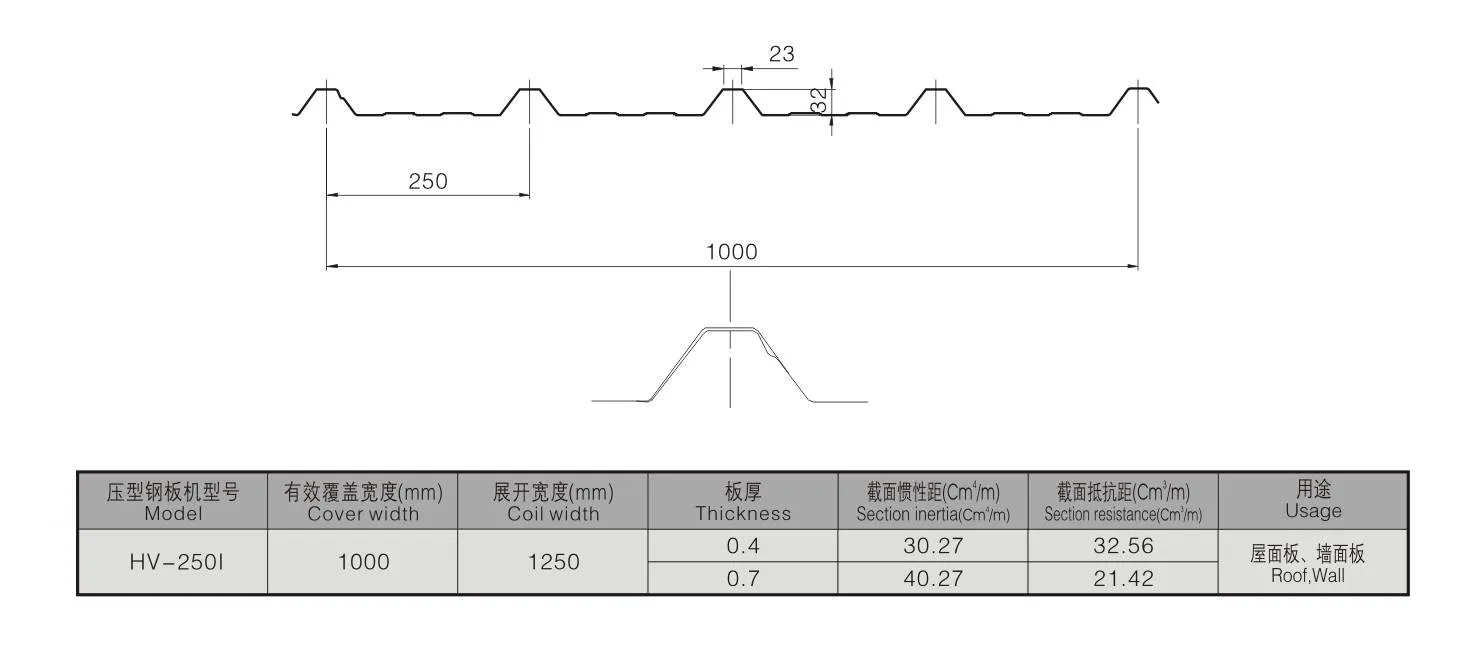

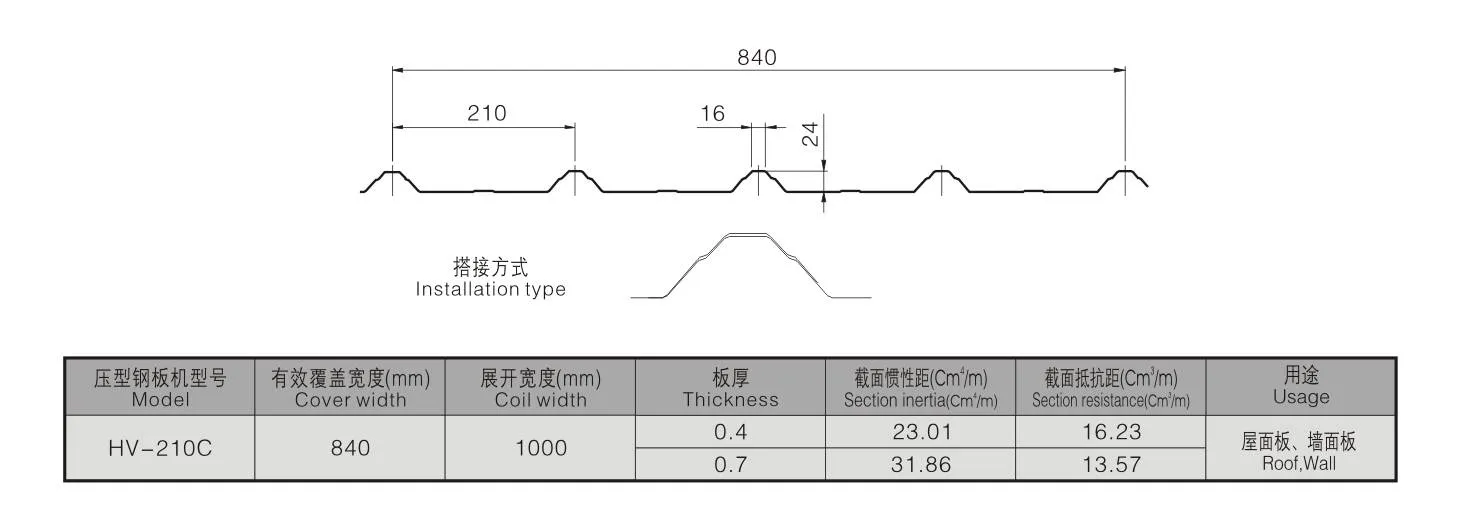

IBR roof panels are used for industrial and residential roofing. Their trapezoidal shape improves strength, drainage, and wind resistance, widely applied in Africa, Southeast Asia, and the Middle East.
How Does The Roll Forming Machine Work?
Machine Details

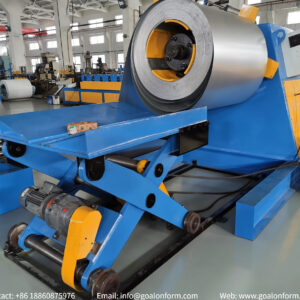

Steel Coil Decoiler
Steel coil decoiler is used to unwind metal coils smoothly for feeding into roll forming, cutting, or punching processes.
Manual decoiler is a basic and economical option, while motorized and hydraulic decoilers are also available for higher efficiency and automation:
| Power Type | Manual | Steel Coil Width | Max 1250mm |
| Loading Capacity | 5/7/10 Ton | Expanding Range | 460-50mm |
Roll Forming Machine

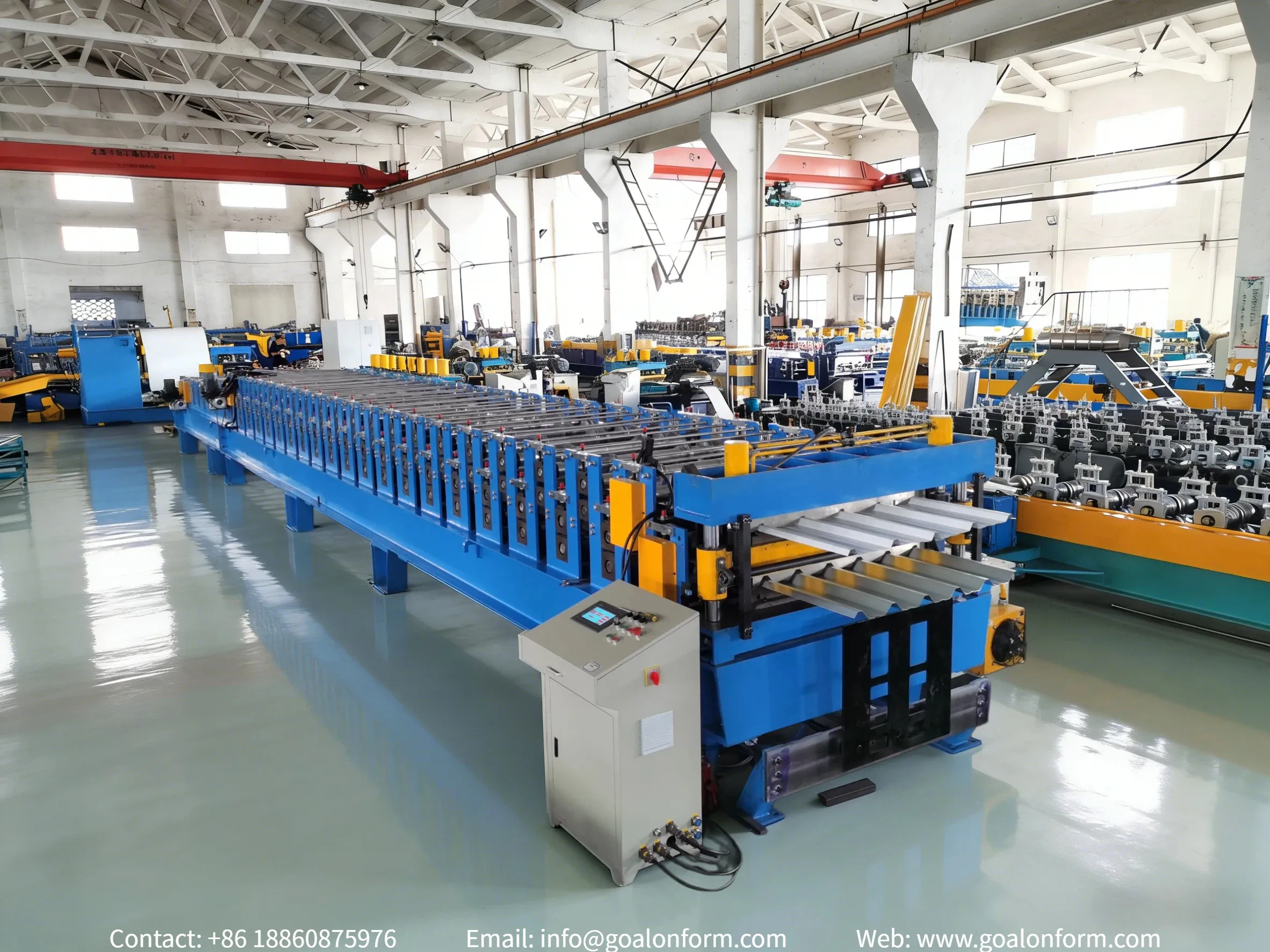

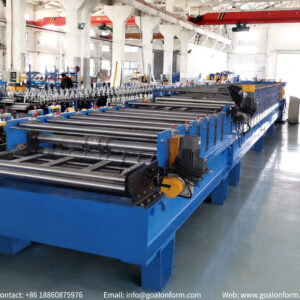

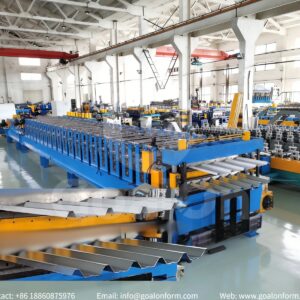

The double layer IBR roof panel roll forming machine is designed to produce two different IBR profiles on one integrated production line, improving flexibility and efficiency for roofing manufacturers.
It shares one hydraulic decoiler, forming system, and cutting unit, greatly reducing investment cost and factory space. The dual-layer structure allows quick switching between profiles with minimal downtime.
Each forming stage is precisely engineered to ensure stable profile accuracy, smooth surface finish, and consistent output quality. With hydraulic cutting and automatic stacking, the line offers reliable operation, higher productivity, and strong adaptability for varied market orders.
| Speed | 20m/min | Forming Station | 18 Stands |
| Motor Power | 7.5Kw | Shaft Diameter | 76mm, solid |
| Driving System | Chain | Roller Material | Gcr15,HRC58-62° |
| Frame Structure | Wall panel | Shaft Material | 40Cr heat treatment |
Cutting Unit
The roll forming machine is the core unit for shaping IBR roof panels, using multiple forming stations to gradually form the trapezoidal profile.
It ensures precise dimensions, smooth surface finish, stable operation, and consistent panel quality, making it suitable for continuous, high-efficiency production.
| Power Type | Hydraulic cut |
| Design Type | Double layers |
| Blade Material | Cr12MoV |
| When Cutting | Forming stops |
| Length Tolerance | ≤±1mm |
Convyor

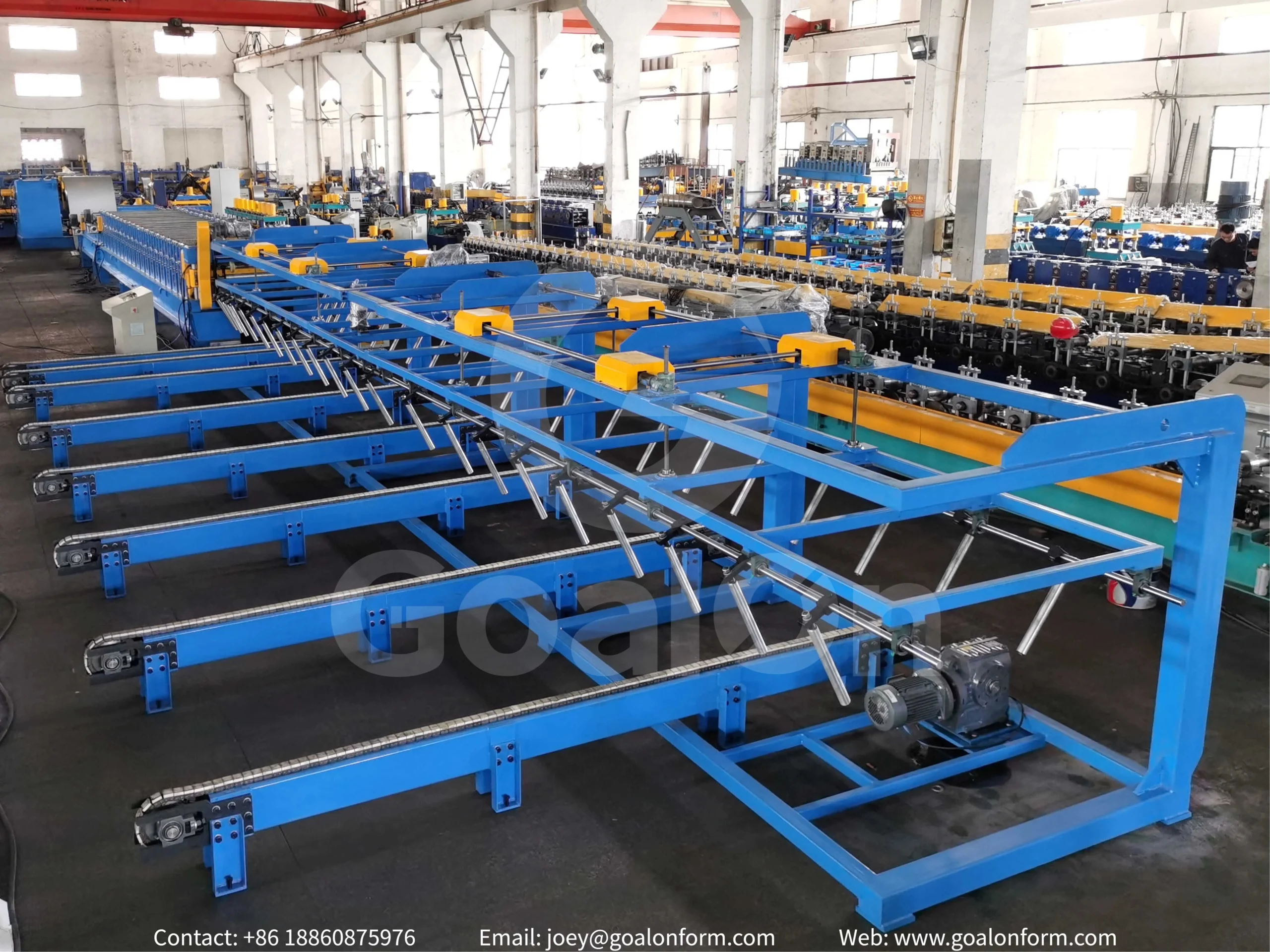

After cutting, IBR roof panels can be collected by an out table or an auto stacker, depending on production requirements.
| Item | Out Table | Auto Stacker |
| Type | Manual / Semi-manual | Fully automatic |
| Investment | Low cost | Higher initial investment |
| Labor | Requires manual handling | Reduces labor significantly |
| Efficiency | Suitable for low–medium speed | Ideal for high-speed production |
| Flexibility | High | Moderate |
| Stacking | Manual, less consistent | Automatic, neat and consistent |
| Maintenance | Simple | More complex |
| Application | Small to medium production lines | Large-scale, continuous production |
Safety Designs
Chain covers are installed to protect operators and extend chain service life. Full-machine mesh covers (slidable) provide visibility with safety. Flip-type covers ensure convenient access with enhanced protection.
Safety signs are applied to continuously alert operators.
PLC Control Cabinet & Encoder
In a cold roll forming line, the encoder works with the PLC to provide real-time feedback on material position and speed, ensuring precise feed, synchronized forming, and accurate length control for cutting and punching.
Production speed, product length, and quantity can be set on the control cabinet. The display language can be customized according to customer requirements.
Other Customization Details
The machine comes standard with a blue main color and orange accents. Other colors can be customized free of charge.
The default metal nameplate is Goalon, which can also be customized at no additional cost.
Optional Upgrade —— Flim Laminator
- Protects the panel surface from scratches during forming, cutting and stacking
- Improves finished panel appearance, especially for pre-painted and high-end roofing sheets
- Reduces rejection and rework caused by surface damage
- Provides extra protection during handling, packing and transportation
- Increases product value for premium roofing projects
Basic Services
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Free customized manuals, operationvideos, installationvideos, and remote video supportare provided.
The standard configuration operates at 15–20 m/min. Higher-end configurations can reach 30–40 m/min, and even higher speeds can be customized according to specific production requirements.
Lead times range from 30-50 days post-order, varying by customization level and supplier location. We typically require 45 days for standard machines.
Yes. After communicating with you about your requirements, we can first provide a quotation and a similar solution based on a profile that is close to your needs for your reference. Once the exact drawing becomes available, we can update the quotation and configuration accordingly at any time.
Yes. We are a professional manufacturer that produces both standard market profiles and customized profiles. We can also sign an agreement to ensure that your drawing will not be shared with other parties.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
30% deposit is paid before production, the balance paid after inspection confrmation, before shipment.
