Production Line

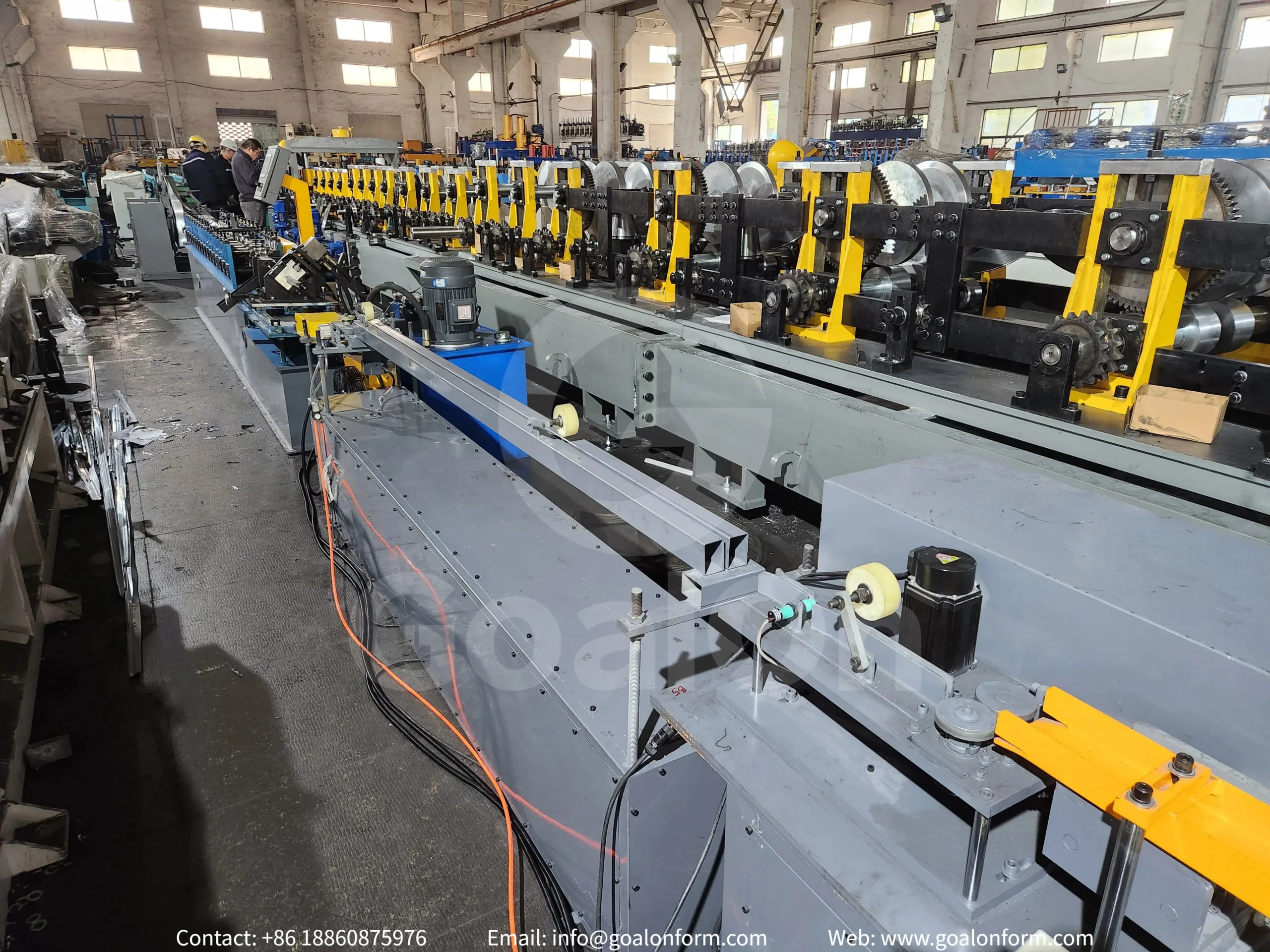

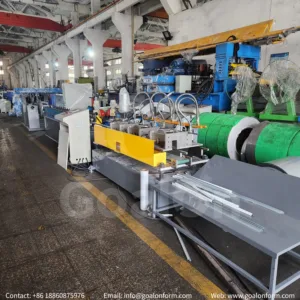

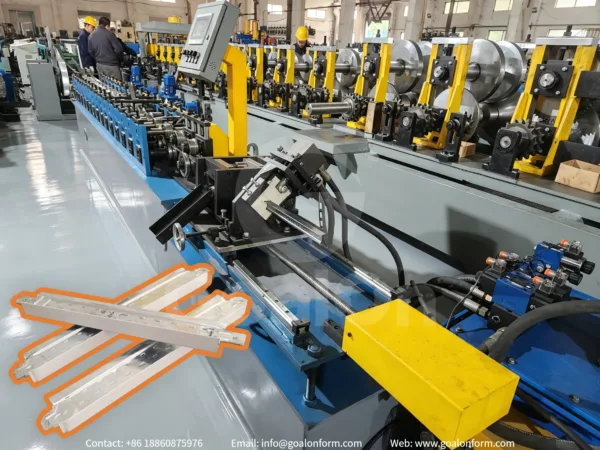

The T bar roll forming machine is a fully automatic production line designed for manufacturing suspended ceiling T-bars with continuous flying punching and cutting. It delivers high dimensional accuracy, stable profile assembly, consistent production quality, and efficient high-volume output.
- High production efficiency
- Continuous non-stop production
- Accurate punching position
- Stable profile assembly
- Reduced labor costs
- High dimensional accuracy
Every metal T bar roll forming machine can be customized with different profile sizes, punching patterns, production speeds, stacking solutions, and automation levels to match your manufacturing requirements.
Ideal for suspended ceiling manufacturers, building material factories, and companies requiring continuous, high-volume production of ceiling T-bars with consistent quality and automatic punching.
1. Flow Chart
2*Hydraulic decoiler → Guide → Roll forming machine → Flying hydraulic punch → Flying hydraulic cut → Stacking table
| 2. Basic Specifications of This Line | |||
| Speed | 20-25m/min,customizable | Operator Needed | 1-2 persons |
| Machine Frame | Wall panel | Driving System | Chains |
| Dimension | LWH 4*1.2*1.5m | Weight | 15T |
| Container | 1*20GP | Power Supply | Customizable |
| 3. Machine Components | |||
| Decoiler*1 | Roll forming machine*1 | Cutting unit*1 | PLC control cabinet*1 |
| Stacking unit*1 | Tool box*1 | Spare parts | Punching unit*1 |
*For reference only; subject to the actual machines.
Profile Information

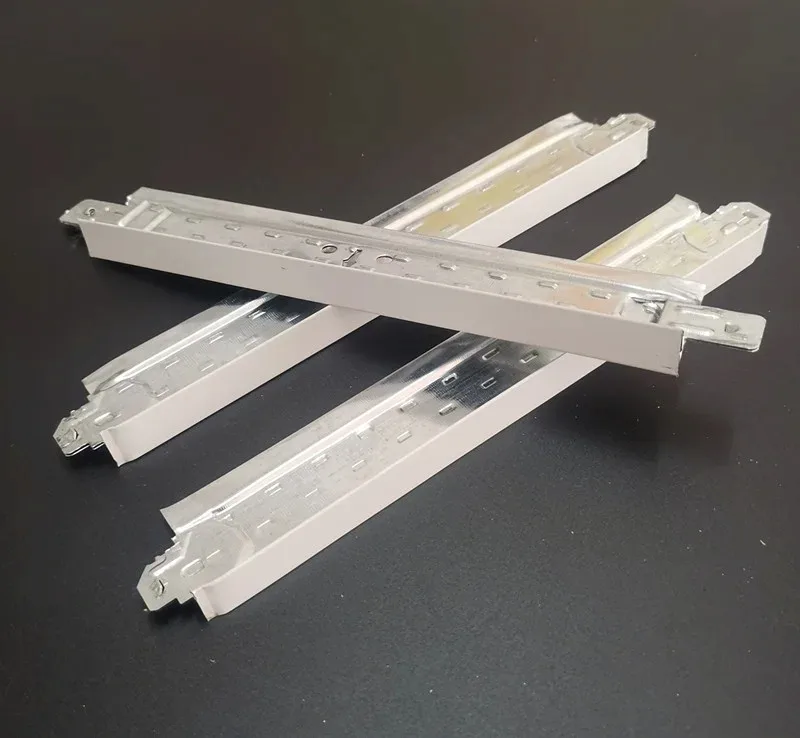

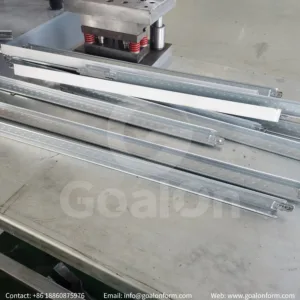

Ceiling T-bars are lightweight steel profiles with an inverted T-shaped cross section, providing strong support for suspended ceiling systems in commercial, industrial, and public buildings. They are widely used throughout the Middle East, Southeast Asia, Africa, Europe, and Latin America.
Typically manufactured from galvanized steel or pre-painted galvanized steel (PPGI), ceiling T-bars are produced by a specialized T bar roll forming machine, ensuring accurate dimensions, stable assembly performance, and excellent installation compatibility.
How Does The Roll Forming Machine Work?
Machine Details

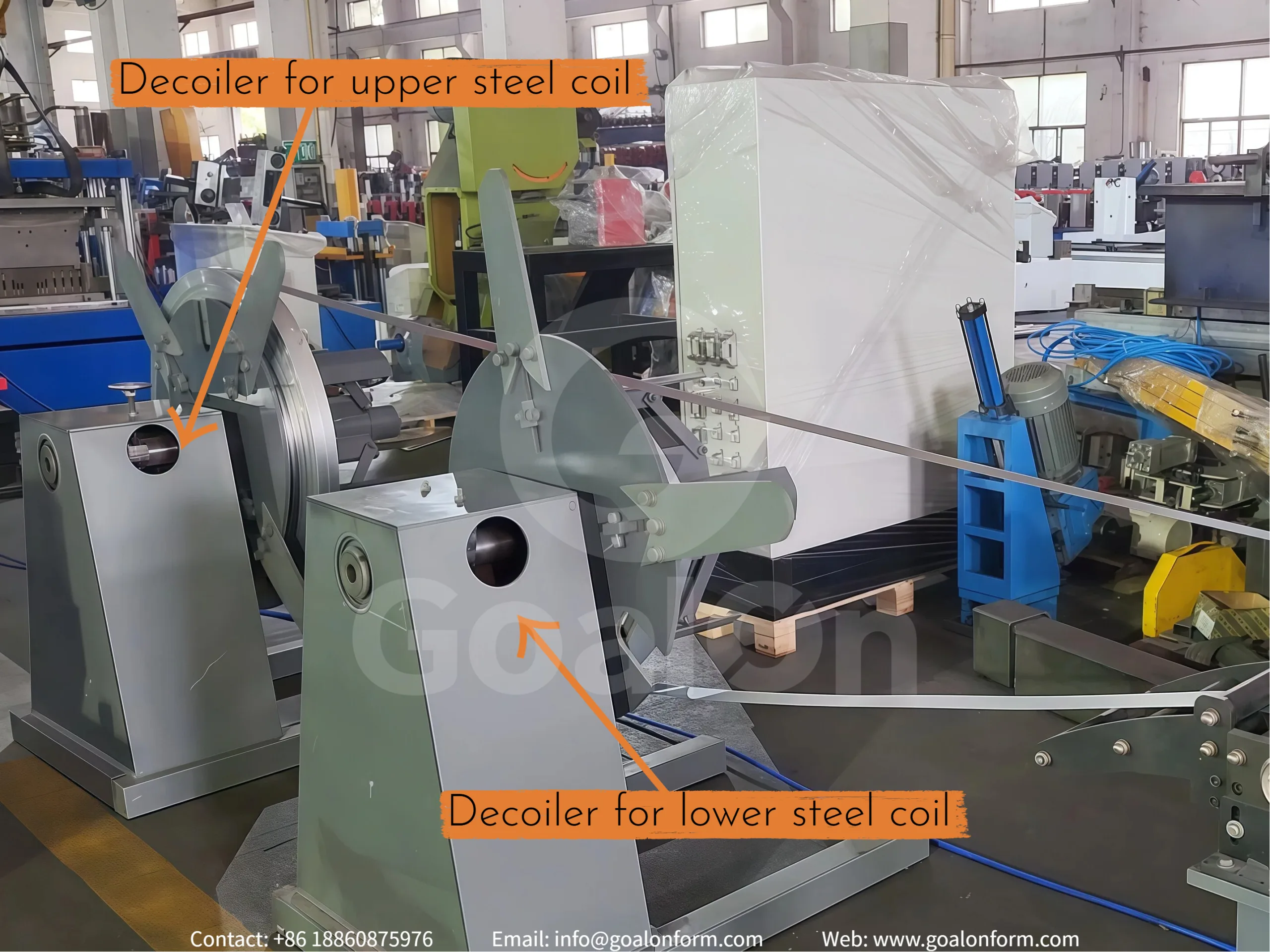

Hydraulic decoiler unit
Two hydraulic decoilers synchronize the upper and lower steel coils, supplying stable material feeding throughout production.
This dual-coil design ensures accurate profile assembly, continuous operation, and reliable forming quality for ceiling T-bar manufacturing.
| Power Type | Manual | Steel Coil Width | Max 1250mm |
| Loading Capacity | 5/7/10 Ton | Expanding Range | 460-50mm |

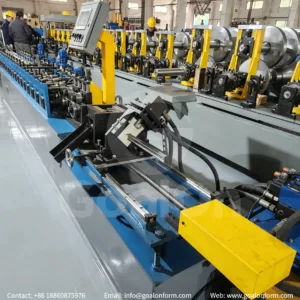

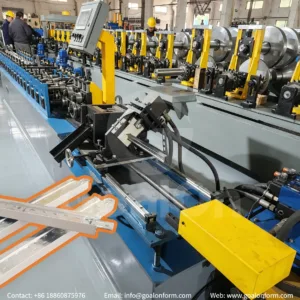

Roll Forming Machine

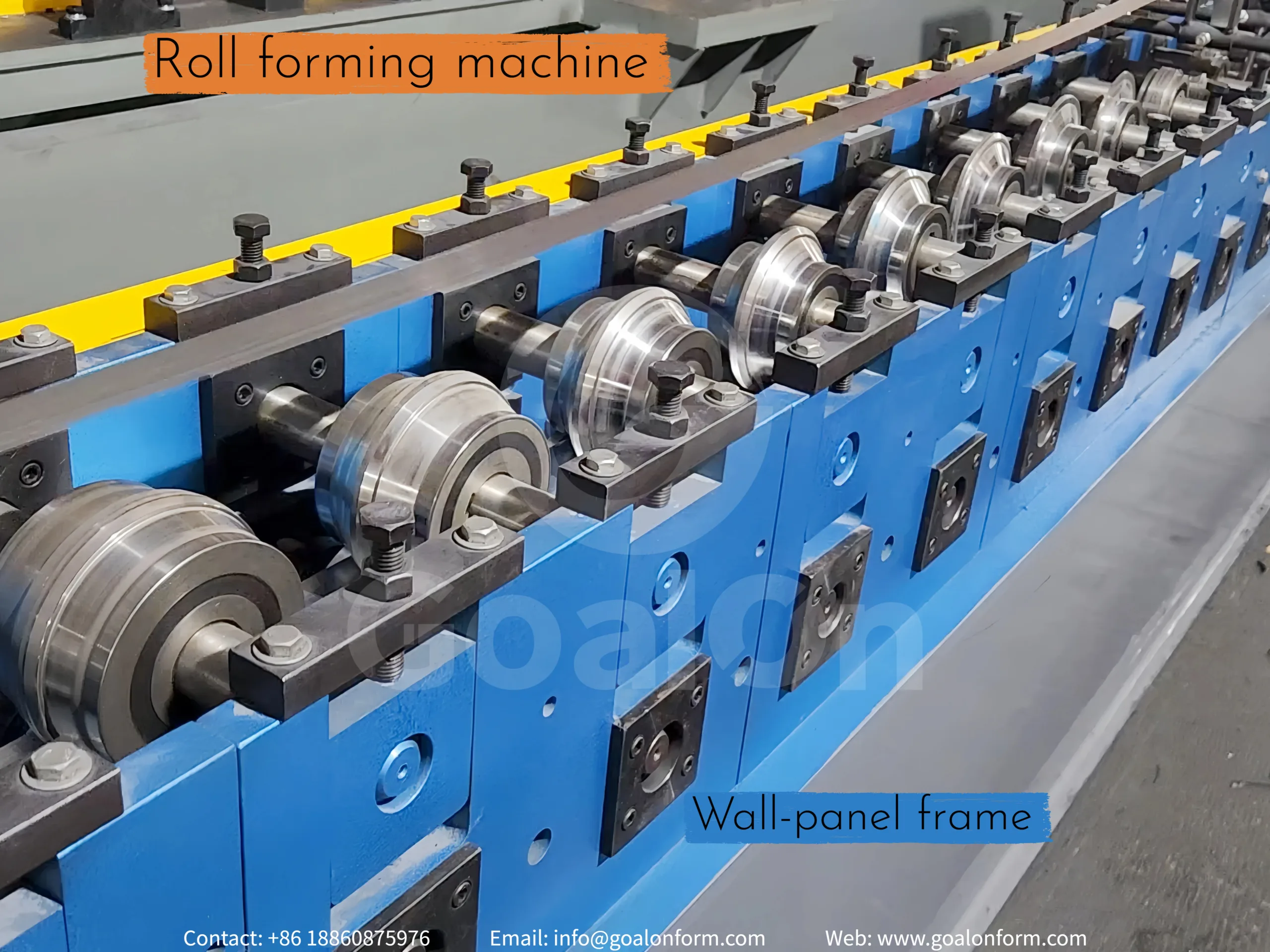

The T bar roll forming machine features a rigid wall-panel structure combined with a durable chain driving system, providing stable transmission and consistent forming accuracy.
Multiple roller stations gradually shape both steel strips into the finished profile while maintaining excellent dimensional precision, production stability, and long service life.
| Speed | 20m/min | Forming Station | 18 Stands |
| Motor Power | 7.5Kw | Shaft Diameter | 76mm, solid |
| Driving System | Chain | Roller Material | Gcr15,HRC58-62° |
| Frame Structure | Wall panel | Shaft Material | 40Cr heat treatment |

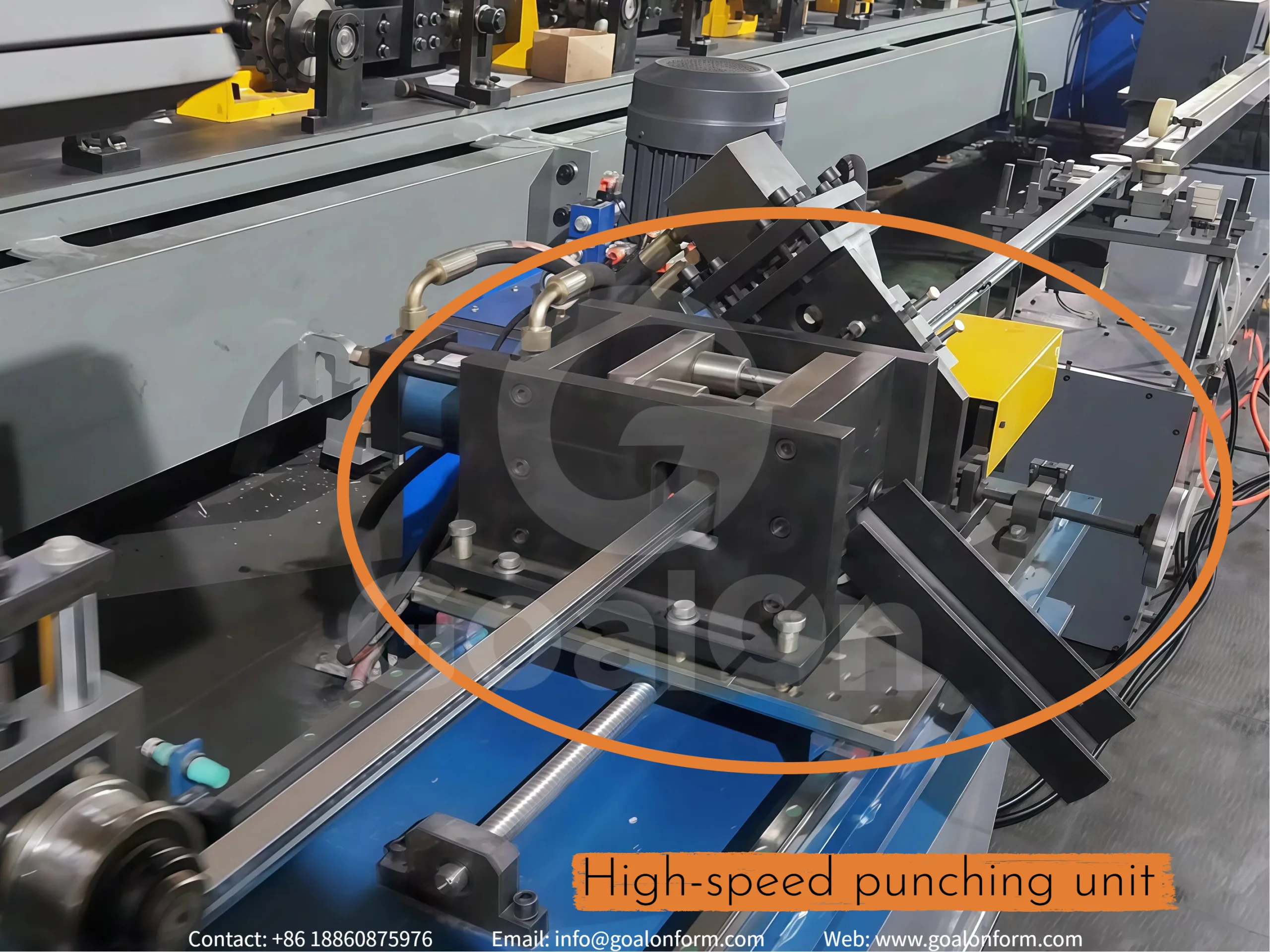

Flying hydraulic cutting & punching unit

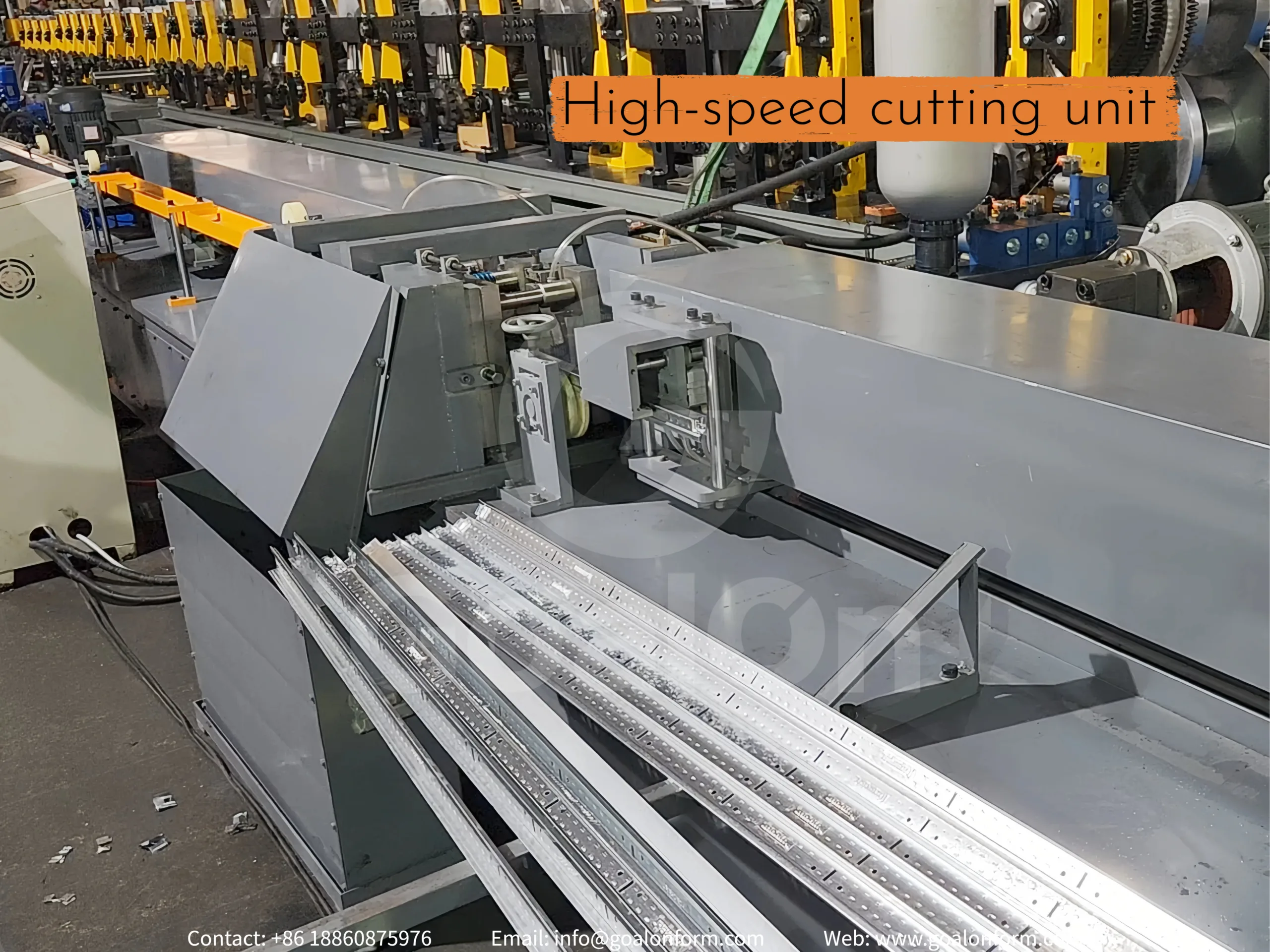

The flying hydraulic cutting unit synchronizes its traveling speed with the moving profile, allowing cutting without stopping the roll forming process. This continuous operation improves production efficiency, maintains cutting accuracy, minimizes profile deformation, and supports stable high-speed manufacturing.
PLC Control Cabinet & Encoder
In a cold roll forming line, the encoder works with the PLC to provide real-time feedback on material position and speed, ensuring precise feed, synchronized forming, and accurate length control for cutting and punching.
Production speed, product length, and quantity can be set on the control cabinet. The display language can be customized according to customer requirements.
Customizable Light Gauge Roll Forming Solutions
Our Automatic Light Gauge T Bar Roll Forming Production Line offers comprehensive customization options to meet diverse building construction requirements.
From adjustable profile dimensions to integrated perforation and embossing units, we tailor every component for high-speed continuous production.
| Material | Thickness | Production speed | Automation level |
| Perforation | Embossing | Cutting | Machine color |
| One machine for multiple profile sizes | …… | ||
Comprehensive Services & Support
Safety Designs
Optional safety covers are available to protect operators from moving components while improving workplace safety and compliance.
Warranty
2-year warranty with lifetime technical support and after-sales service.
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Besides paid on-site installation and training services, we provide installation and operation manuals, along with operation videos before shipment for guidance.
Roll Forming Machines Delivered Worldwide
From our factory to customers across the globe.
Our roll forming machines have been successfully delivered to customers across multiple countries and industries, including construction, storage systems, solar mounting, and steel fabrication.
Each project reflects our engineering expertise, manufacturing capability, and commitment to providing reliable metal forming solutions for long-term customer success.
Frequently Asked Question
No. The flying hydraulic punching system operates synchronously with the moving profile, allowing continuous production without interrupting roll forming.
Yes. Punching dies are designed according to your profile drawings, including service holes, installation holes, and special customer requirements.
No. The flying hydraulic cutting system travels with the profile, allowing continuous production without stopping the roll forming machine.
With precision roll forming, synchronized flying punching, and hydraulic cutting, the machine produces consistent profile dimensions and repeatable hole positions.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
