Production Line
High-precision ridge cap roll forming line producing matched roof ridge components with punching and cutting, ensuring seamless installation with trapezoidal roofing systems.
We customize ridge cap profiles, dimensions, punching positions, and forming structure according to different roof designs, installation standards, and regional construction requirements.
- Precise profile matching
- Integrated notch punching
- Stable chain transmission
- Compact line design
- Smooth cutting finish
- Low maintenance demand
- Consistent production output
Ideal for roofing material manufacturers, metal building suppliers, and contractors producing ridge cap profiles for trapezoidal or corrugated roofing systems in batch production.
1. Flow Chart
Decoiler → Guiding → Roll forming machine → Hydraulic cut → Out table
| 2. Basic Specifications of This Line | |||
| Speed | 15-20m/min,customizable | Operator Needed | 1-2 persons |
| Machine Frame | Wall panel | Driving System | Chains |
| Dimension | LWH 7*1.8*2m | Weight | 15T |
| Container | 1*40GP+(1*20GP) | Power Supply | Customizable |
| 3. Machine Components | |||
| Decoiler*1 | Roll forming machine*1 | Cutting unit*1 | PLC control cabinet*1 |
| Out table*2 | Tool box*1 | Spare parts | Punching unit*1 |
*For reference only; subject to the actual machines.
Profile Information

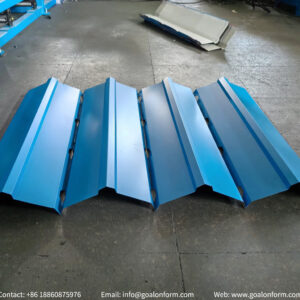

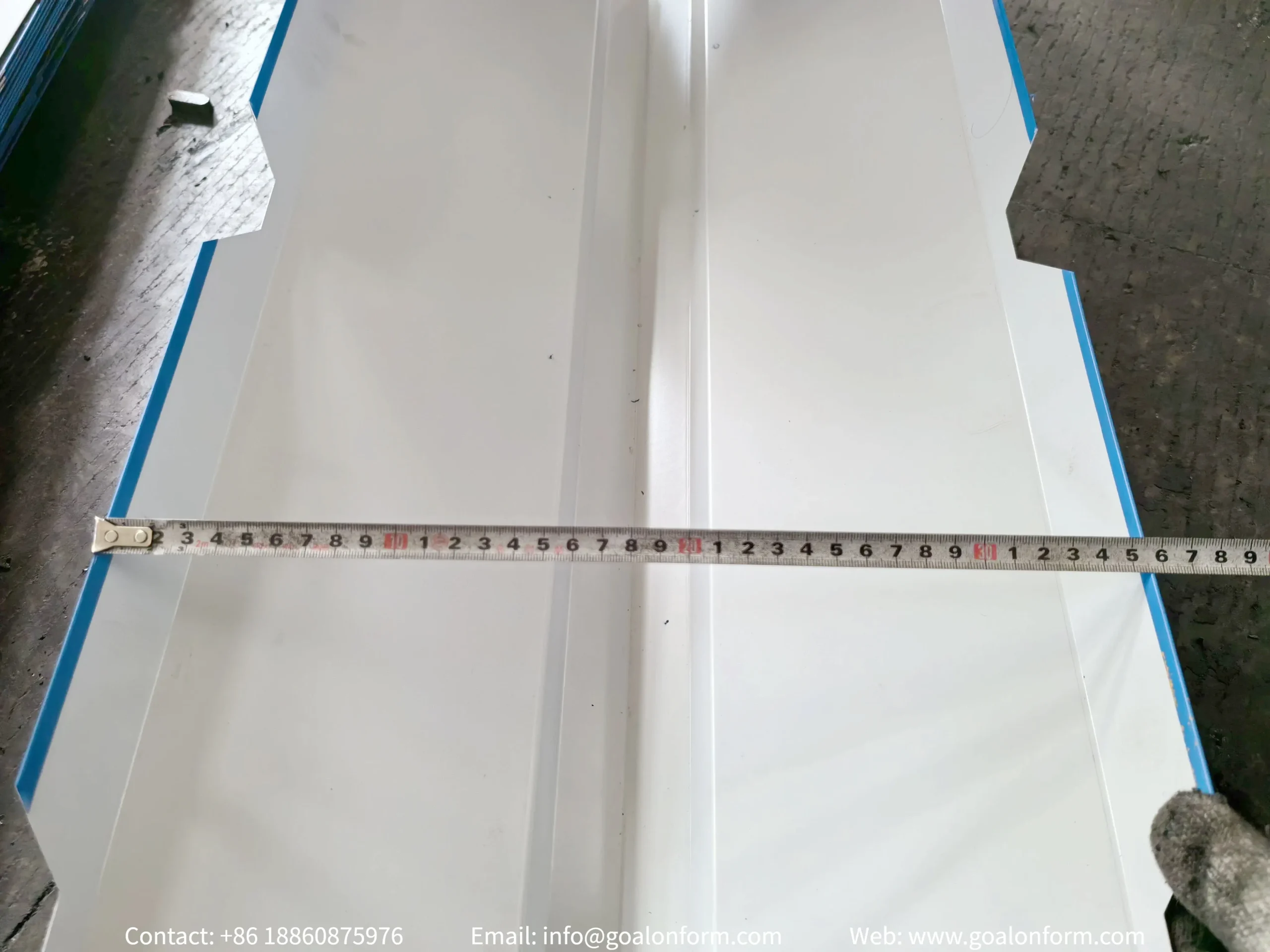

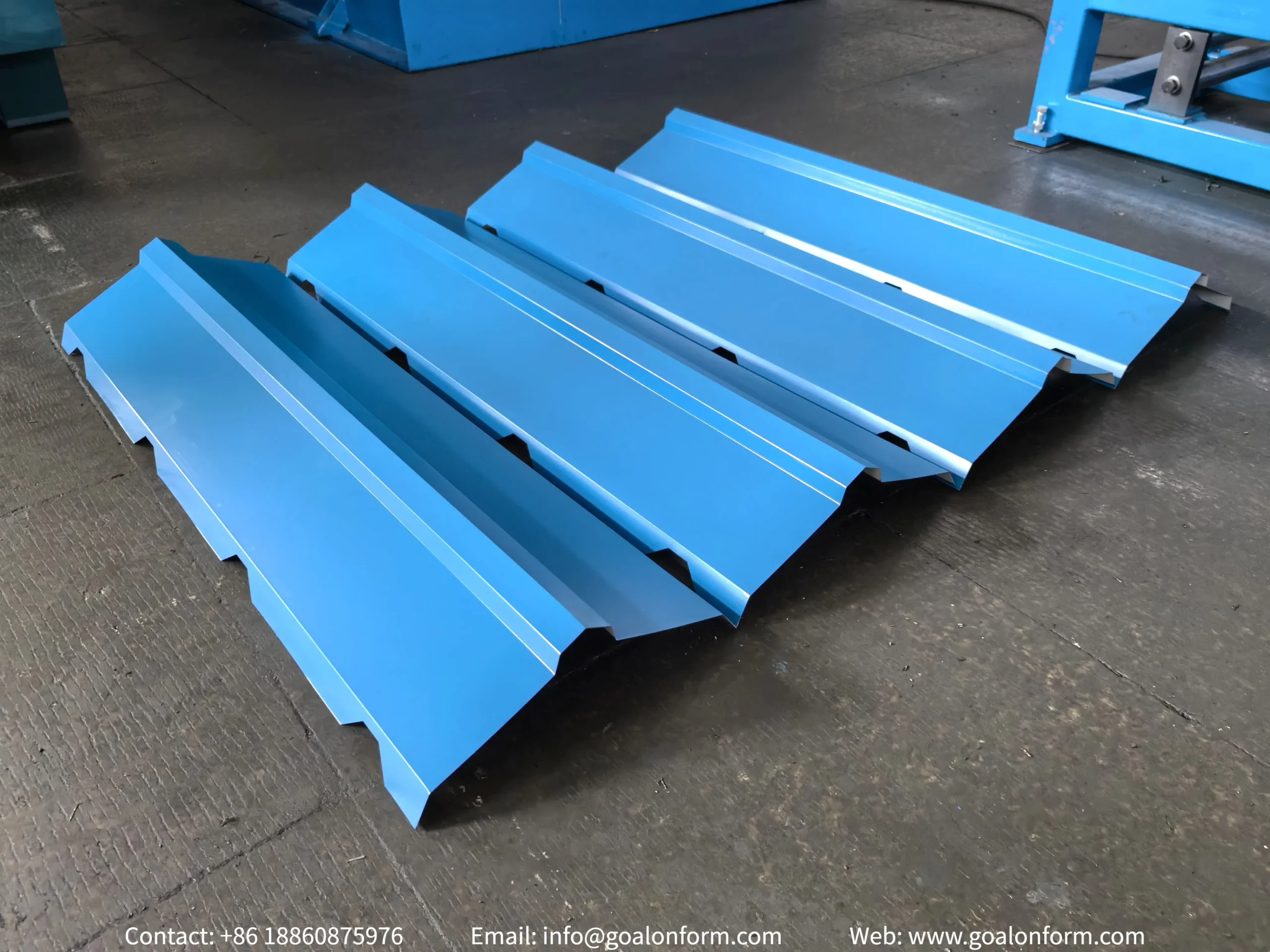

Roll type ridge cap is used to cover roof peaks. It matches IBR and corrugated roof panels, widely applied in Africa, Asia, and South America.
It typically uses 0.3–0.6mm galvanized or prepainted steel, ensuring corrosion resistance, lightweight strength, and easy forming for long-term outdoor roofing applications.
How Does The Roll Forming Machine Work?
Machine Details
Steel Coil Decoiler

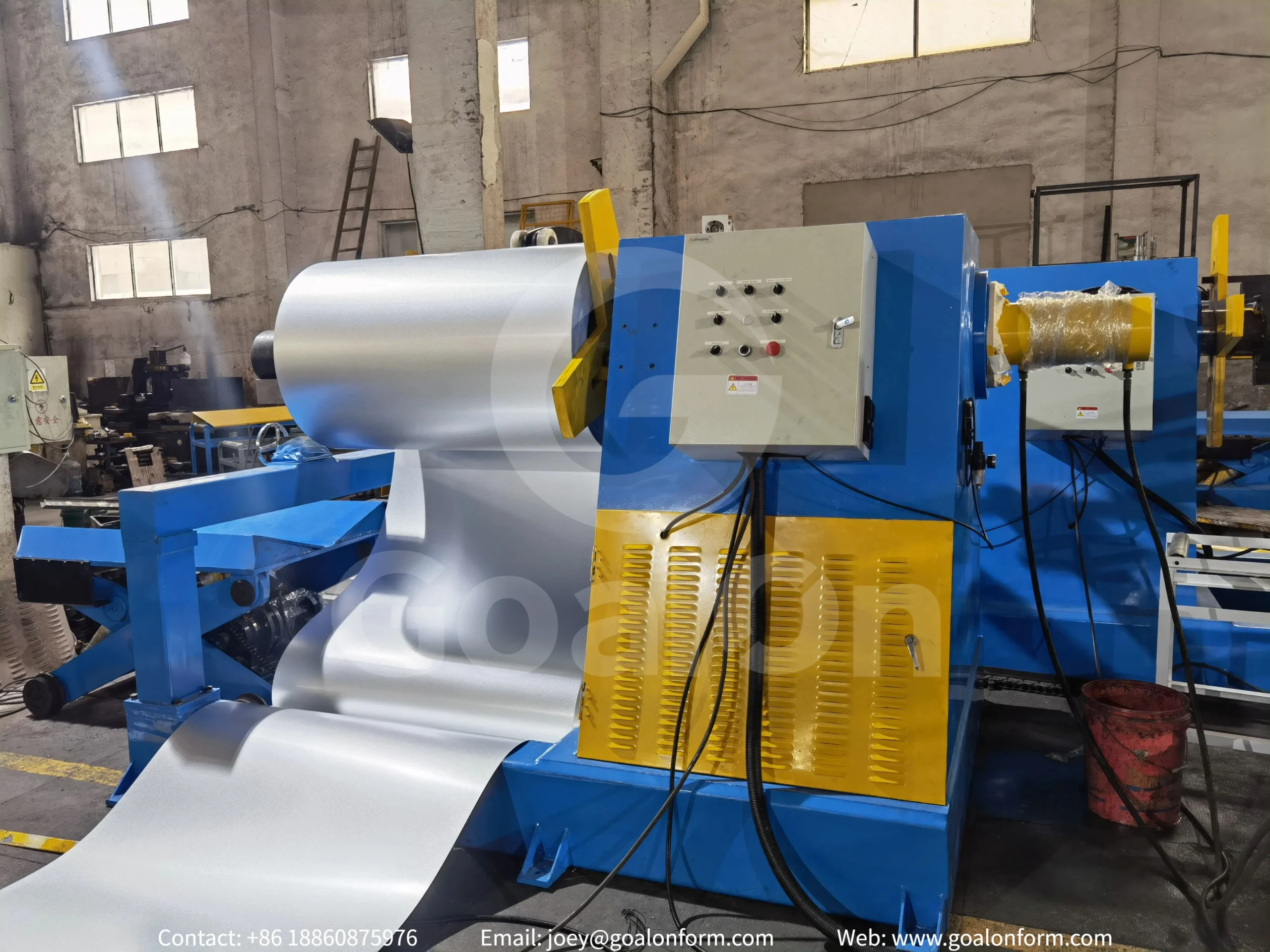

Steel coil decoiler is used to unwind metal coils smoothly for feeding into roll forming, cutting, or punching processes.
Manual decoiler is a basic and economical option, while motorized and hydraulic decoilers are also available for higher efficiency and automation:
| Power Type | Manual | Steel Coil Width | Max 1250mm |
| Loading Capacity | 5/7/10 Ton | Expanding Range | 460-50mm |

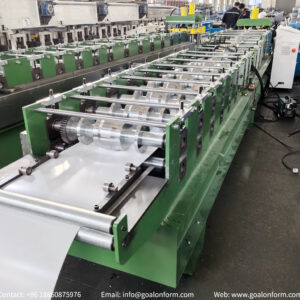

Roll Forming Machine

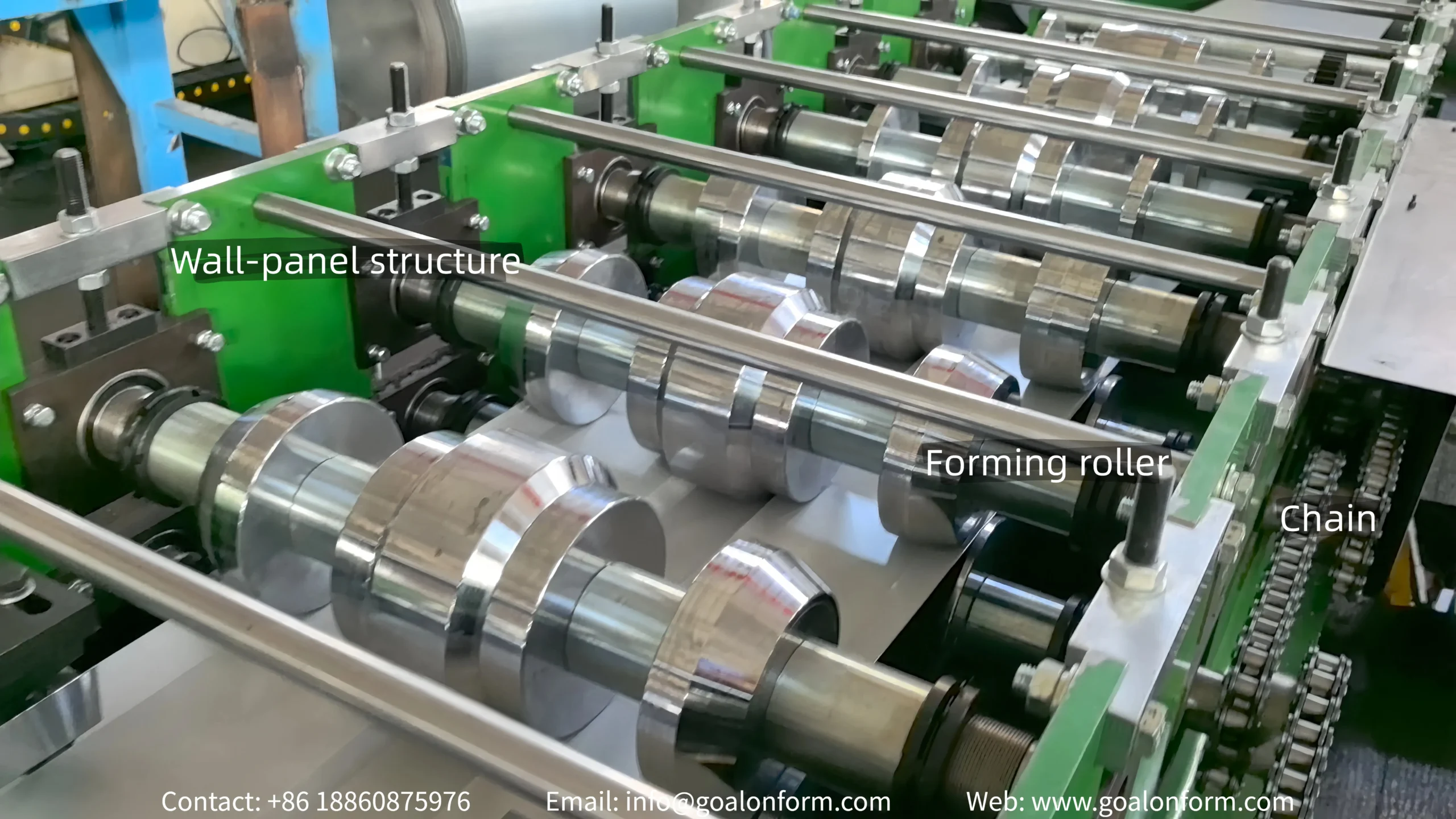

The roll forming machine uses chain-driven stations to gradually shape steel coil into ridge cap profiles with high stability. It ensures dimensional accuracy and continuous forming. Optional configurations include different motor power, roller material, and speed adjustment systems.
| Speed | 20m/min | Forming Station | 18 Stands |
| Motor Power | 7.5Kw | Shaft Diameter | 76mm, solid |
| Driving System | Chain | Roller Material | Gcr15,HRC58-62° |
| Frame Structure | Wall panel | Shaft Material | 40Cr heat treatment |

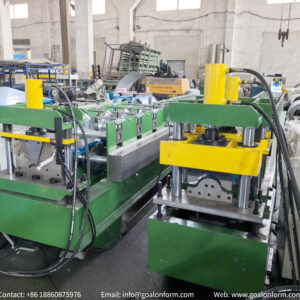

Cutting Device
This line adopts a stop-to-cut hydraulic system, pausing forming during cutting to ensure precision. Ridge cap production volume is lower than roof panels, so 15–18 m/min is sufficient.
Higher speed options are available upon request.
Safety Designs
Chain covers are installed to protect operators and extend chain service life. Full-machine mesh covers (slidable) provide visibility with safety. Flip-type covers ensure convenient access with enhanced protection.
Safety signs are applied to continuously alert operators.
PLC Control Cabinet & Encoder
In a cold roll forming line, the encoder works with the PLC to provide real-time feedback on material position and speed, ensuring precise feed, synchronized forming, and accurate length control for cutting and punching.
Production speed, product length, and quantity can be set on the control cabinet. The display language can be customized according to customer requirements.
Other Customization Details
The machine comes standard with a blue main color and orange accents. Other colors can be customized free of charge.
The default metal nameplate is Goalon, which can also be customized at no additional cost.
Basic Services
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Free customized manuals, operationvideos, installationvideos, and remote video supportare provided.
The standard configuration operates at 15–20 m/min. Higher-end configurations can reach 30–40 m/min, and even higher speeds can be customized according to specific production requirements.
Lead times range from 30-40 days post-order, varying by customization level and supplier location. We typically require 35 days for standard machines.
Yes. After communicating with you about your requirements, we can first provide a quotation and a similar solution based on a profile that is close to your needs for your reference. Once the exact drawing becomes available, we can update the quotation and configuration accordingly at any time.
Yes. We are a professional manufacturer that produces both standard market profiles and customized profiles. We can also sign an agreement to ensure that your drawing will not be shared with other parties.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
It depends on customer requirements. Edge folding improves safety by eliminating sharp edges and enhances installation quality, especially for manual handling and roofing applications.
