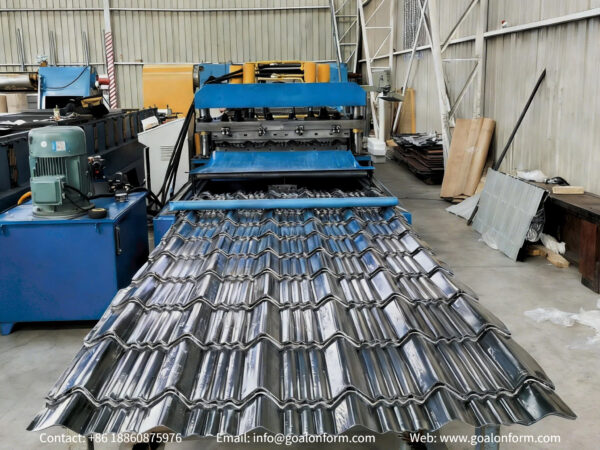

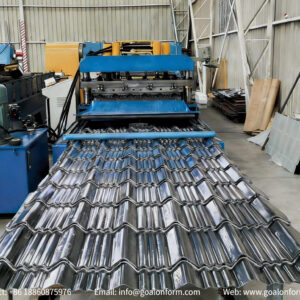

Long span corrugated roof tile roll forming line with hydraulic decoiler, continuous forming, and servo tracking press-cut ensures high-speed, precise, and stable production.
Servo tracking pressing and cutting enables continuous production with significantly higher speed
Suitable for long-span panels, improving roofing efficiency and reducing overlaps
Continuous operation reduces downtime and improves overall productivity
We provide fully customizable roll forming solutions for various roof tile profiles, including different corrugation shapes, widths, thickness ranges, and country-specific standards.
Ideal for roofing sheet manufacturers, construction material suppliers, steel structure companies, and contractors handling large-scale industrial, commercial, or infrastructure roofing projects.
1. Flow Chart

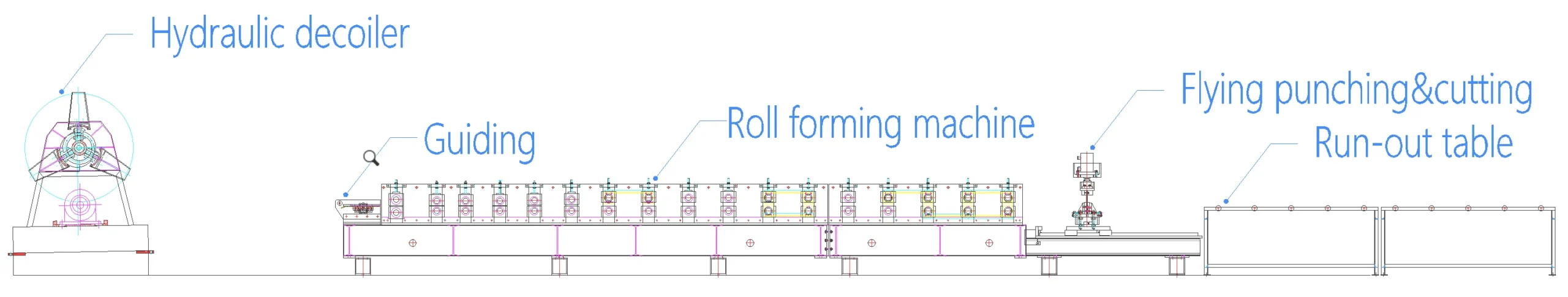

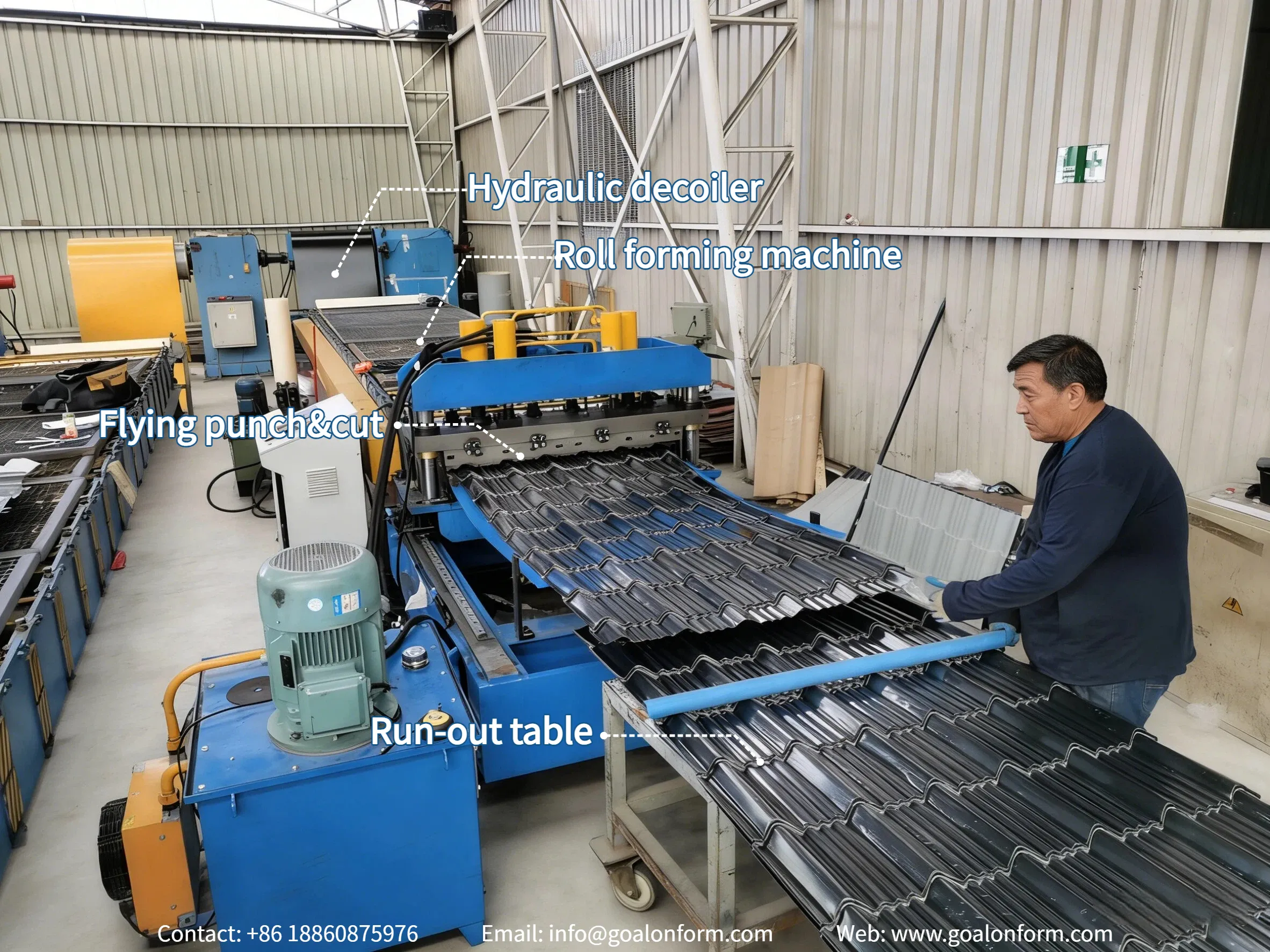

Decoiler → Guiding → Roll forming machine → Flying hydraulic punch&cut → Out table
| 2. Basic Specifications of This Line | |||
| Speed | 15-20m/min,customizable | Operator Needed | 1-2 persons |
| Machine Frame | Wall panel | Driving System | Chains |
| Dimension | LWH 7*1.8*2m | Weight | 15T |
| Container | 1*40GP+(1*20GP) | Power Supply | Customizable |
| 3. Machine Components | |||
| Decoiler*1 | Roll forming machine*1 | Cutting unit*1 | PLC control cabinet*1 |
| Out table*2 | Tool box*1 | Spare parts | Punching unit*1 |
*For reference only; subject to the actual machines.

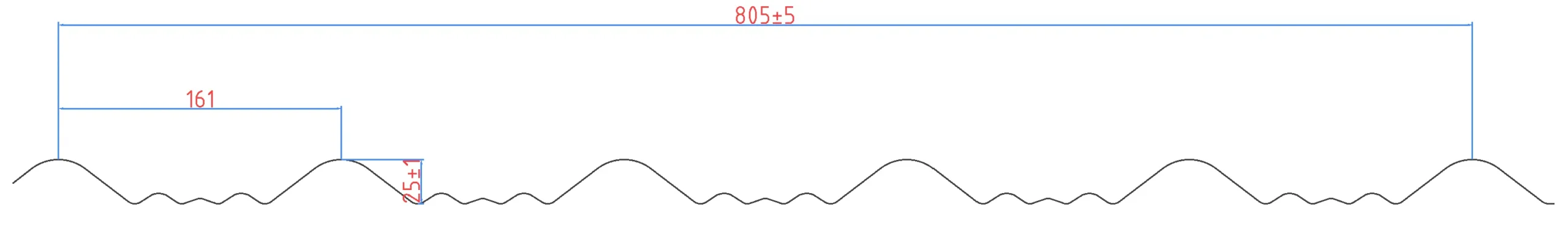

Profile Information

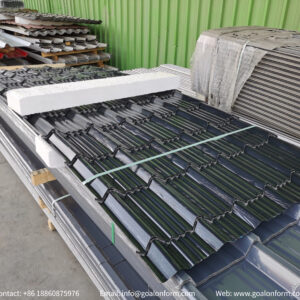

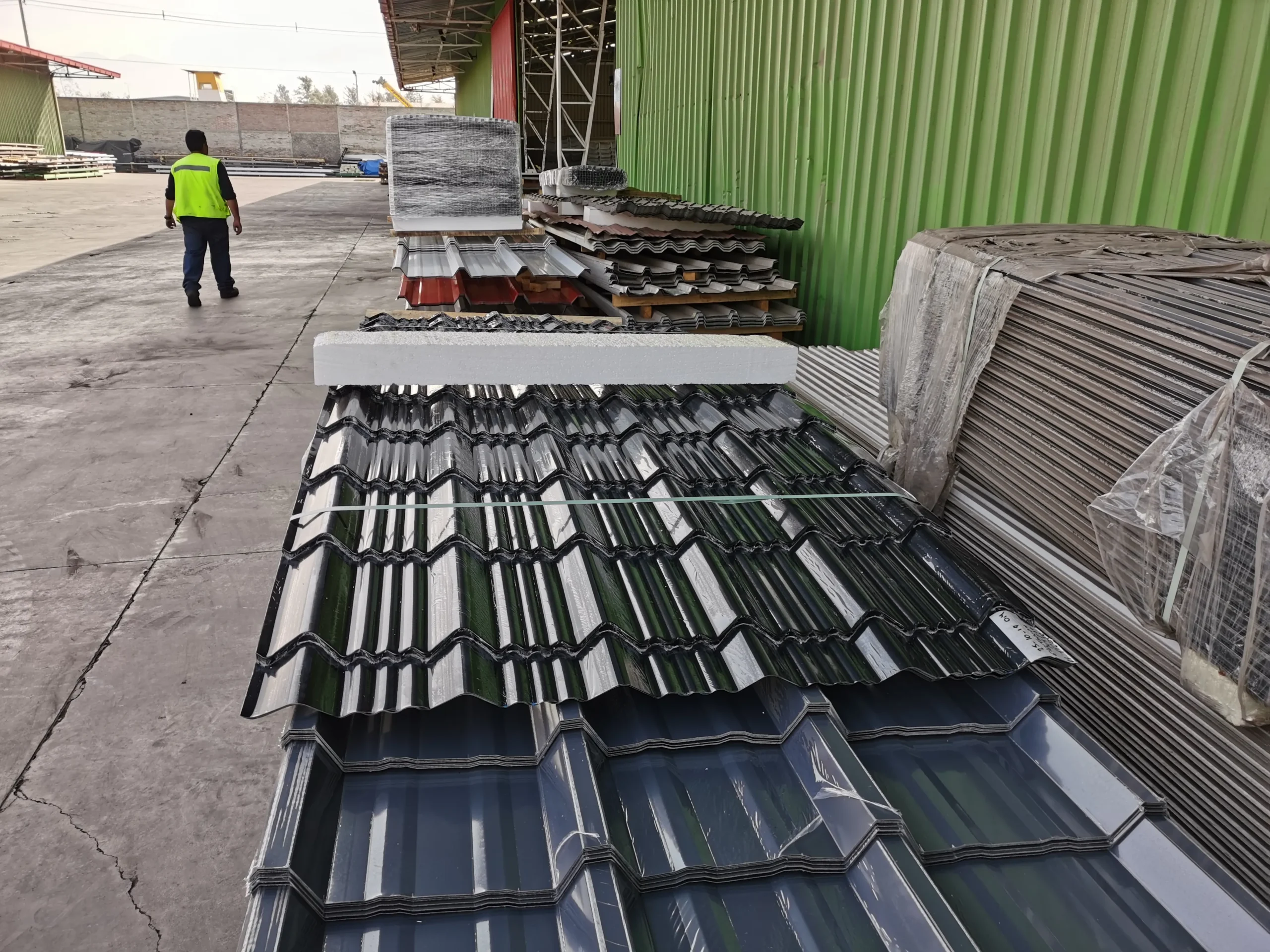

The long span corrugated roof tile panel is used for industrial buildings, warehouses, and steel structures. Its continuous corrugated shape improves strength, drainage, and reduces panel overlap.
It is widely used in Southeast Asia, Africa, the Middle East, and South America.
How Does The Roll Forming Machine Work?
Machine Details
Steel Coil Decoiler
Steel coil decoiler is used to unwind metal coils smoothly for feeding into roll forming, cutting, or punching processes.
Manual decoiler is a basic and economical option, while motorized and hydraulic decoilers are also available for higher efficiency and automation:
| Power Type | Manual | Steel Coil Width | Max 1250mm |
| Loading Capacity | 5/7/10 Ton | Expanding Range | 460-50mm |
Roll Forming Machine

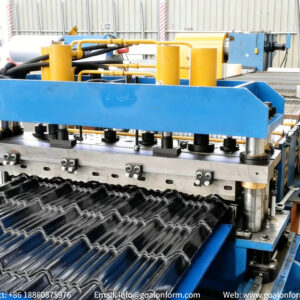

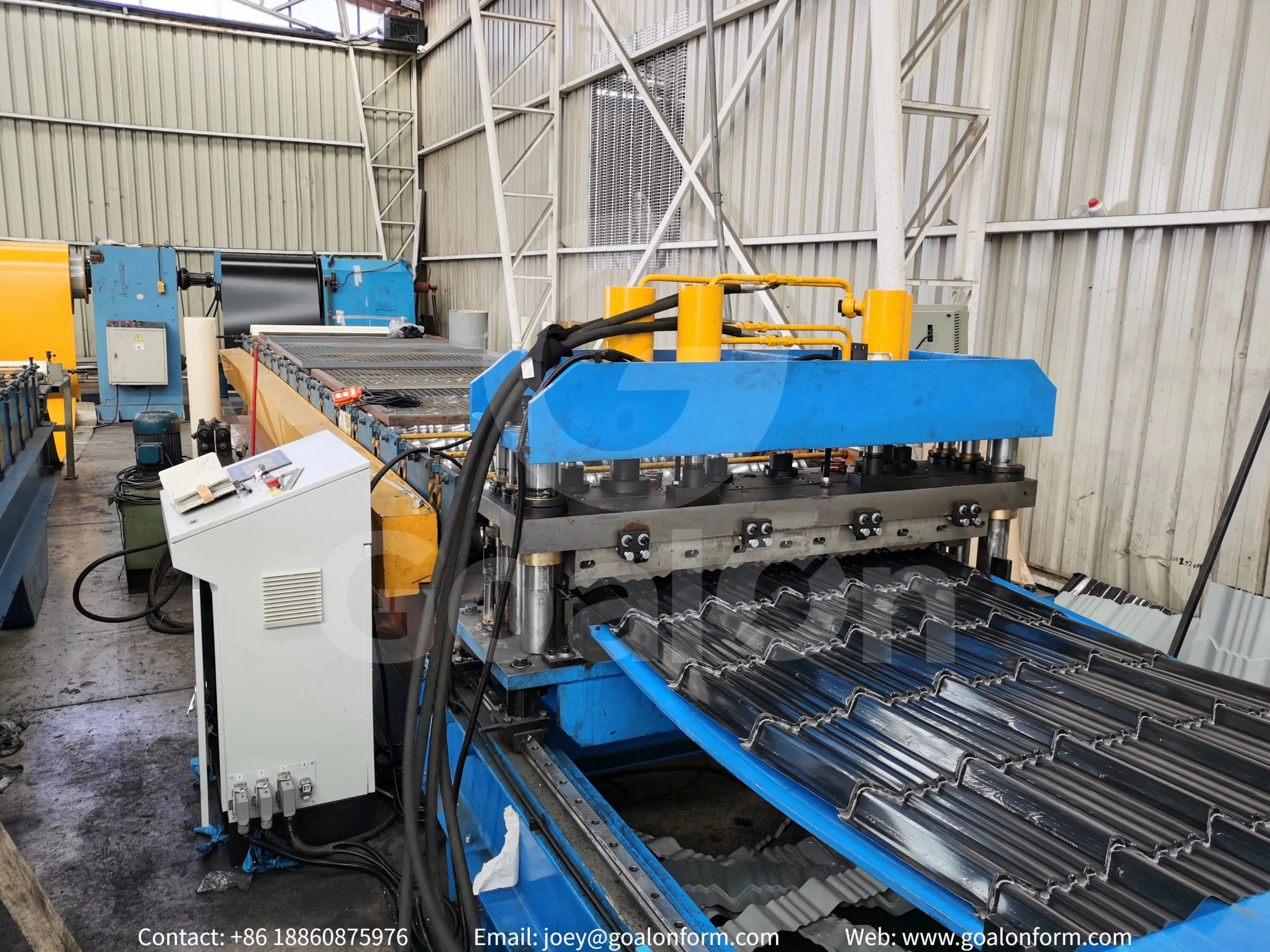

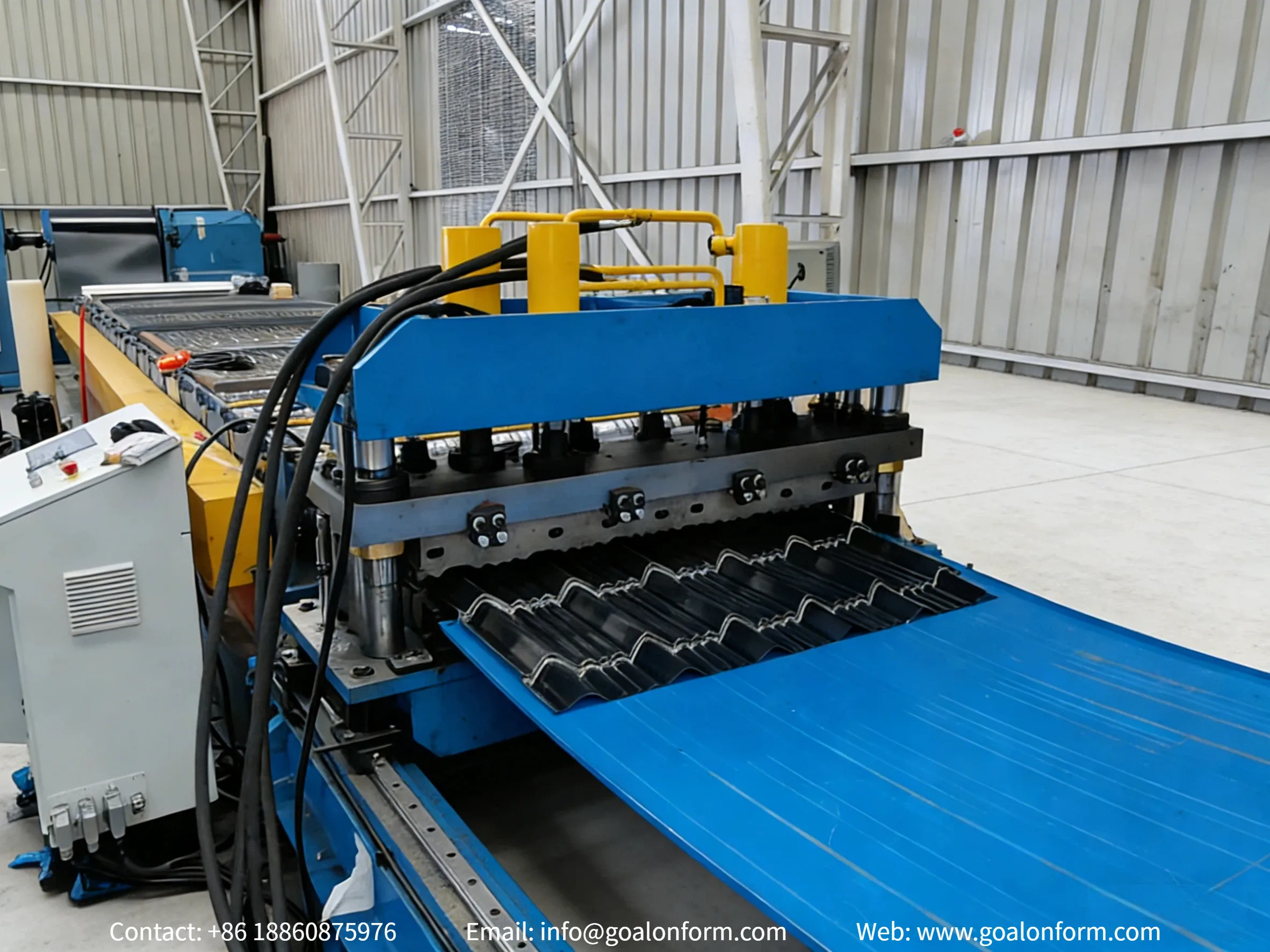

The roof tile roll forming machine converts metal coils into corrugated roof tile profiles with stable quality and high efficiency.
Through multiple roll forming stations, the sheet is gradually shaped into the required profile, ensuring accurate dimensions, smooth surface, and no material damage.
It supports continuous operation with stable performance, suitable for large-scale roofing production.
| Speed | 25-30m/min | Forming Station | 18 Stands |
| Motor Power | 7.5Kw | Shaft Diameter | 76mm, solid |
| Driving System | Chain | Roller Material | Gcr15,HRC58-62° |
| Frame Structure | Wall panel | Shaft Material | 40Cr heat treatment |

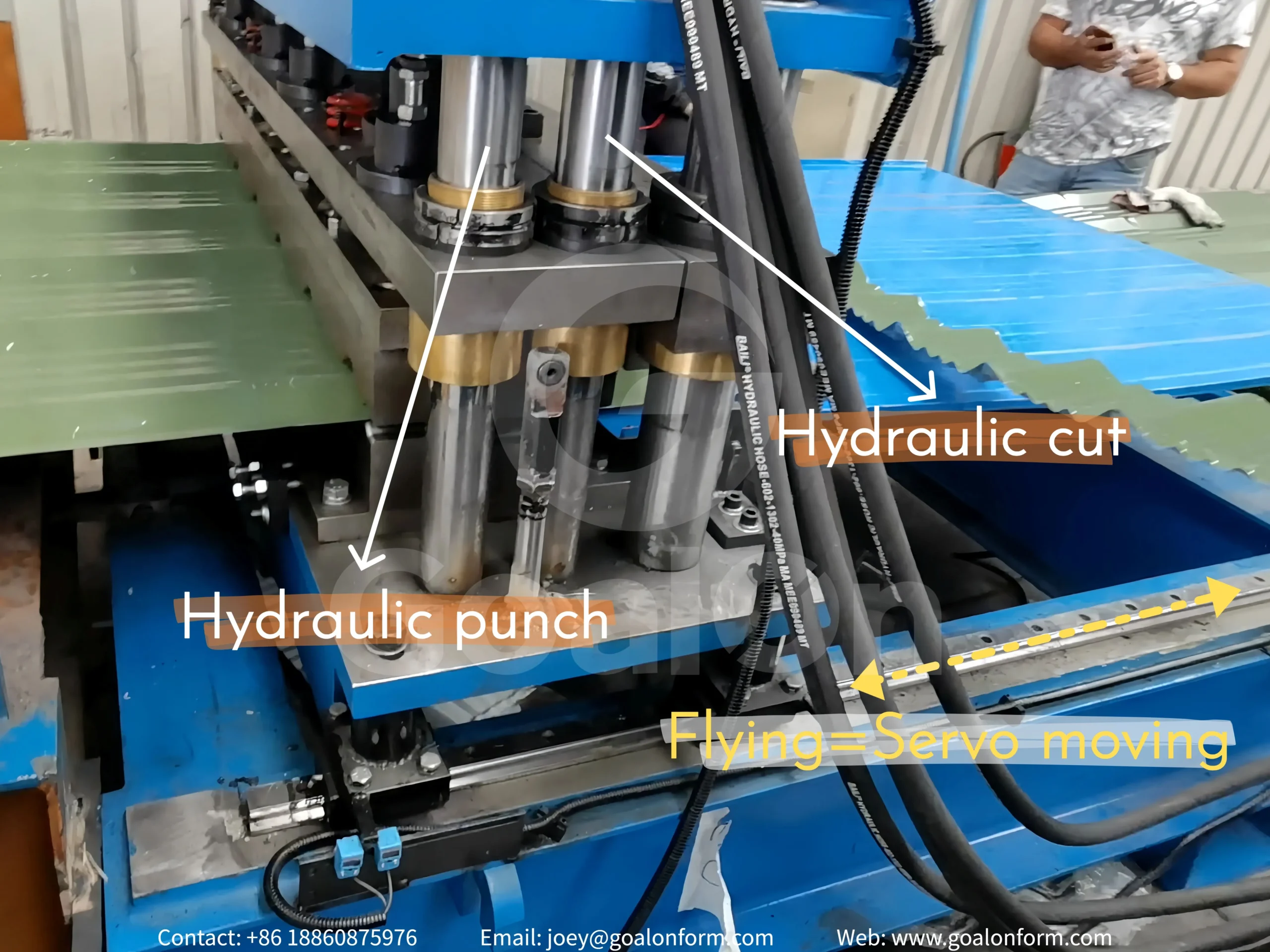

Flying Servo Hydraulic Punching & Cutting

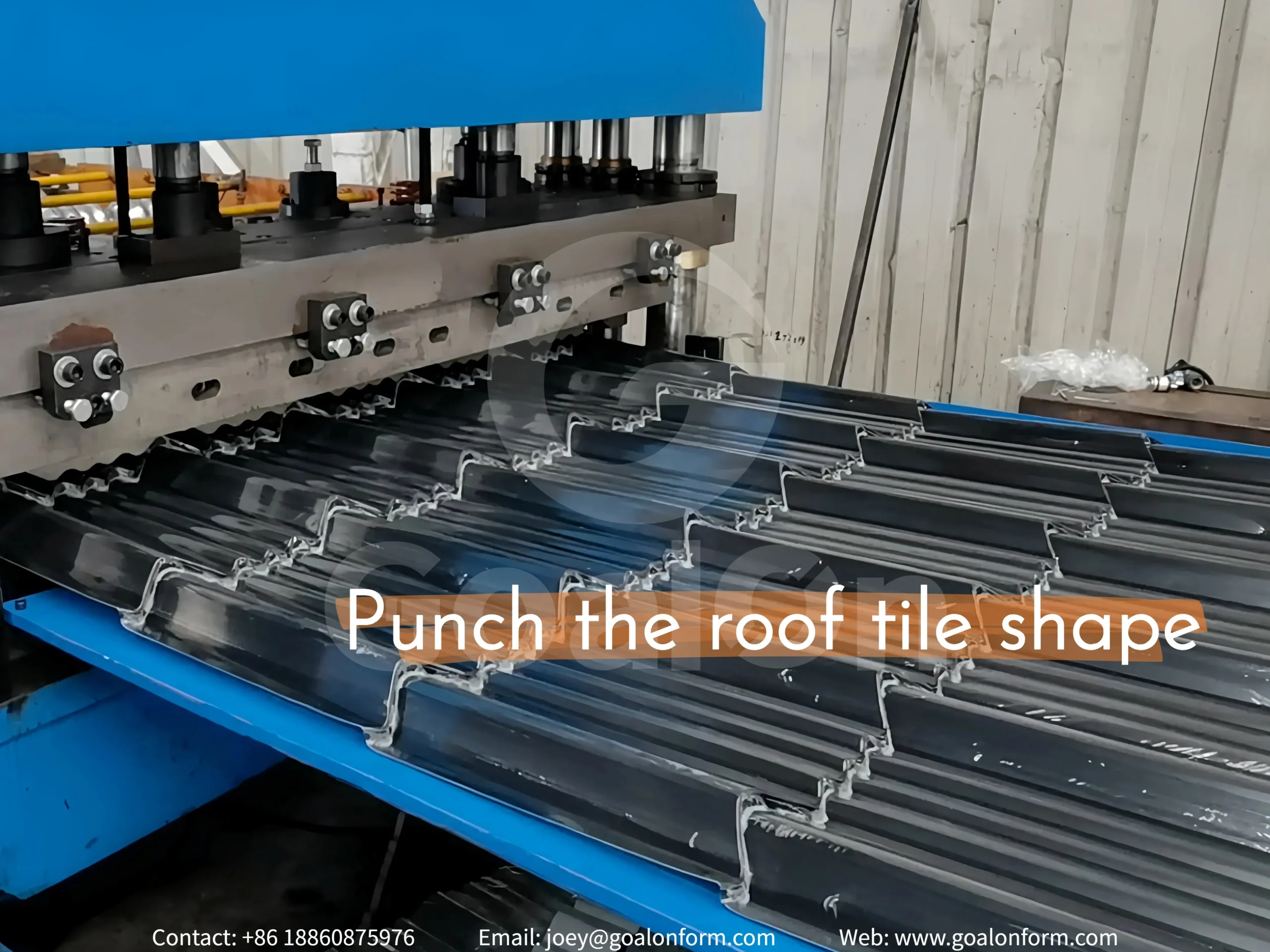

The flying servo hydraulic punching & cutting system enables continuous operation without stopping the line, matching forming speed in real time for higher efficiency.
The servo system synchronizes with panel movement, while hydraulic punching and cutting complete precise operations during motion, ensuring accurate hole positions and length control.
Compared with stop-and-cut systems, it increases output, reduces waste, and delivers clean edges with stable dimensional accuracy for high-volume production.
Convyor

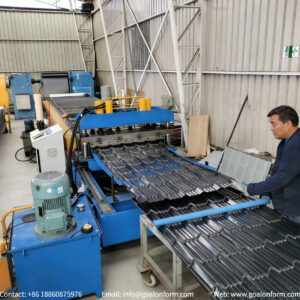

After cutting, IBR roof panels can be collected by an out table or an auto stacker, depending on production requirements.
| Item | Out Table | Auto Stacker |
| Type | Manual / Semi-manual | Fully automatic |
| Investment | Low cost | Higher initial investment |
| Labor | Requires manual handling | Reduces labor significantly |
| Efficiency | Suitable for low–medium speed | Ideal for high-speed production |
| Flexibility | High | Moderate |
| Stacking | Manual, less consistent | Automatic, neat and consistent |
| Maintenance | Simple | More complex |
| Application | Small to medium production lines | Large-scale, continuous production |
Safety Designs
Chain covers are installed to protect operators and extend chain service life. Full-machine mesh covers (slidable) provide visibility with safety. Flip-type covers ensure convenient access with enhanced protection.
Safety signs are applied to continuously alert operators.
PLC Control Cabinet & Encoder
In a cold roll forming line, the encoder works with the PLC to provide real-time feedback on material position and speed, ensuring precise feed, synchronized forming, and accurate length control for cutting and punching.
Production speed, product length, and quantity can be set on the control cabinet. The display language can be customized according to customer requirements.
Other Customization Details
The machine comes standard with a blue main color and orange accents. Other colors can be customized free of charge.
The default metal nameplate is Goalon, which can also be customized at no additional cost.
Optional Upgrade —— Flim Laminator
- Protects the panel surface from scratches during forming, cutting and stacking
- Improves finished panel appearance, especially for pre-painted and high-end roofing sheets
- Reduces rejection and rework caused by surface damage
- Provides extra protection during handling, packing and transportation
- Increases product value for premium roofing projects
Basic Services
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Free customized manuals, operation videos, installation videos, and remote video support are provided.
The standard configuration operates at 15–20 m/min. Higher-end configurations can reach 30–40 m/min, and even higher speeds can be customized according to specific production requirements.
Lead times range from 30-50 days post-order, varying by customization level and supplier location. We typically require 45 days for standard machines.
Yes. After communicating with you about your requirements, we can first provide a quotation and a similar solution based on a profile that is close to your needs for your reference. Once the exact drawing becomes available, we can update the quotation and configuration accordingly at any time.
Yes. We are a professional manufacturer that produces both standard market profiles and customized profiles. We can also sign an agreement to ensure that your drawing will not be shared with other parties.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
30% deposit is paid before production, the balance paid after inspection confrmation, before shipment.
