Production Line

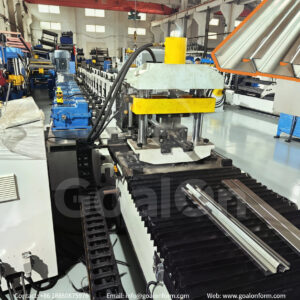

The rack cross bracing roll forming machine is designed for continuous production of punched steel cross bracing profiles used in warehouse racking systems, delivering stable forming accuracy, efficient flying punching and cutting, and reliable high-volume output.
- Continuous non-stop production
- Accurate mounting hole positioning
- Reduced manual drilling work
We can customize the machine configuration for different rack cross bracing designs, hole layouts, profile dimensions, material thickness ranges, and production speed requirements.
Ideal for warehouse racking manufacturers, storage system suppliers, and metal profile producers requiring efficient mass production of punched rack cross bracing components.
1. Flow Chart
Decoiler → Guiding → Roll forming machine → Flying hydraulic cut & punch→ Out table
| 2. Basic Specifications of This Line | |||
| Speed | 15-20m/min,customizable | Operator Needed | 1-2 persons |
| Machine Frame | Cast-iron stand | Driving System | Gearbox |
| Dimension | LWH 7*1.8*2m | Weight | 15T |
| Container | 1*40GP+(1*20GP) | Power Supply | Customizable |
| 3. Machine Components | |||
| Decoiler*1 | Roll forming machine*1 | Cutting unit*1 | PLC control cabinet*1 |
| Out table*2 | Tool box*1 | Spare parts | Punching device*1 |
*For reference only; subject to the actual machines.
Profile Information
Rack cross bracing is used to strengthen warehouse racking structures. Its lightweight angled profile improves frame stability and load resistance, with multiple sizes available for different rack systems.
Rack cross bracing profiles commonly use 1.5-3.0mm galvanized steel or cold rolled steel, providing good structural strength, corrosion resistance, and cost-effective large-scale production performance.
How Does The Roll Forming Machine Work?
Machine Details
Steel Coil Decoiler
Steel coil decoiler is used to unwind metal coils smoothly for feeding into roll forming, cutting, or punching processes.
Manual decoiler is a basic and economical option, while motorized and hydraulic decoilers are also available for higher efficiency and automation:
| Power Type | Manual | Steel Coil Width | Max 1250mm |
| Loading Capacity | 5/7/10 Ton | Expanding Range | 460-50mm |
Roll Forming Machine
The roll forming machine uses cast-iron stands and gearbox transmission to ensure stable forming pressure, precise profile shaping, and reliable long-term operation. Multiple forming stations gradually shape the steel strip into accurate rack cross bracing profiles with high consistency.
| Speed | 20m/min | Forming Station | 18 Stands |
| Motor Power | 7.5Kw | Shaft Diameter | 76mm, solid |
| Driving System | Gearbox | Roller Material | Gcr15,HRC58-62° |
| Frame Structure | Cast-iron | Shaft Material | 40Cr heat treatment |

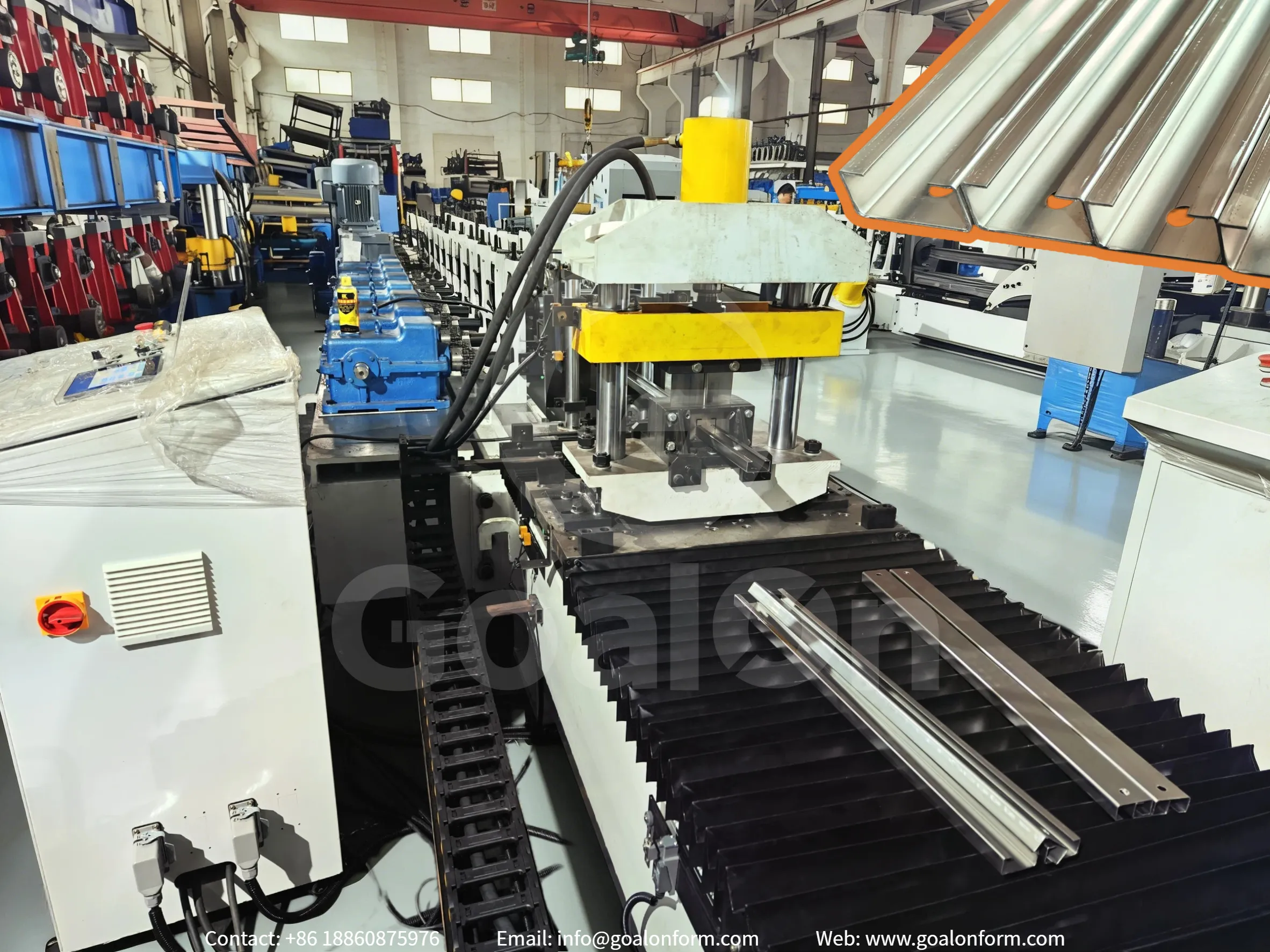

Flying Cutting & Punching Unit
The flying hydraulic cutting and punching unit performs non-stop punching and cutting synchronized with the roll forming speed. The moving cutting carriage creates relative static positioning during operation, ensuring accurate hole locations and clean cutting without stopping production, greatly improving installation efficiency and production capacity.
PLC Control Cabinet & Encoder
In a cold roll forming line, the encoder works with the PLC to provide real-time feedback on material position and speed, ensuring precise feed, synchronized forming, and accurate length control for cutting and punching.
Production speed, product length, and quantity can be set on the control cabinet. The display language can be customized according to customer requirements.
Customizable Rack Frame Roll Forming Solutions
Our High-Speed Rack Cross Brace Roll Forming Machine offers comprehensive customization options to meet diverse storage racking requirements.
From adjustable profile dimensions to integrated perforation and embossing units, we tailor every component for high-speed continuous production.
| Material | Thickness | Production speed | Automation level |
| Perforation | Embossing | Cutting | Machine color |
| One machine for multiple profile sizes | …… | ||
Comprehensive Services & Support
Safety Designs
Optional safety covers are available to protect operators from moving components while improving workplace safety and compliance.
Warranty
2-year warranty with lifetime technical support and after-sales service.
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Besides paid on-site installation and training services, we provide installation and operation manuals, along with operation videos before shipment for guidance.
Roll Forming Machines Delivered Worldwide
From our factory to customers across the globe.
Our roll forming machines have been successfully delivered to customers across multiple countries and industries, including construction, storage systems, solar mounting, and steel fabrication.
Each project reflects our engineering expertise, manufacturing capability, and commitment to providing reliable metal forming solutions for long-term customer success.
Frequently Asked Question
The standard configuration operates at 15–20 m/min. Higher-end configurations can reach 30–40 m/min, and even higher speeds can be customized according to specific production requirements.
Lead times range from 30-40 days post-order, varying by customization level and supplier location. We typically require 35 days for standard machines.
Yes. The hydraulic punching system automatically punches mounting holes online, eliminating secondary drilling work during rack installation.
Yes. We are a professional manufacturer that produces both standard market profiles and customized profiles. We can also sign an agreement to ensure that your drawing will not be shared with other parties.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
