Profile Information

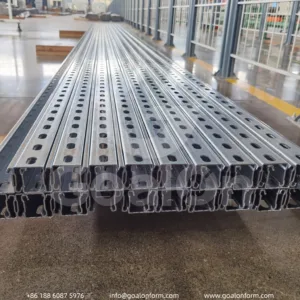

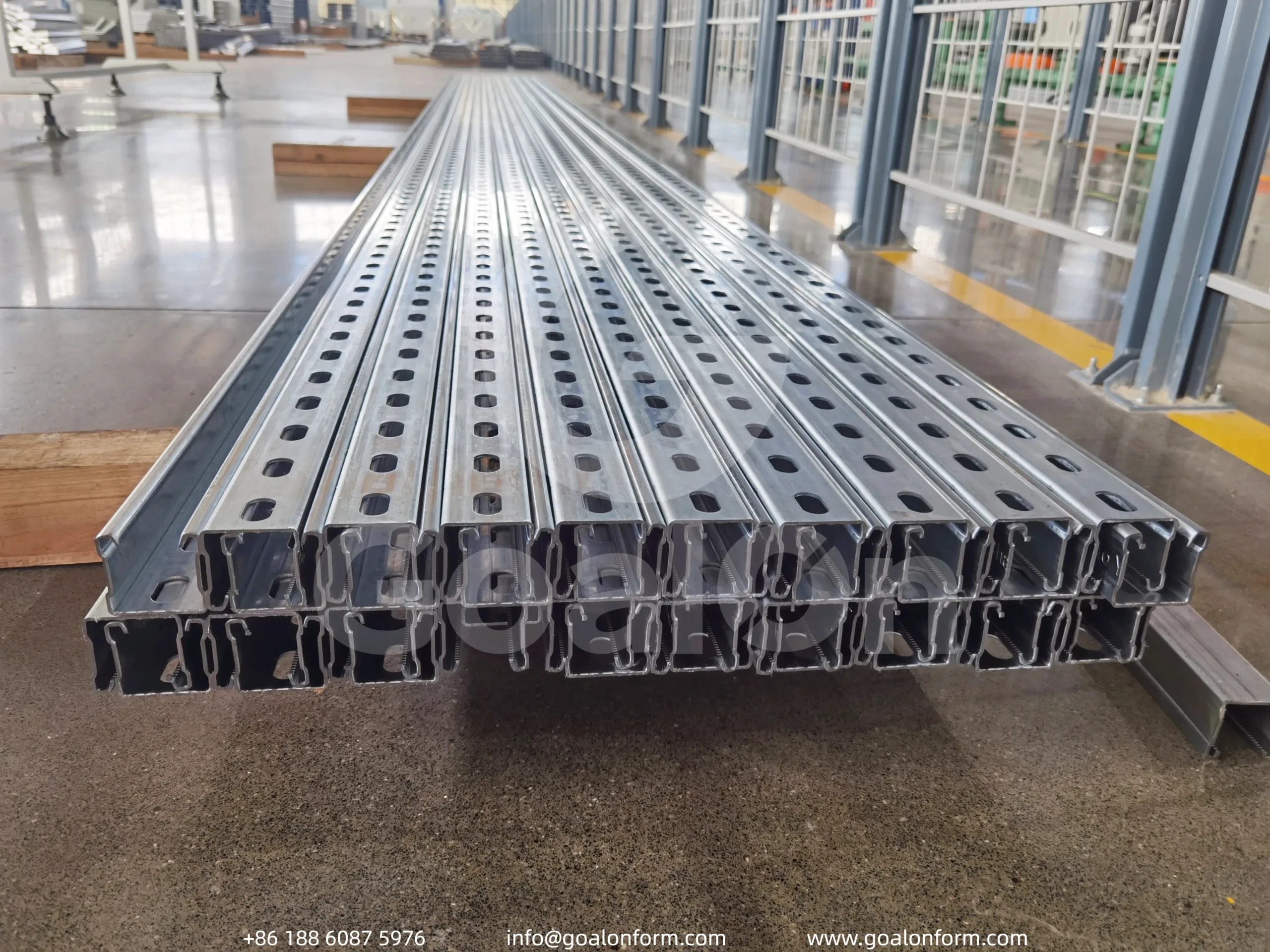

Strut channels are structural metal framing profiles used to support pipes, cables, electrical equipment, solar components, and mechanical installations. Their slotted or punched design enables flexible fastening and adjustable connections.
Commonly produced from galvanized or pre-galvanized steel, strut channels are widely used in construction and MEP projects across North America, Europe, the Middle East, and Asia. A dedicated strut channel roll forming machine forms the profile continuously to maintain dimensional consistency.
Typical Applications
| Pipe Rack Support Systems | Electrical Cable Tray Support |
| HVAC Duct Support Systems | Seismic Bracing Systems |
Profile Specification
| Profile | Strut Channel, Galvanized Strut, Unistrut Channel, C Channel, and Slotted Channel |
| Common Material | Galvanized steel / Stainless steel |
| Yield Strength | 235-345Mpa |
| Thickness | 1.5 – 2.5 mm |
| Dimension | Width1-5/8″ x Height 1-5/8″, 3-1/4″, customizable |
| Profile Features | Serrated Edges |
| Reinforcing Ribs | |
| Pre-Punched Holes |
Standard Dimension
| mm | Inch |
| 21×10 | 13/16×13/32″ |
| 21×21 | 13/16×13/16″ |
| 41×21 | 1-5/8×13/16″ |
| 41×22 | 1-5/8X7/8″ |
| 41×25 | 1-5/8×1″ |
| 41×41 | 1-5/8×1-5/8″ |
| 41×62 | 1-5/8×2-7/16″ |
| 41×82 | 1-5/8X3-1/4″ |
| Customizable | |
Production Line

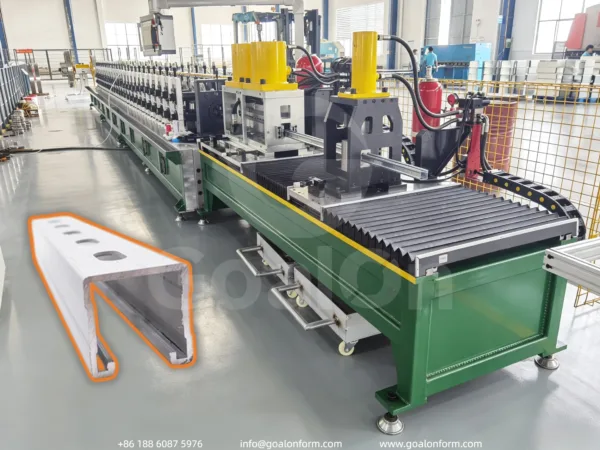

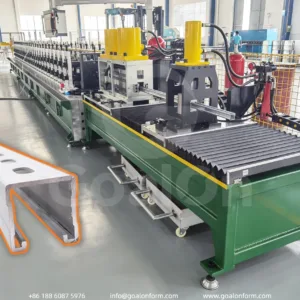

This high-efficiency strut channel roll forming machine is designed for continuous production of punched strut channels. Flying punching and flying hydraulic cutting keep the profile moving during processing, while the double-head decoiler reduces coil-change downtime for demanding production schedules.
Flow Chart

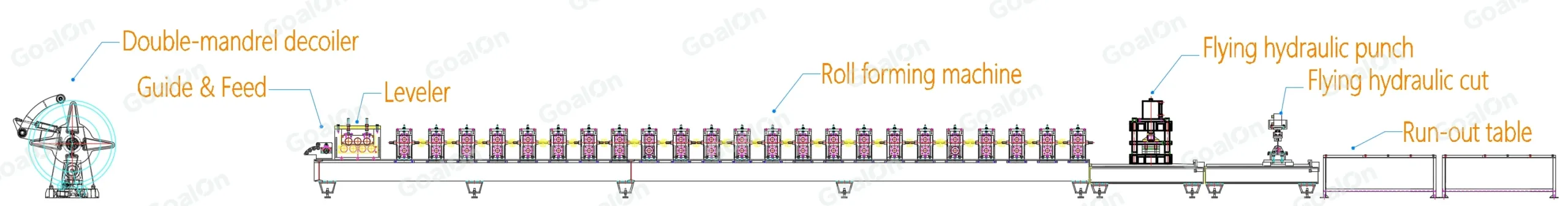

Decoiler → Guiding → Leveler → Roll forming machine → Flying hydraulic punch → Flying hydraulic cut → Out table
Factory Live Test Video 🎯
Prior to shipment, every Goalon roll forming machine undergoes strict trial testing. Below is the live footage of our roll forming production line under continuous operation.
Why Choose This Roll Forming Production Line
✅ Continuous Punching & Forming
Flying punching keeps forming running during hole production, avoiding repeated stops and improving usable production time.
✅ Non-Stop Hydraulic Cutting
The flying cutter matches profile speed during cutting, maintaining continuous forming and consistent cut lengths without stopping the line.
✅ Faster Coil Changeover
The double-head decoiler prepares a second coil in advance, reducing waiting time when the running coil is depleted.
Machine Details 🎯
Function Of Machines
♦ Double-Head Decoiler

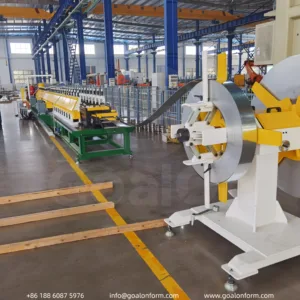

The double-head decoiler holds two steel coils, allowing the operator to prepare the next coil while the current coil is running out. This shortens coil-change time and helps maintain a more continuous production schedule.
Guide
The guiding system centers the strip before leveling and forming. Accurate strip alignment helps prevent lateral deviation, reducing the risk of profile distortion and supporting consistent dimensions throughout the strut channel roll forming machine.
Leveler
The leveler removes coil-set and residual strip curvature before forming. A flatter strip enters the forming section with improved stability, helping the **strut channel roll forming machine** produce straighter profiles with more consistent forming quality.
♦ Roll Forming Machine

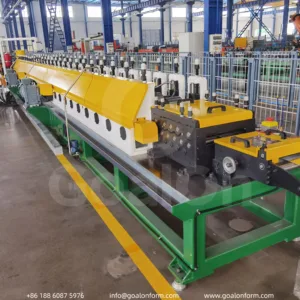

The roll forming machine uses cast-iron stands and a gear-driven transmission to progressively form the steel strip into the required strut channel profile. The rigid structure supports stable forming and accurate profile geometry during continuous production.
♦ Flying Hydraulic Punch
The integrated flying hydraulic punch performs holes or slots while the profile continues moving through the forming section. The punching unit synchronizes its movement with the line speed, avoiding unnecessary forming stops and improving production continuity.
♦ Flying Hydraulic Cut
The flying hydraulic cut separates finished strut channels without stopping the roll forming process. During cutting, the unit travels at the same speed as the profile, creating relative movement close to zero and helping maintain accurate cut lengths.
Machine Photos
Specifications Of This Roll Forming Production Line
| Component | Specification | Details |
| Decoiler | Type | Double head |
| Capacity | 5T | |
| Coil Width | Max. 500mm | |
| Expanding Range | 460–520mm | |
| Leveler | Type | 3 upper + 4 lower leveling rollers |
| Roller Material | 40Cr steel, heat treated | |
| Roll Forming Machine | Station Number | 23 Stands |
| Roller Material | GCr15, HRC 58–62° heat treatment | |
| Shaft Diameter & Material | 76mm solid shaft, 40Cr heat treatment | |
| Frame Structure | Cast-iron stand | |
| Driving System | Gearbox | |
| Formable Thickness | 1.5–2.5mm | |
| Hydraulic punching | Hole Types | blong Holes, customizable |
| Hole Position | According to Profile Drawing | |
| Die Material | Cr12MoV / SKD11 | |
| Die Hardness | HRC 58–62 | |
| Type | Punching while roll forming | |
| Cutting Device | Type | Hydraulic |
| Power | 5.5kw | |
| Blade Material | Cr12MoV | |
| Cutting Mode | Formed profile blade mold | |
| Operation Mode | Stop to cut | |
| PLC Control Cabinet | PLC | SIEMENS |
| HMI touch screen | MCGS/SIEMENS/Schneider | |
| Encoder | OMRON | |
| Language | Customizable language touch screen | |
| Functionality | Speed, length, and quantity preset with material position feedback | |
| Production Line | Total Power | Around 40kw |
| Forming Speed | 15–20 m/min | |
| Line Dimension | LWH 27 × 2.5 × 1.7m | |
| Machine Weight | 20 Ton | |
| Operator Needed | 1–2 persons |
This strut channel roll forming machine is built for 1.5–2.5 mm steel and runs at 15–20 m/min through 23 forming stands. A 5T double-head decoiler, 40Cr leveling rollers, GCr15 forming rollers, 76 mm solid shaft, SIEMENS PLC, and approximately 40 kW total power provide a robust 20-ton production line.
Customizable Roll Forming Solutions
Our Flying-Punching & Cutting Ribbed Strut Channel Roll Forming Machine is customized for your specific strut channel profile, including channel dimensions, rib pattern, serrated edges, material thickness, and punching layout.
The forming stations, tooling, punching system, cutting length, and line speed are configured according to your profile drawings. Manual changeover allows practical production of different strut channel sizes for electrical supports, HVAC systems, piping, solar mounting, and construction applications.
| Material | Thickness | Production speed | Automation level |
| Perforation | Embossing | Cutting | Machine color |
| One machine for multiple profile sizes | …… | ||
Comprehensive Services & Support
Safety Designs
Optional safety covers are available to protect operators from moving components while improving workplace safety and compliance.
Warranty
2-year warranty with lifetime technical support and after-sales service.
Professional Packing
Machines are packed in plastic film and labeled for easy identification and assembly, and secured inside the container with steel cables.
Installation Guide
Besides paid on-site installation and training services, we provide installation and operation manuals, along with operation videos before shipment for guidance.
Roll Forming Machines Delivered Worldwide
From our factory to customers across the globe.
Our roll forming machines have been successfully delivered to customers across multiple countries and industries, including construction, storage systems, solar mounting, and steel fabrication.
Each project reflects our engineering expertise, manufacturing capability, and commitment to providing reliable metal forming solutions for long-term customer success.
Frequently Asked Question
The machine can be customized for ribbed strut channels with serrated edges, different profile dimensions, hole patterns, material thicknesses, and required production specifications.
Flying hydraulic cutting allows the cutter to move synchronously with the formed profile, so roll forming can continue during cutting instead of stopping for every cut.
Yes. The hydraulic punching system can be configured according to hole size, spacing, quantity, position, and customer-specific punching patterns required for installation.
Yes. The line integrates automated feeding, leveling, punching, forming, synchronized flying cutting, and programmed control to reduce manual intervention and improve production consistency.
There is no need to worry. Our machines are designed for easy installation and operation.
Before shipment, we will finish the main assembly and testing in our factory. When the machine arrives, you only need to place it in position, connect the power supply, and it can start working.
We will also provide:
detailed installation and operation manuals
machine layout drawings
wiring diagrams
online technical support (video call / photos / videos)
If needed, we can also arrange an engineer to come to your factory to help with installation and training. Many of our customers complete installation smoothly with our online guidance.
30% deposit is paid before production, the balance paid after inspection confrmation, before shipment.
